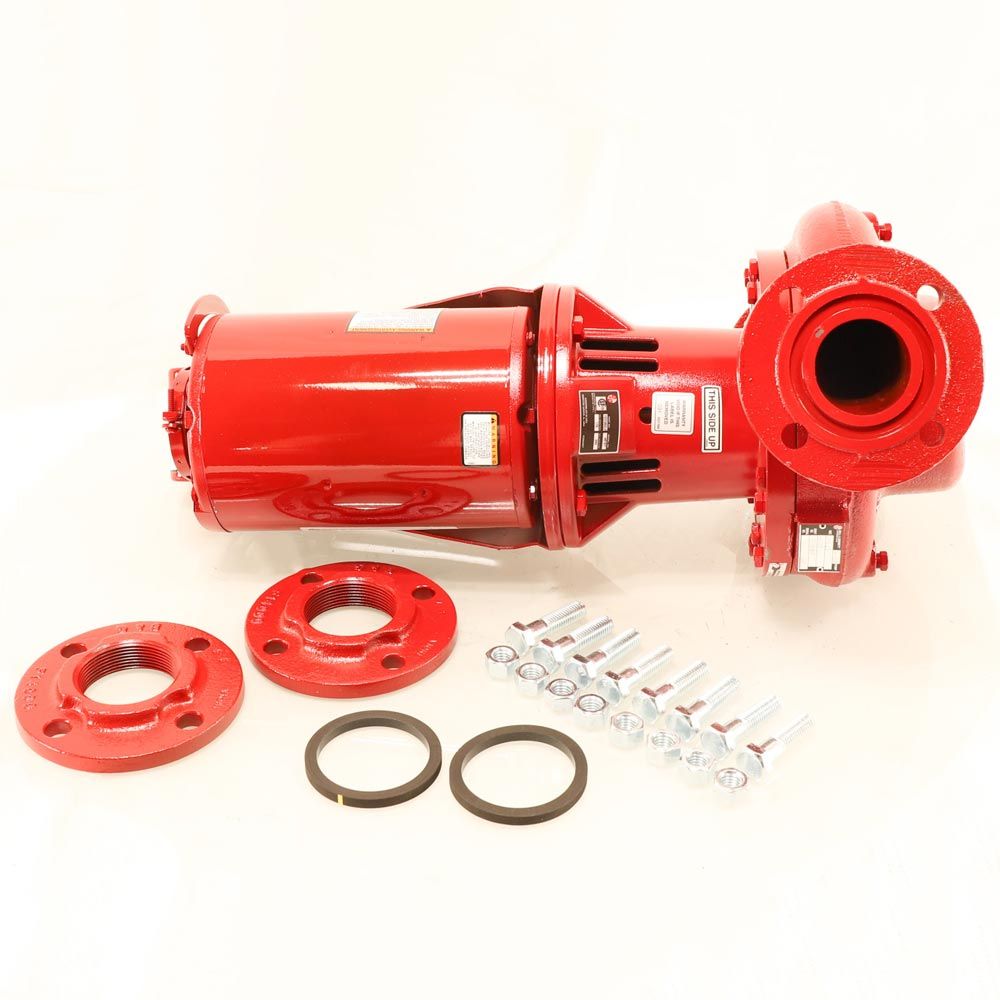

Bell & Gossett 1EF060LF e-60 Pump 208-230/460V 3/4HP

Product Description

The Bell & Gossett 1EF060LF is a robust centrifugal pump from the e-60 series, designed to handle demanding HVAC and clean water applications. This pump features a three-phase motor that operates at 208-230/460 volts and delivers a solid performance with a 3/4 horsepower. It is constructed with a durable cast iron body ensuring longevity and reliability in both commercial and residential settings.

• Optimal for both heating and cooling systems
• Capable of maintaining up to 175 psi maximum working pressure
• Supports installation flexibility with its 2 inch inlet and outlet flanged connections

Product Highlights

Features a unitized internal self-flushing mechanical seal which enhances operational efficiency and extends the pump's life. It also boasts a high-temperature threshold of up to 250 degrees Fahrenheit, making it suitable for a variety of medium to high-temperature applications.

Technical Specifications

• Brand: Bell & Gossett
• MPN: 1EF060LF
• Series: e-60
• Motor Voltage: 208-230/460V
• Phase: Three-phase
• HP: 3/4 HP
• Max Working Pressure: 175 psi
• Max Temperature: 250 degrees Fahrenheit
• Connection Size: 2 inches
• Pump Type: Centrifugal
• Material: Cast Iron
