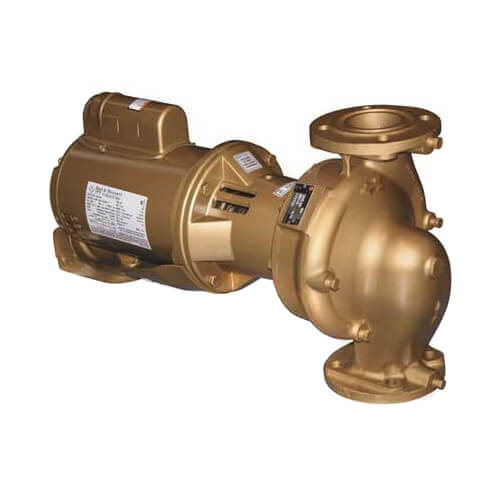

Bell & Gossett 1EF056LF HVAC Circulating Pump 208-230V/460V 3-Phase 3/4HP 2 Inch Flanged

Product Description

The Bell & Gossett 1EF056LF HVAC Circulating Pump is a robust choice for water circulation in residential and commercial HVAC systems. This pump features a 208-230V/460V 3-phase motor with 3/4 HP, ensuring high performance and efficiency in any environment.

• Designed for HVAC systems
• Durable bronze construction
• Easy installation and maintenance

Product Highlights

This circulating pump is ideal for HVAC applications and potable water systems. Its space-saving in-line mounting is dimensionally interchangeable with older models, making upgrades simple.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 1EF056LF
• UPC: 683328249605
• Series: E-60

Technical Specifications

• Voltage: 208-230V/460V
• Phase: 3
• Horsepower: 3/4 HP
• Connection Type: Flanged
• Max Flow Rate: 155 gpm
• Max Head: 24 ft
• Impeller Material: Bronze
• Dimensions: 11 1/2 inches Face to Face, 8 inches Width, 21 3/4 inches Length, 11.5 inches Height
• Weight: 66 lbs
• Compliance: CSA, NSF-372
• Material: Bronze
• Max Operating Pressure: 175 psi
• Max Temperature: 250 Degrees F
