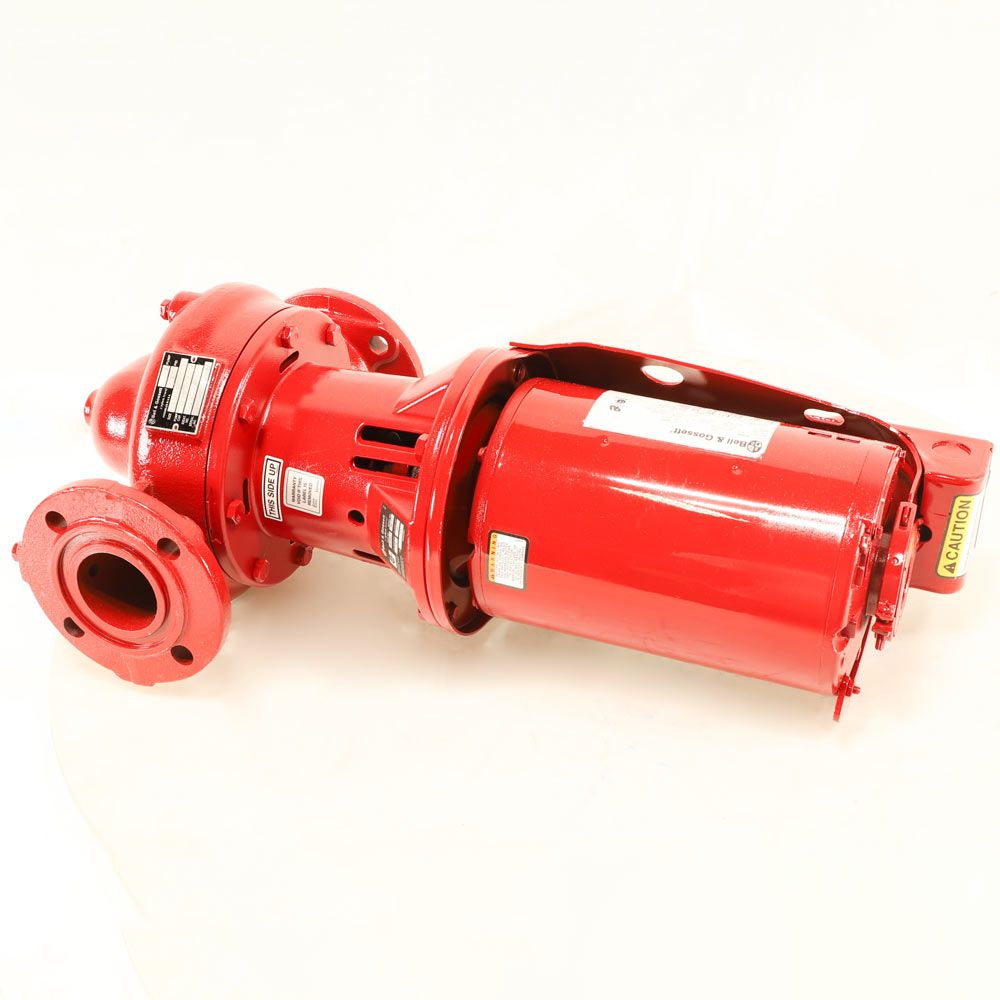

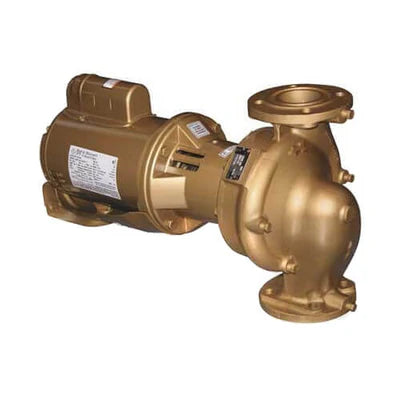

Bell & Gossett 1EF054LF e-60 Series e612T Bronze Fitted Pump 2 Inch Flange 1HP 208-230/460V

Product Description

The Bell & Gossett e-60 e612T Series is a robust in-line centrifugal pump designed for efficient operation in HVAC systems, cooling circuits, and other clean water applications. This 1 horsepower, triple phase motor pump is engineered to provide high-flow performance with minimal maintenance.

• High-efficiency design suitable for continuous operation.
• Bronze-fitted construction ensures durability against corrosive fluids.
• Features an internal self-flushing mechanical seal that enhances reliability.

Product Highlights

The e-60 e612T offers an optimized hydraulic performance with a max working pressure of 175 psi, making it a versatile solution for various installation environments. Its space-saving configuration and flanged connection simplify integration into existing systems.

Product Information

Technical Specifications

• Brand: Bell & Gossett
• Model: e612T
• Power: 1 HP
• Voltage: 208-230/460V
• Phase: Three
• Max Temp: 250 degrees Fahrenheit
• Connection Size: 2 inches
• Motor Speed: 1750 RPM
• Impeller Size: 5.25 inches
• Maximum Pressure: 175 psi
