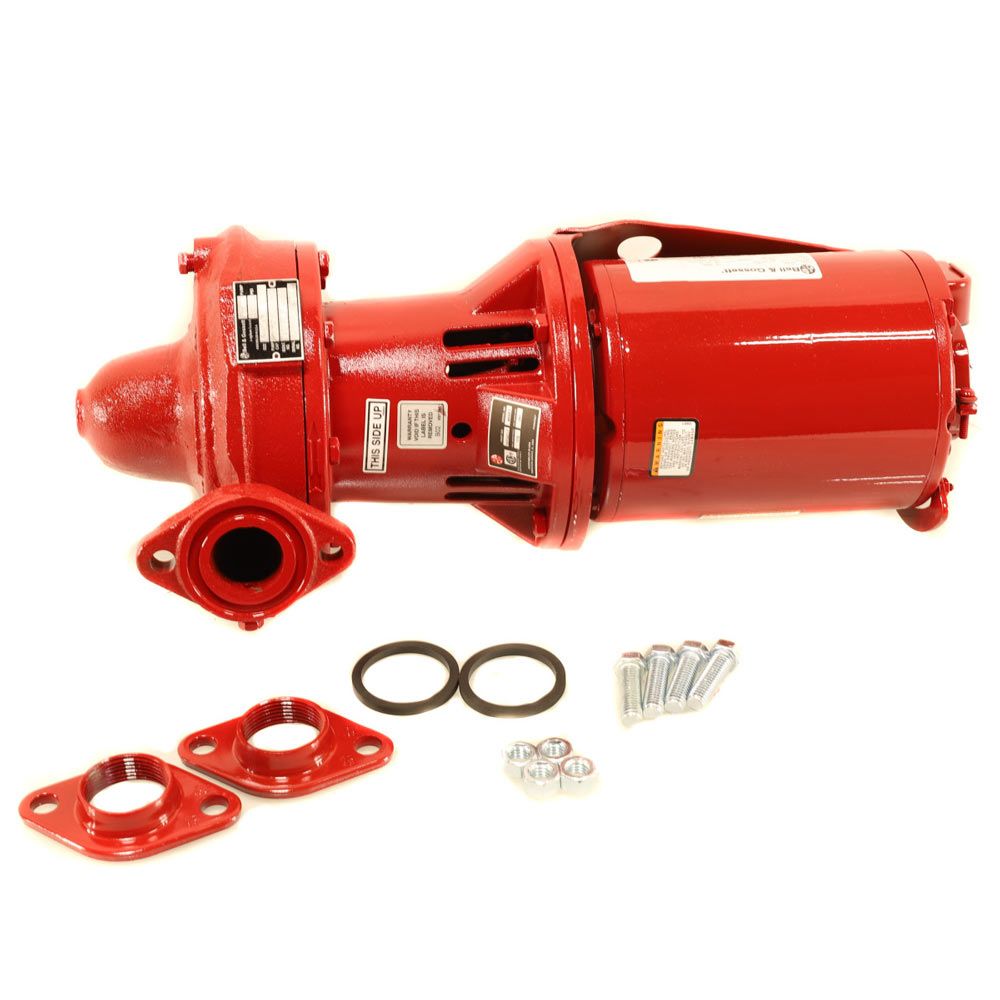

Bell & Gossett 1EF042LF e606T Series e60 Pump 1-2 HP 208-230/460V 1-1/4 Inch Flange

Product Description

The Bell & Gossett e606T Series e60 Pump, model 1EF042LF, is designed for hydronic heating and cooling applications. This in-line, three-piece centrifugal pump is crafted with a bronze-fitted construction and is powered by a 1/2 horsepower, three-phase motor. It offers reliable performance with a maximum working pressure of 175 psi and a connection size of 1-1/4 inch x 1-1/4 inch x 5-1/4 inch.

• Robust unitized self-flushing mechanical seal ensures durability and reduced maintenance.
• Optimized for both residential and commercial environments.
• Interchangeable with legacy Series 60 models, facilitating upgrades and replacements.

Product Highlights

Featuring a 5.25 inch impeller, this pump provides efficient fluid handling capabilities. It operates within a temperature range of up to 250 degrees Fahrenheit, making it suitable for a wide range of applications. The pump's in-line mounting design saves space and simplifies installation.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 1EF042LF

Technical Specifications

• Motor Voltage: 208-230/460V
• Motor Phase: 3 Ph
• Impeller Size: 5.25 inches
• Max Working Pressure: 175 psi
• Max Temperature: 250°F
