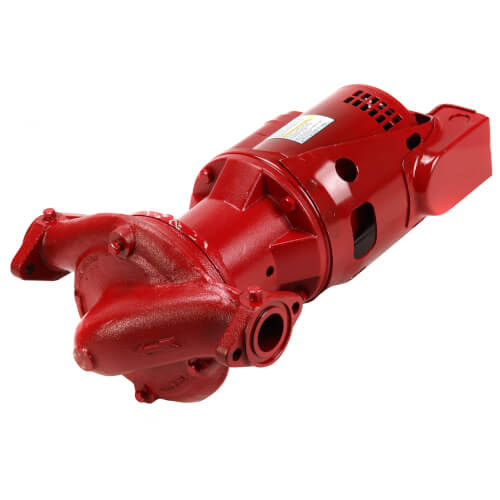

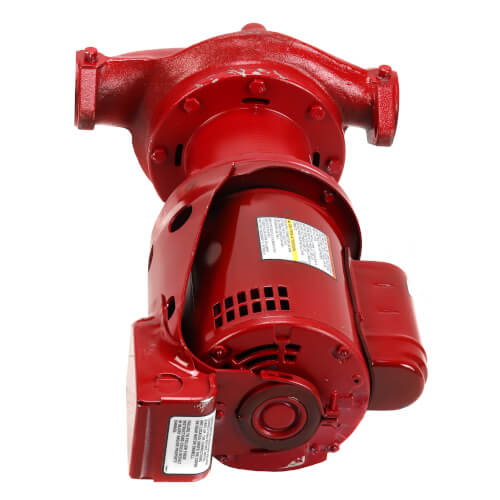

Bell & Gossett 1EF016LF e-60 1.25x5.25 Pump ASM - Model e604S Lead Free

Product Description

The Bell & Gossett 1EF016LF is an e-60 centrifugal in-line pump designed for HVAC systems and other clean water applications. This pump operates on 115V/230V, equipped with a 1/4 HP motor and a flow rate of 4.38 Imp. Its compact design simplifies installation and serviceability.

• 1/4 HP motor for effective fluid transfer
• 115V/230V-1ph for flexible power options
• Built for durability and long pump life

Product Highlights

This pump is suitable for various applications including water treatment and food processing. The durable construction ensures reliable operation over time.

Product Information

Standard Information

• MPN: 1EF016LF
• Brand: Bell & Gossett

Technical Specifications

• Power Rating: 1/4 hp
• Voltage Rating: 115/230 V
• Frequency Rating: 60 Hz
• Maximum Pressure: 175 psi
• Motor Speed: 1750 rpm
• Inlet Size: 1-1/4 in
• Outlet Size: 1-1/4 in
• Material: Bronze
• Dimensions: 19.88 in L
• Temperature Rating: 250 deg F
• Bearing Type: Rotating
• Impeller Type: Vacuum Cast
• Type: 3-Piece In-Line Small Flex Coupled
