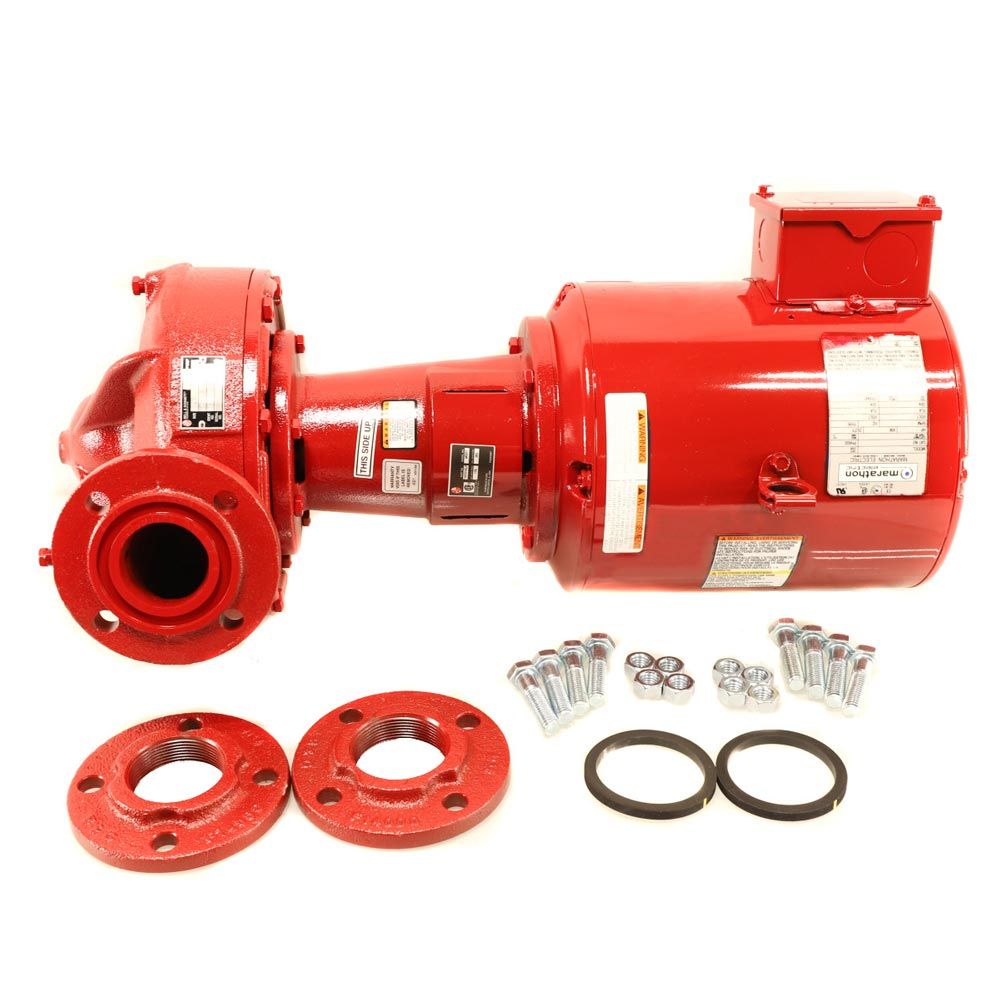

Bell & Gossett 1EF010LF e-60 Series e620T Pump 208-230/460V 3HP

Product Description

The Bell & Gossett 1EF010LF is a robust centrifugal in-line pump from the e-60 series, designed for both commercial and residential applications that require circulating water or glycol solutions. Featuring advanced hydraulic engineering, this pump is suitable for heating systems, secondary water circuits, air conditioning systems, and cooling towers.

• Engineered for energy efficiency and quiet operation.
• Equipped with a three-phase motor, enabling reliable handling of demanding applications.
• Features a unitized self-flushing mechanical seal for reduced maintenance.

Product Highlights

The pump provides a maximum working pressure of 175 psi and supports a fluid temperature up to 250 degrees Fahrenheit, ensuring performance under a range of operating conditions.

Product Information

Standard Information

• Brand: Bell & Gossett
• Series: e-60
• Model: e620T

Technical Specifications

• Power: 3 HP
• Voltage: 208-230/460V
• Phase: Three-phase
• Impeller Size: 7 inches
• Connection Size: 2 inches Flanged
• Max Working Pressure: 175 psi
• Max Temperature: 250 degrees Fahrenheit
• Material: Cast Iron and Bronze
