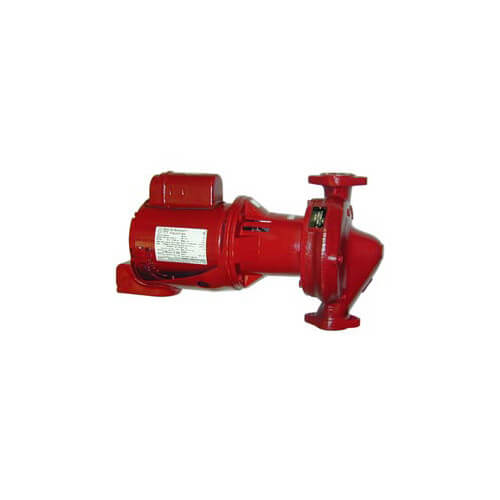

Bell & Gossett 1EF008LF Series e-60 Bronze-Fitted Pump 1HP 1750RPM 1PH 115/230V

Product Description

The Bell & Gossett Series e-60 1EF008LF model is a robust in-line, three-piece centrifugal pump specifically engineered for HVAC and potable water applications. Designed for both residential and commercial markets, this 1 HP pump operates at 1750 RPM and 115/230 volts in a single phase.

• Class-leading hydraulic efficiency and long service life.
• Equipped with a maintenance-free bearing and a self-flushing mechanical seal.
• Operates quietly, enhancing user comfort and equipment longevity.

Product Highlights

Featuring an impeller size of 6.22 inches, this pump is capable of achieving a maximum working pressure of 175 psi with a flow-optimized design that ensures energy efficiency and effective fluid handling. Its motor enclosure type is ODP (Open Drip Proof), providing a reliable performance under diverse operating conditions.

Product Information

Standard Information

• Power Source: Electric, 115/230V.
• Material: Constructed with a bronze-fitted body for enhanced durability and corrosion resistance.

Technical Specifications

• Motor Speed: 1750 RPM
• Impeller Type: Vacuum Cast
• Inlet/Outlet Size: 2 inches
• Maximum Pressure: 175 psi
• Temperature Rating: Up to 250 degrees Fahrenheit
• Motor Phase: Single phase
