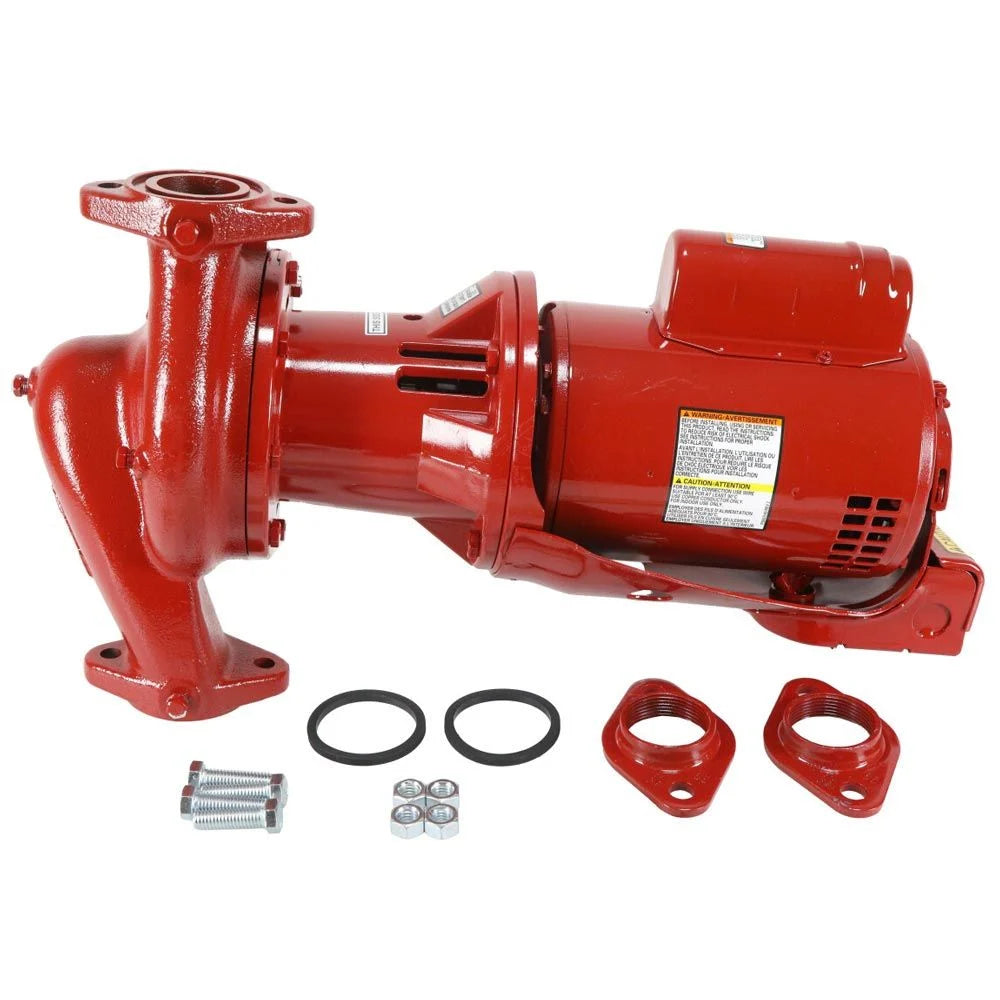

Bell & Gossett 1EF005LF e60 Series In-Line Centrifugal Pump 3/4HP 115/230V Bronze-Fitted

Product Description

The Bell & Gossett Series e-60 Pump, model 1EF005LF, is a bronze-fitted, in-line centrifugal pump designed for efficient transfer and circulation of fluid in hydronic heating and cooling systems. It is equipped with a single-phase, 3/4 horsepower motor that operates on both 115V and 230V power sources.

• Robust construction featuring a 1.5 inches x 1.5 inches x 5.25 inches flanged connection.
• Maximum working pressure of 175 psi and temperature tolerance up to 250 degrees Fahrenheit.
• Quiet operation with upgraded, unitized mechanical seal for enhanced durability.

Product Highlights

This heavy-duty pump is optimized for long-term use with low maintenance requirements, ensuring reliability in a variety of commercial and residential applications. Its space-saving design allows for installation flexibility in limited areas.

Technical Specifications

• Motor Horsepower: 0.75HP
• Voltage: 115/230 Volts
• Flow Rate: 108 GPM Max
• Head: 28 ft Max
• Phase: Single
• Impeller Material: ASTM B584
• Insulation Class: EPR/Carbon/Silicon-Carbide
• Flanges Included: Yes
