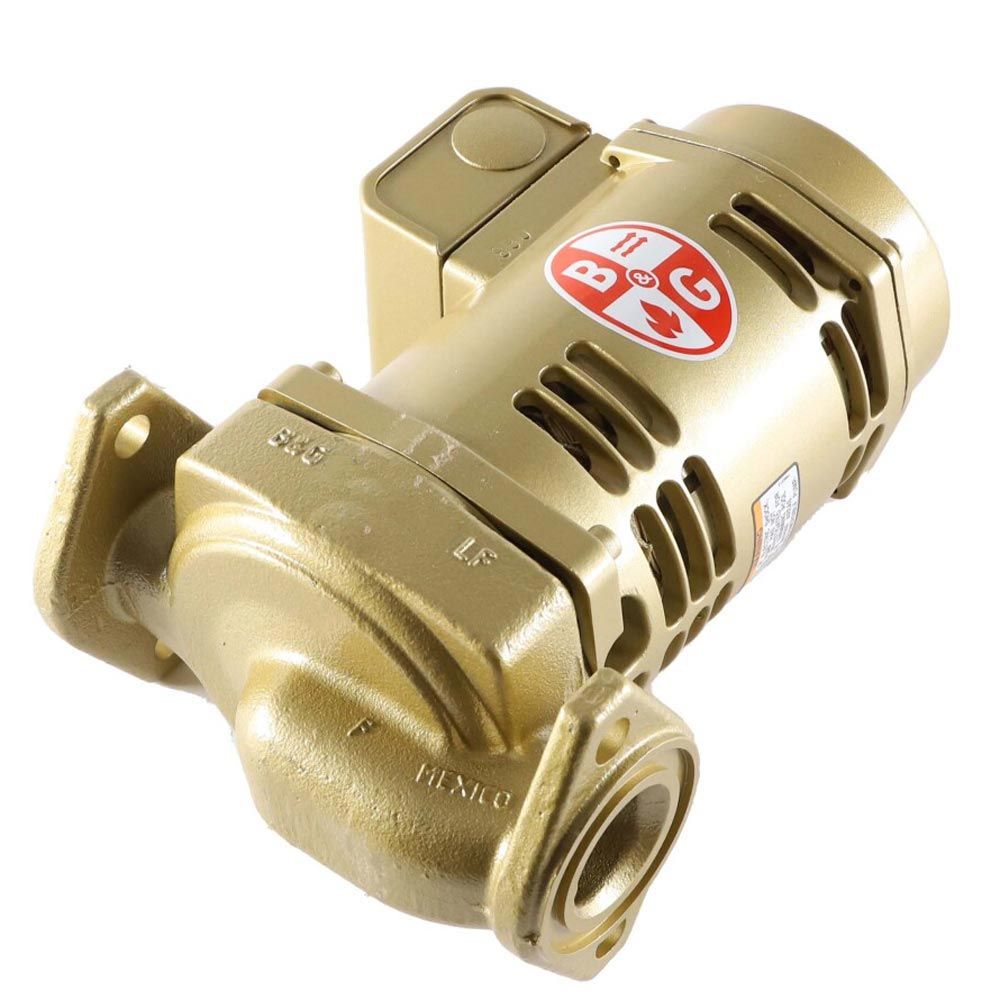

Bell & Gossett 1BL136LF PL-100B Bronze Booster Pump 2/5HP 3250RPM 115V

Product Description

The Bell & Gossett 1BL136LF is a PL-100B bronze booster pump designed for effective circulation. It features a two-fifths horsepower motor that operates at three thousand two hundred fifty RPM and is rated for one hundred fifteen volts. This model is ideal for applications requiring reliable performance in heating, cooling, or plumbing systems.

• Permanently lubricated for low maintenance
• Designed for in-line mounting
• Compatible with connections of one inch to one and a half inches

Product Highlights

This pump provides a temperature rating of up to two hundred twenty-five degrees Fahrenheit and a pressure rating of one hundred fifty psi, suitable for a variety of uses in hydronic systems.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 1BL136LF

Technical Specifications

• Pump Type: Circulator
• B&G Series: Series PL
• Model: PL100B
• Pump Construction: Lead-Free Bronze
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: 1, 1-1/4, 1-1/2 inches
• Pump Connection: 2-Bolt Flanged
• Motor HP: 2/5 HP
• Motor RPM: 3250 RPM
• Motor Voltage: 115V
• Motor Phase: 1 Phase
• Motor Hertz: 60 Hz
• Motor Enclosure: ODP
• Working Pressure: 150 psi
• Max Temp: 225°F
• Potable Water: Yes
• Weight: 16.77 lbs
