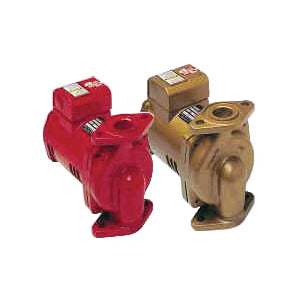

Bell & Gossett 1BL016 PL Series Maintenance-Free Booster Pump, 115 VAC, 1 ph

Product Description

The Bell & Gossett 1BL016 is a maintenance-free booster pump designed for hydronic, radiant, and geothermal heating and cooling systems. This pump operates at 115 VAC with a power rating of 1/6 hp. The PL Series provides robust performance, making it essential for applications requiring reliable fluid circulation.

• 1/6 hp power with a motor speed of 3300 rpm
• Maximum pressure capacity of 150 psi
• Permanently lubricated with a cast iron body for durability

Product Highlights

The Bell & Gossett 1BL016 combines efficiency and durability. Ideal for HVAC systems, this pump ensures effective fluid handling with low noise levels.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer Part Number: 1BL016

Technical Specifications

• Amperage Rating: 1.8 A
• Bearing Type: Ball
• Dimensions: 9-1/8 in L x 8-1/12 in W
• Frequency Rating: 60 Hz
• Impeller Type: Glass-Filled Noryl
• Maximum Pressure: 150 psi
• Motor Speed: 3300 rpm
• Mounting Type: In-Line
• Phase: 1 ph
• Power Rating: 1/6 hp
• Series: PL Series
• Temperature Rating: 225 deg F
• Type: Maintenance-Free
• Voltage Rating: 115 VAC
