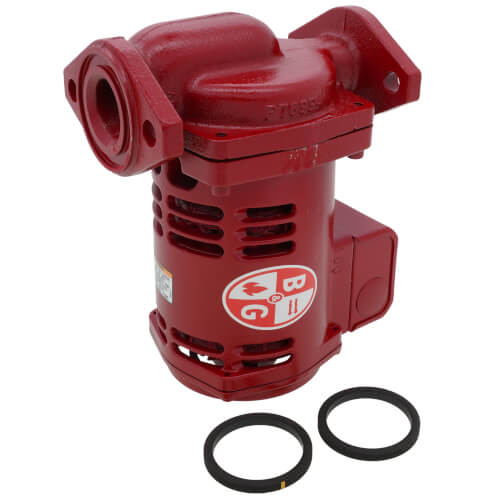

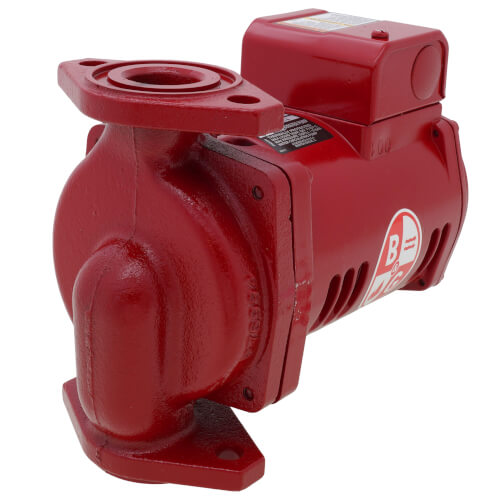

BELL & GOSSETT 1BL007 PL-45 230/60/1 CAST IRON BOOSTER PUMP

Product Description

The Bell & Gossett PL-45 Cast Iron Booster Pump, model 1BL007, operates at 230 volts. A reliable solution for hydronic, radiant, and geothermal heating and cooling systems. Known for its quiet performance, this pump is crafted for superior durability and efficiency.

• Enhanced motor design, 25% more efficient than competitors
• Maintenance-free with permanent lubrication
• Robust construction with a stainless steel shaft sleeve and silicon carbide seal

Product Highlights

Bell & Gossett's Series PL pumps feature an advanced close-coupled design that boosts lifespan and performance, making season-start-ups hassle-free. Its sturdy 'Stiff-Shaft' design is resistant to thermal stresses, ensuring longevity.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• Model: 1BL007

Technical Specifications

• Power: 230V
• Phase: Single
• Horsepower: 1/6 HP
• Maximum Temperature: 225 degrees Fahrenheit
• Flow Rate:
• Max Flow (GPM): 40
• Max Head (Ft): 40
• Material: Cast Iron
• Connection Type: Flanged
