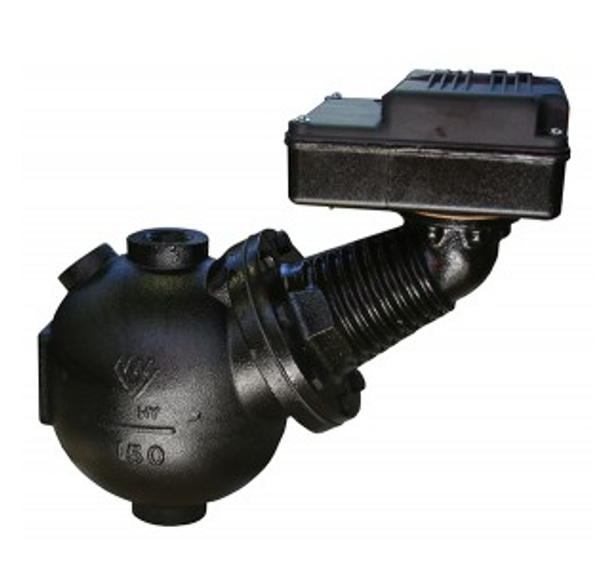

BELL & GOSSETT 171702 Combination Low Water Cut-Off and Pump Controller

Product Description

The BELL & GOSSETT 171702 is a float-operated low water cut-off and pump controller suitable for steam boiler applications. It operates with a separate water column and features maximum differential operation to avoid nuisance burner shutdowns in low-pressure settings.

• Automatic reset functionality.
• 1 FIP connection.
• Maximum pressure of 150 psi.

Product Highlights

This controller ensures reliable operation and safety in steam boilers.

Product Information

Standard Information

• Manufacturer: McDonnell & Miller
• Part Number: 171702

Technical Specifications

• Model: 150S
• Control Type: Combination Low Water Cutoff Pump Control
• Application: Steam Boiler
• Reset Type: Automatic
• Switch Model: SWA 150S
• Voltage: 120v, 240v
• Installation Method: 1 Equalizing Piping
• Maximum Pressure: 150 psi
• Maximum Operating Pressure: 50 psi (3.5 kg/cm²)
