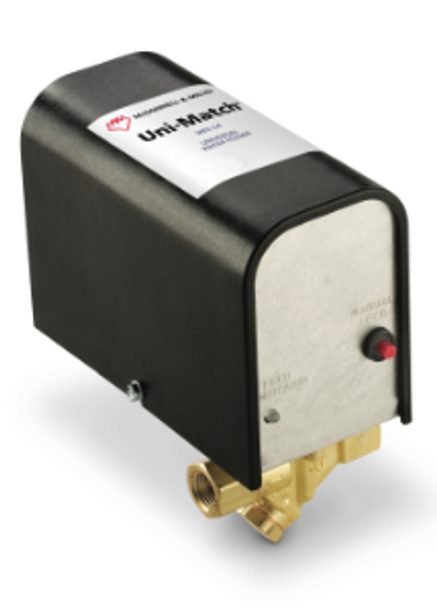

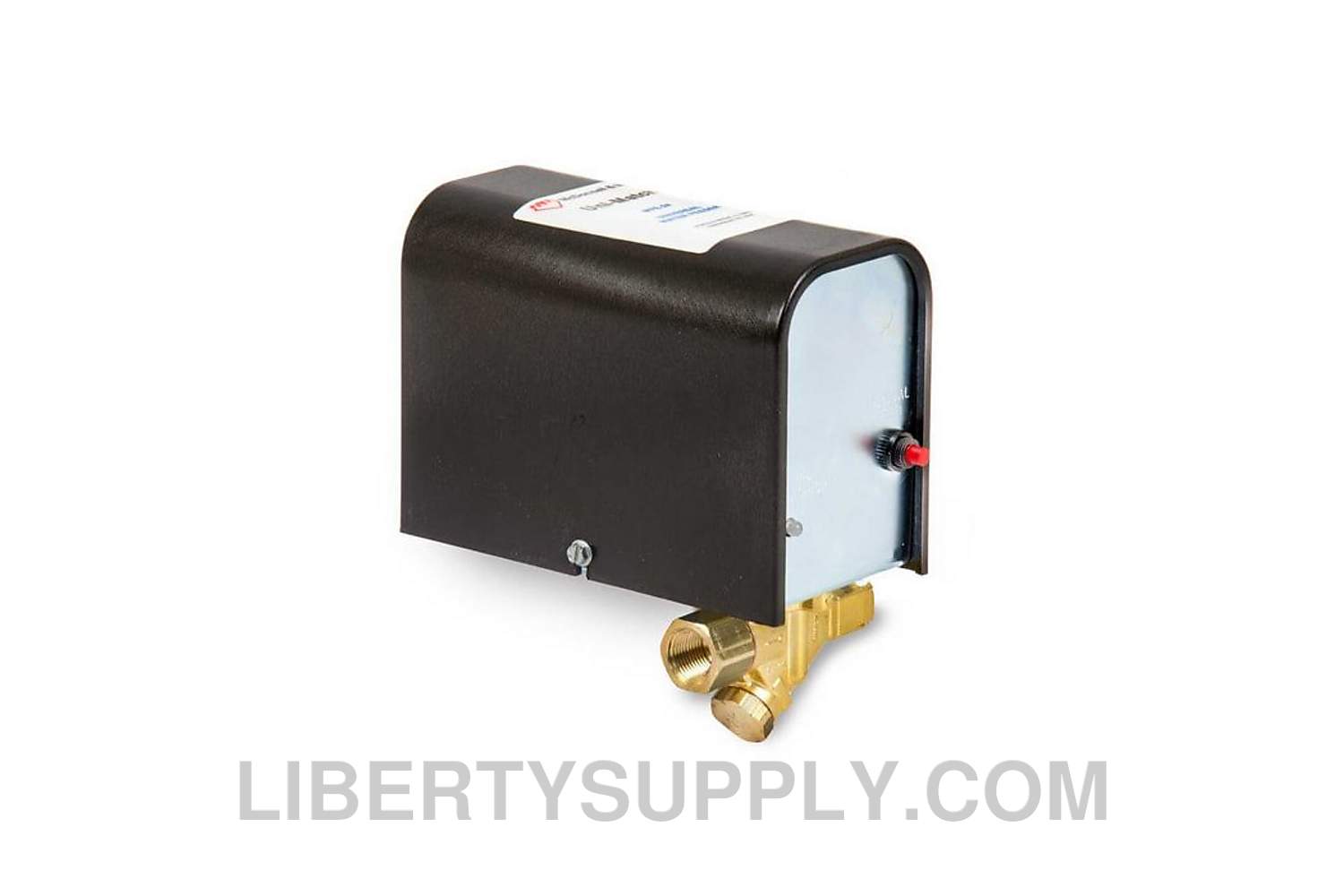

BELL & GOSSETT 169550 Universal Water Feeder

Product Description

The BELL & GOSSETT 169550 is a universal water feeder suitable for residential and small commercial use. This twenty-four volt electric water feeder operates automatically to supply water when the low water cut-off signals its need. It prevents dry-fire situations in boilers by ensuring a safe minimum water level is maintained, even when leaks occur. The device continuously checks the water level, allowing it to adjust naturally within its operating range. Additionally, it comes with a removable strainer and manual feed option.

• Automatic water feeding controlled by a low water cut-off.
• Removable strainer for easy cleaning.
• Manual feed button for user intervention.

Product Highlights

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 169550

Technical Specifications

• Manufacturer: McDonnell & Miller
• Part Number: 169550
• Model: WFE-24
• Water Supply Pressures: up to 150 psi
• Boiler Pressures: up to 15 psi
• Connection: three-eighths NPT connection
