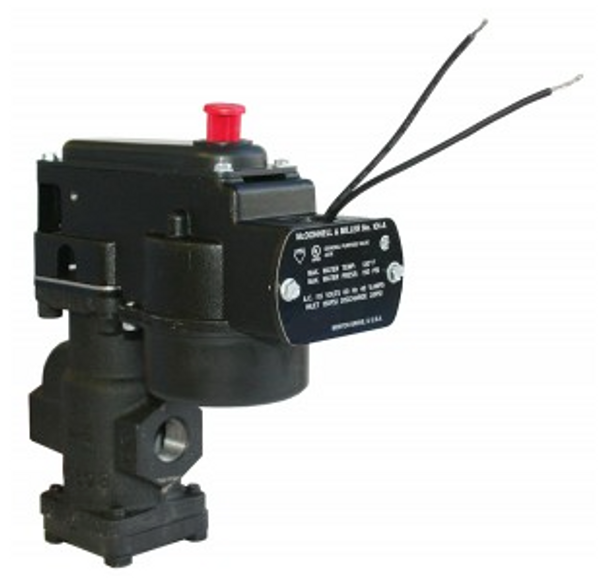

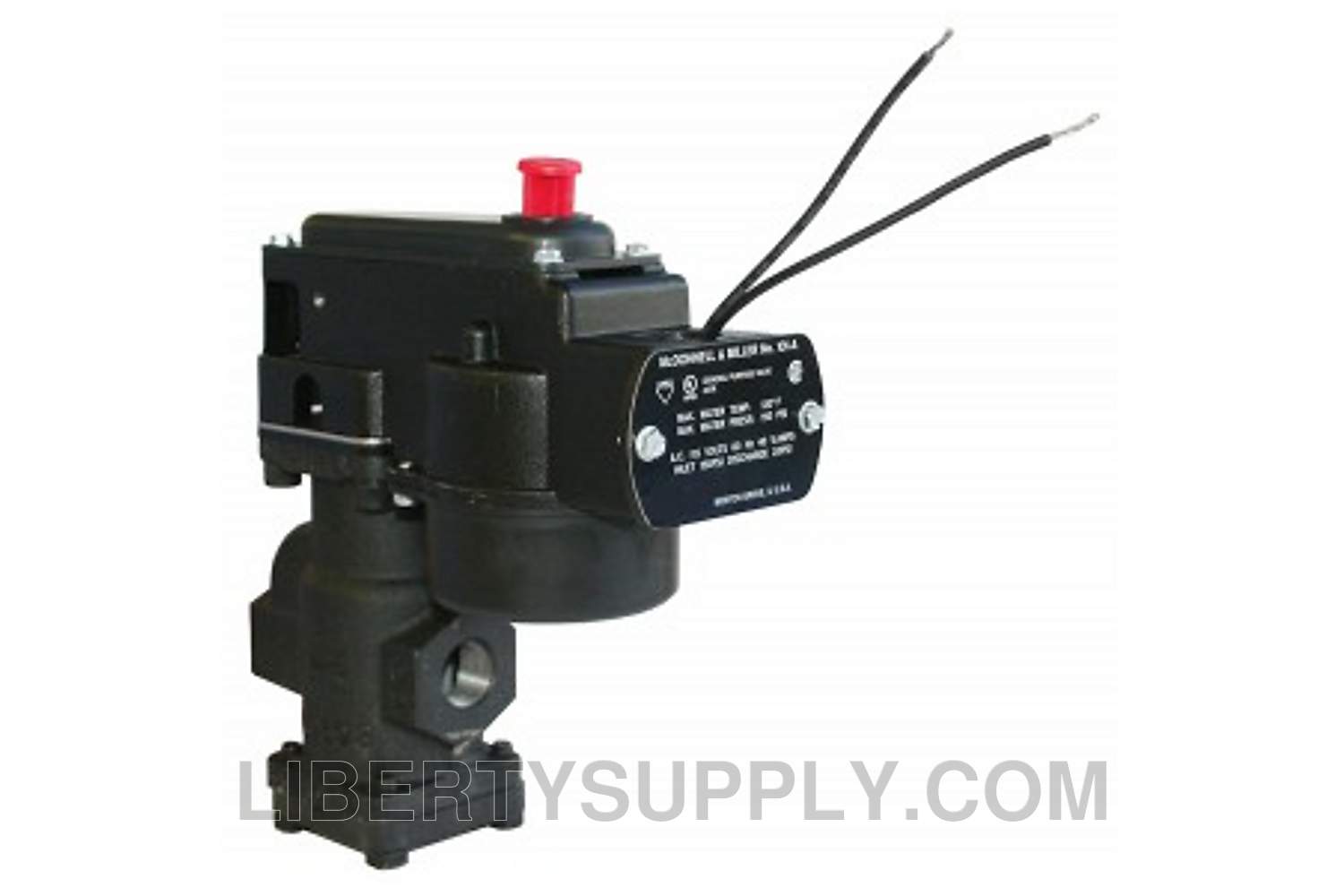

BELL & GOSSETT 169400 Water Feeder

Product Description

The BELL & GOSSETT 169400 water feeder is a reliable component for low-pressure steam boilers, designed to automatically maintain water levels by utilizing cold water feeds. This device ensures efficient operation without the need for manual water addition. It is compatible with mechanical and electronic low water cut-off controls.

• Automates water feeding to low-pressure steam boilers.
• Includes a quick-change replaceable cartridge valve and strainer for easy maintenance.
• Equipped with a manual feed button for user control.

Product Highlights

This water feeder simplifies the maintenance of boiler systems by providing consistent water levels.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• MPN: 169400

Technical Specifications

• Manufacturer: McDonnell & Miller
• Model: 101A
• Input Voltage: 120 VAC
• Maximum Water Supply Pressure: 150 psi (10.5 kg/cm sq.)
• Maximum Boiler Pressure: 25 psi (1.8 kg/cm sq.)
• Maximum Inlet Water Temperature: 120 degrees F (49 degrees C)
