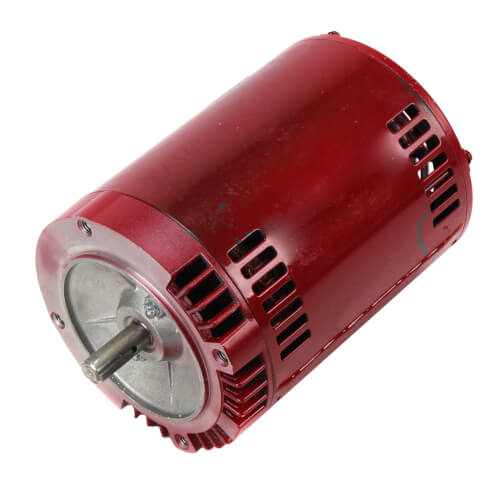

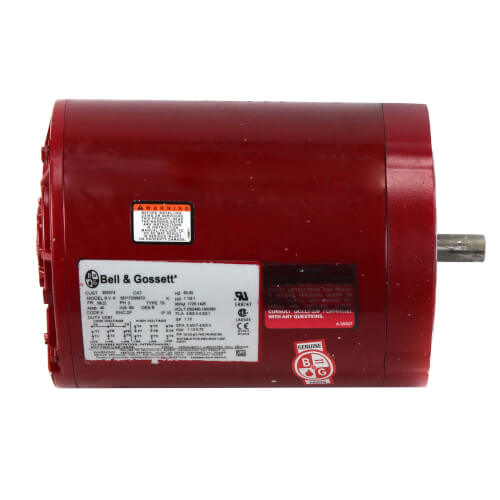

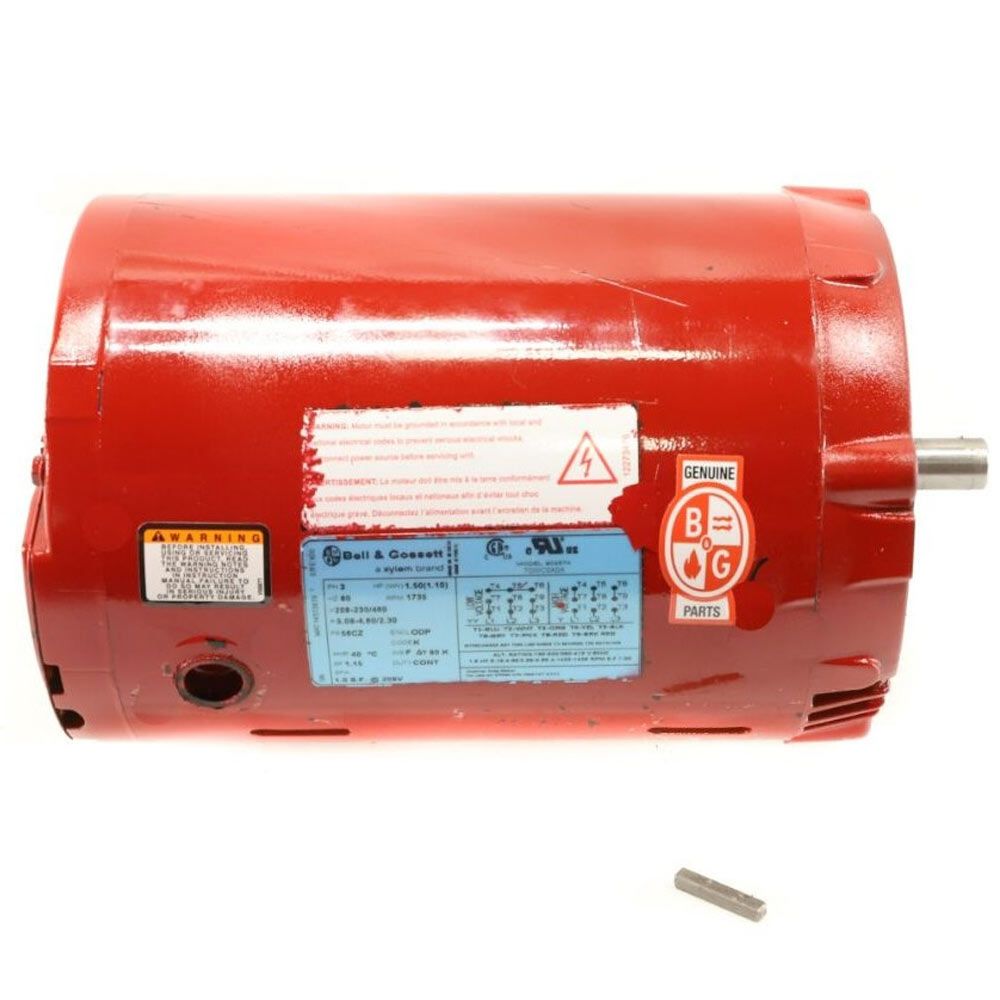

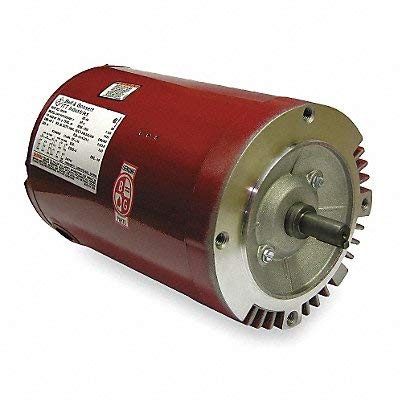

Bell & Gossett 169237 Motor 1-1/2 HP 1725 RPM 208-230/460V

Product Description

The Bell & Gossett 169237 Motor is designed for reliable performance in various industrial applications. This motor offers 1.5 horsepower and operates at 1725 RPM using a three-phase power supply. It supports a voltage range of 208-230/460V, making it versatile for different electrical systems.

• Water circulator motor
• 1.5 horsepower, 1725 RPM
• Voltage: 208-230/460V

Product Highlights

This motor is ideal for use with in-line circulating pumps, providing consistent and efficient operation. It comes with a face mounting type and features an open drip-proof enclosure design for effective thermal management. Key applications include powering pumps, fans, and conveyor systems in demanding environments.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 169237

Technical Specifications

• Horsepower: 1.5 HP
• Phase: 3
• Speed: 1725 RPM
• Voltage: 208-230/460V
• Full Load Amps: 4.8/2.4 A
• Enclosure Design: Open Dripproof
• Mounting Type: Face
• Shaft Rotation: CCWLE
• Frame Size: 56CZ
• Motor Thermal Protection: None
• Maximum Ambient Temperature: 104 °F
• Minimum Ambient Temperature: 32 °F
