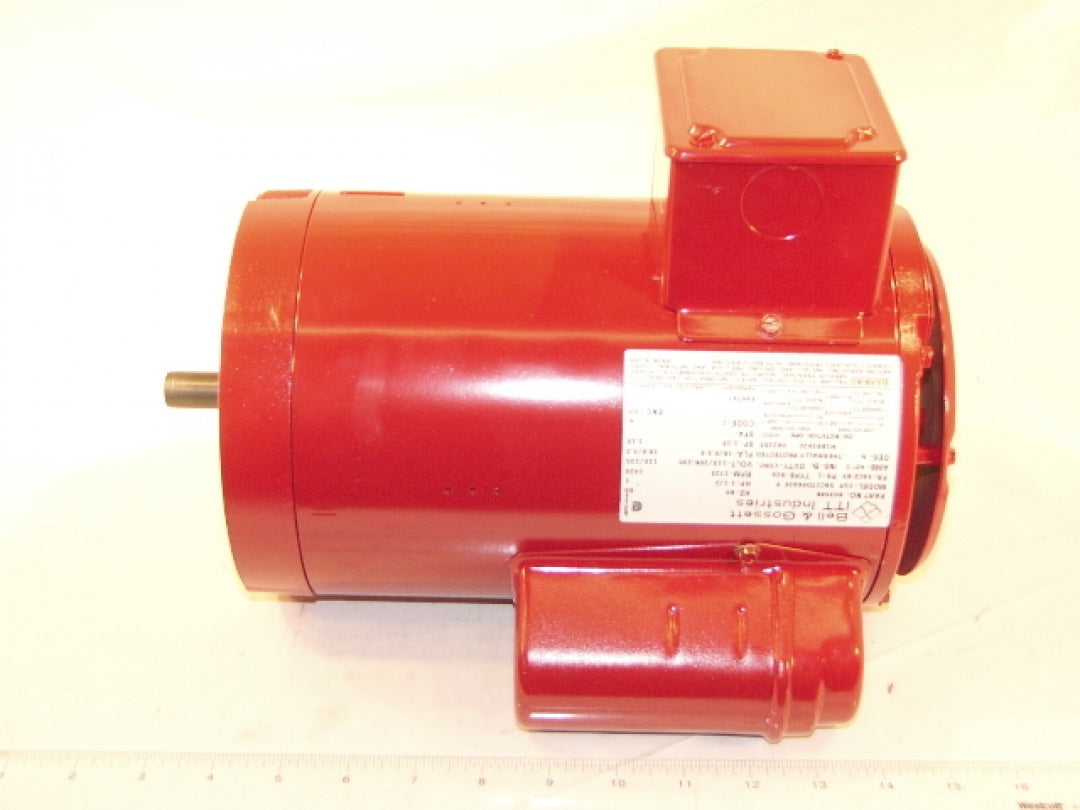

Bell & Gossett 169236 Power Pack Single Phase Motor 115/208-230V 1-1/2 HP

Product Description

The Bell & Gossett 169236 motor is a powerful unit engineered to meet the needs of rigorous industrial applications. Designed by Bell & Gossett, a leading brand in the field, the 169236 features a 1.5 horsepower motor that runs at 1725 RPM. It offers reliability and efficiency for various applications such as water transfer and pressure boosting.

• 1.5 HP motor
• 115/208-230V power supply
• 1725 RPM speed

Product Highlights

This motor's compact design facilitates easy installation and compatibility with Bell & Gossett Series 60 pumps, specifically model 617S. It features an oil-lubricated system, ensuring long-lasting performance. The unit is housed in a rugged cast iron casing and uses a stainless steel impeller to handle a wide range of fluids effectively.

Product Information

Standard Information

• Brand: Bell & Gossett
• Model: 903568

Technical Specifications

• MPN: 169236
• UPC: 683328692364
• Motor HP: 1.5 HP
• Motor RPM: 1725 RPM
• Motor Voltage: 115/208-230V
• Motor Phase: 1
• Motor Hertz: 60 Hz
• Motor Enclosure: ODP
• Motor Frame Size: 56CZ
• Weight: 47.49 lbs
• Application: Heating
• Compatible with: 105137, 172724LF, 172762LF, 172952LF, 172954LF, 1EF033LF, 1EF071LF, 1EF147LF, 1EF149LF
