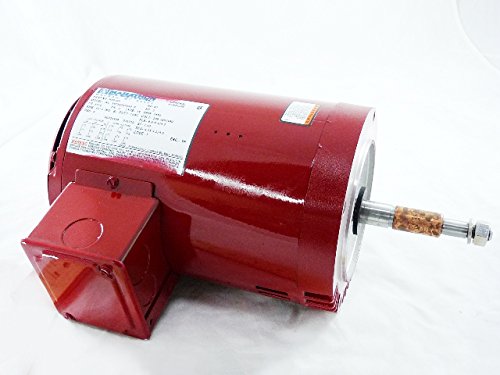

Bell & Gossett 169219 3 HP 208-230/460V 3-Phase 3450 RPM Motor

Product Description

The Bell & Gossett 3 HP Motor, model 169219, is a high-performance, three-phase motor operating at 3450 revolutions per minute and designed for 208-230/460 volt power supplies. This motor is tailored for B&G Series 90 pumps and features an oil-lubricated system with a three-quarter inch seal shaft diameter.

• Optimized for heavy-duty applications in industrial environments.
• Incorporates a built-in thermal overload protector for enhanced safety.
• UL recognized components ensuring reliability and quality.

Product Highlights

This motor is built to deliver efficiency and power, ideal for driving high-capacity machinery and pumps. Its durable construction and oil-lubricated bearings provide smooth, continuous operation and extended lifespan.

Technical Specifications

• Brand: Bell & Gossett
• Motor Horsepower: 3 HP
• Motor RPM: 3450 RPM
• Motor Voltage: 208-230/460V
• Phase: 3
• Motor Enclosure Type: ODP (Open Drip Proof)
• Frame Size: OEM
• Frequency: 60 Hz
