BELL & GOSSETT 132800 Mechanical Water Feeder

Product Description

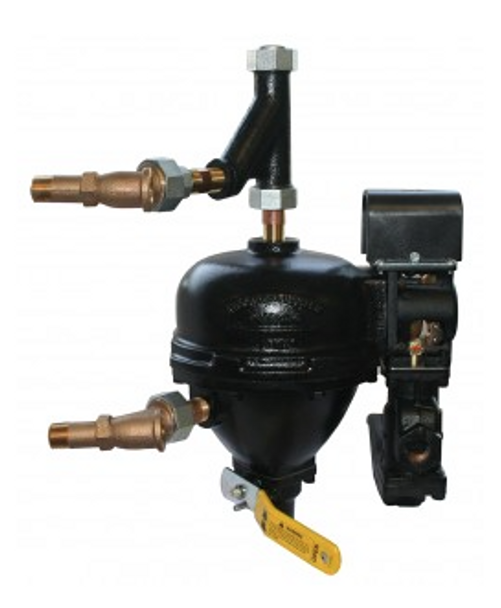

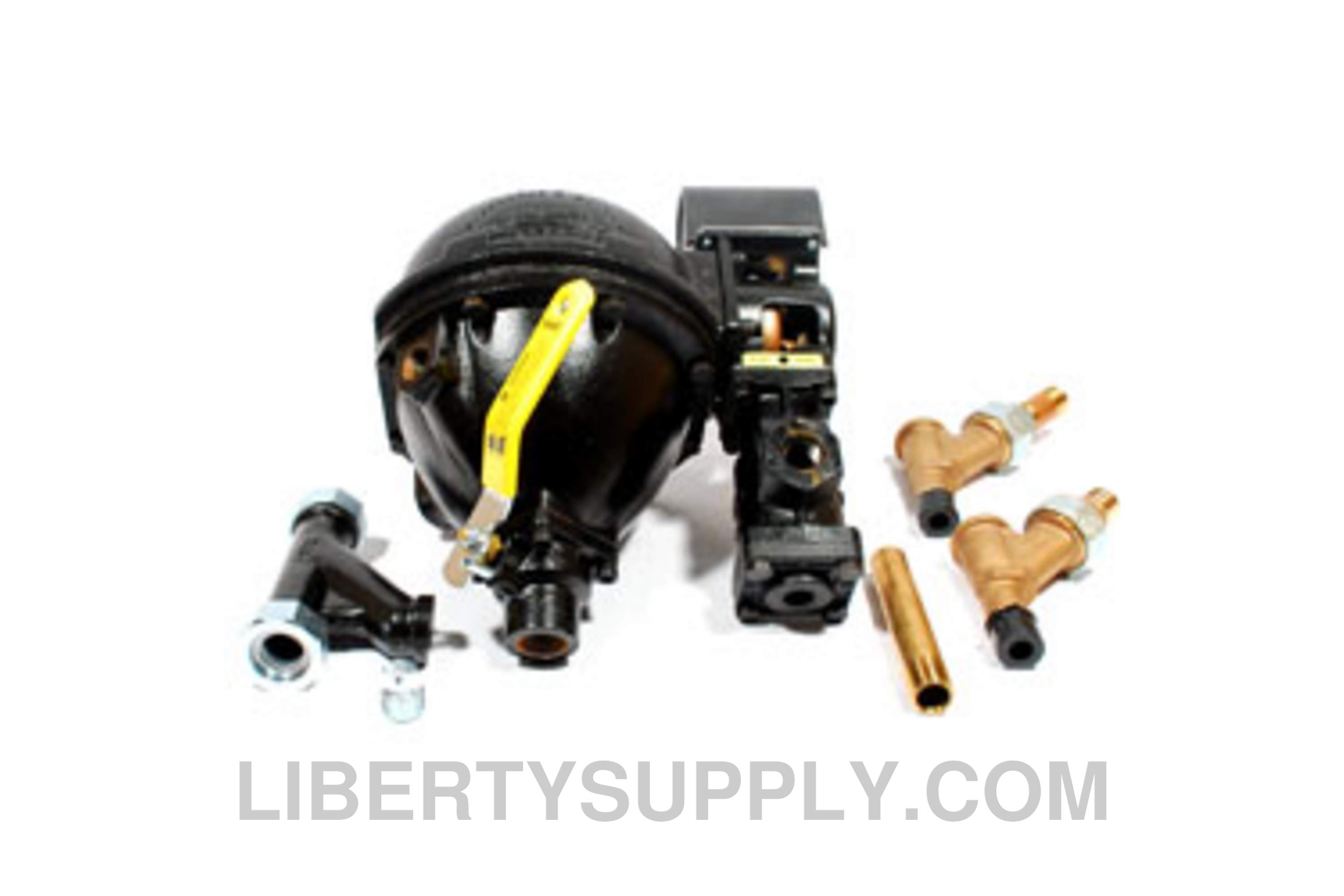

The BELL & GOSSETT 47-2 (132800) is a mechanical water feeder designed to support steam and hot water boilers. This feeder works efficiently with cold water feed applications. It is equipped with a No. 2 switch to ensure a minimum safe water level in your system. The device features a quick-change replaceable cartridge valve and strainer to facilitate easy maintenance. It can also be upgraded to include a No. 2 switch for low water cut-off functions.

• Quick-change replaceable cartridge valve and strainer.
• Proportional feed action to maintain optimal water levels.
• Automatic reset type ensures consistent performance.

Product Highlights

This mechanical water feeder is essential for maintaining safe water levels in both hot water and steam boilers.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Part Number: 132800

Technical Specifications

• Model: 47-2
• Maximum Water Pressure: 150 psi
• Maximum Inlet Water Temperature: 120°F (49°C)
• Maximum Boiler Pressure: 25 psi (1.8 kg/cm2)
• Control Type: Make Up Water Feeder
• Application: Hot Water Boiler & Steam Boiler
• Reset Type: Automatic
• Switch Model Number: 2
• Voltage: 120v, 240v
