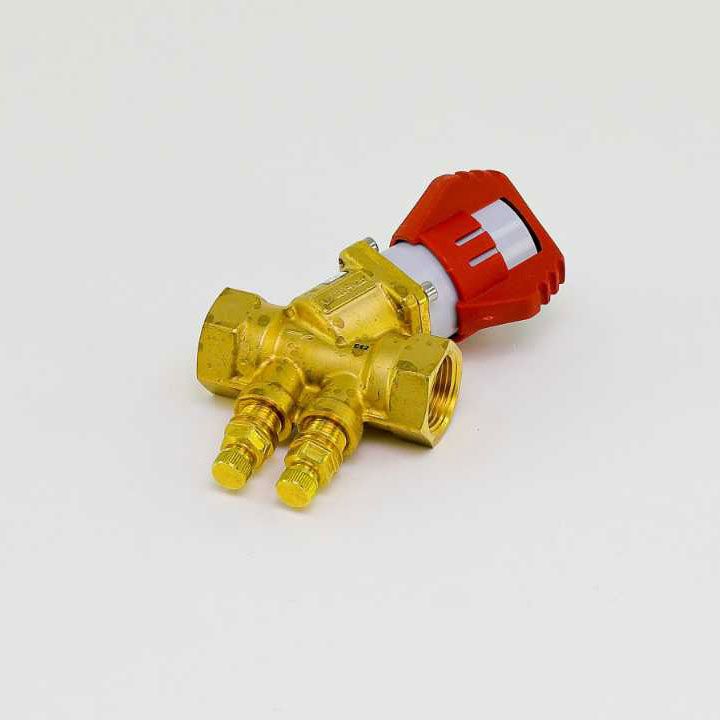

Bell & Gossett 117632 - 0.75 NPT Circuit Sentry Flo-Setter II FS-3/4

Product Description

The Bell & Gossett 117632 is a 0.75 NPT Circuit Sentry Flo-Setter II valve designed for flow regulation in hydronic heating and cooling systems. This valve operates effectively within a temperature range of fourteen to two hundred fifty degrees Fahrenheit. It features a flow capacity range from zero point four five to eight point five GPM.

• Flow setting adjustment dial allows easy flow rate changes without system downtime.
• Integral shutoff capability and isolation provide added convenience.
• Constructed with a brass body, ensuring durability and reliability in demanding conditions.

Product Highlights

The Circuit Sentry Flo-Setter II valve simplifies the balancing of hydronic systems by automatically adjusting to maintain a set flow rate, enhancing efficiency and reducing energy costs.

Product Information

Standard Information

• Brand: Bell & Gossett
• Model: FS-3/4

Technical Specifications

• MPN: 117632
• Valve Size: 3/4 inches
• Valve Application: Water
• Body Material: Brass
• Valve Connection: NPT
• Max Pressure: 375 psi
• Weight: 1.30 lbs
