Bell & Gossett 116299 D-20 ASME Diaphragm Expansion Tank

Product Description

Bell & Gossett 116299 model D-20 is an ASME-rated expansion tank designed to handle pressurized water systems. It has a total volume of eleven gallons and an acceptance volume of eight point eight gallons. This tank type is crucial for maintaining the balance in heating and cooling systems by absorbing thermal expansion and preventing pressure fluctuations.

• ASME certified and precharged diaphragm design
• Effective pressure management under varying temperatures
• Robust construction with carbon steel for durability

Product Highlights

The D-20 model features a diaphragm that separates the water and air, reducing the risk of waterlogging and ensuring system integrity.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 116299

Technical Specifications

• Tank Series: Series D
• Model: D-20
• Tank Type: Diaphragm
• Tank Volume: Eleven Gallon
• Acceptance Volume: Eight point eight Gallon

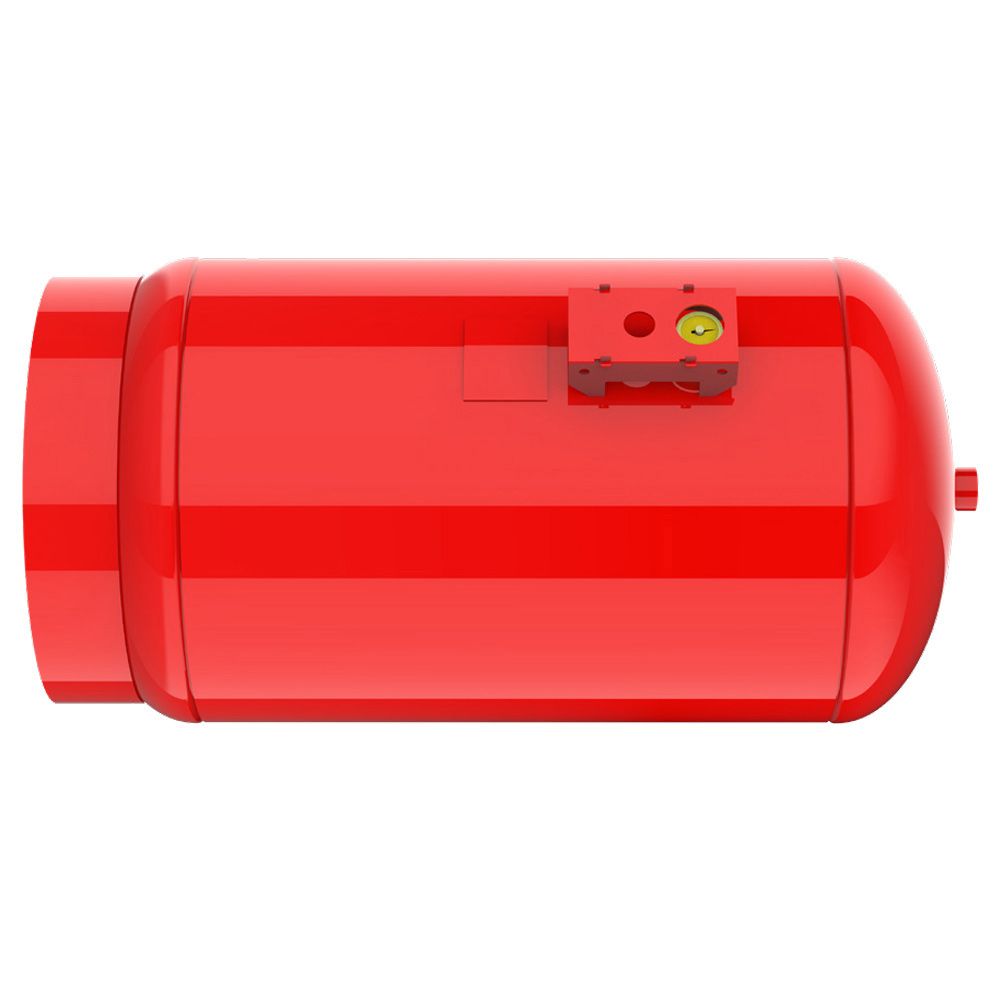

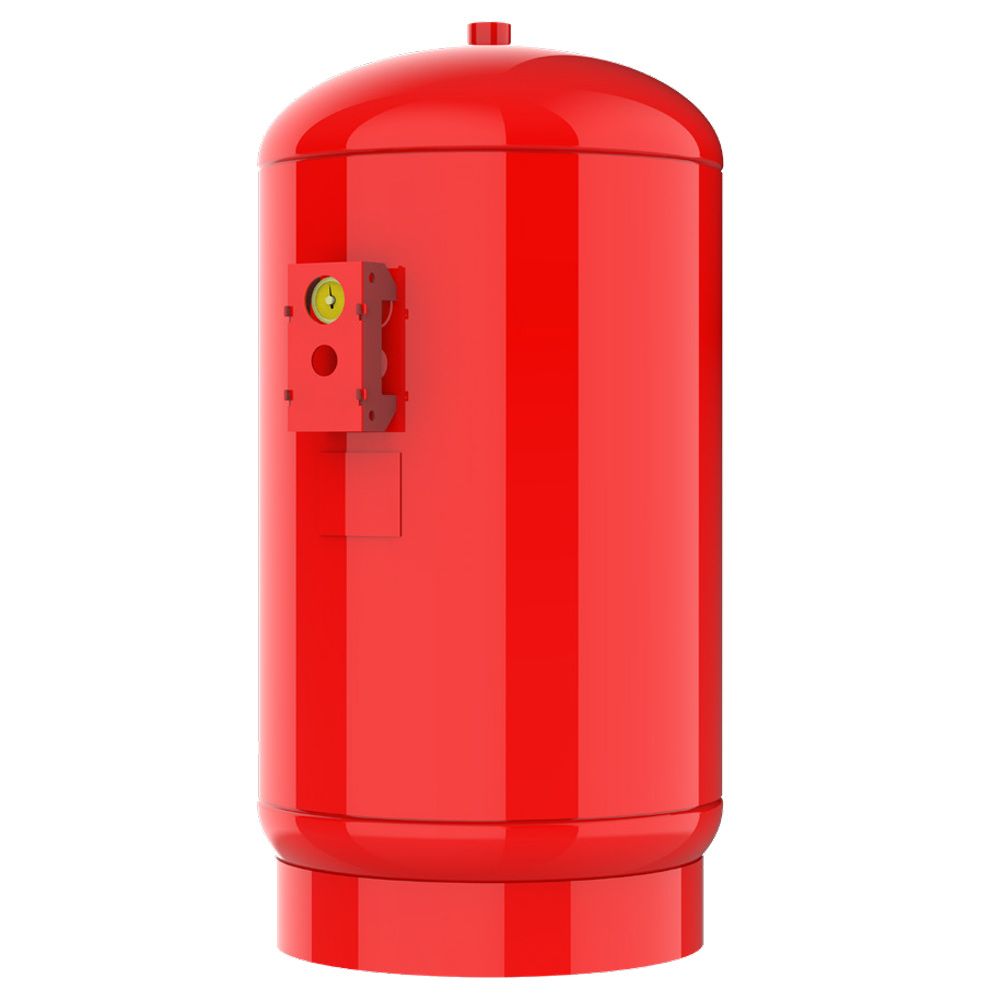

• Installation Position: Horizontal or Vertical
• Tank Code: ASME
• Construction: Carbon Steel
• Replaces: 116501, 116492
• Weight: Fifty-two Pounds
