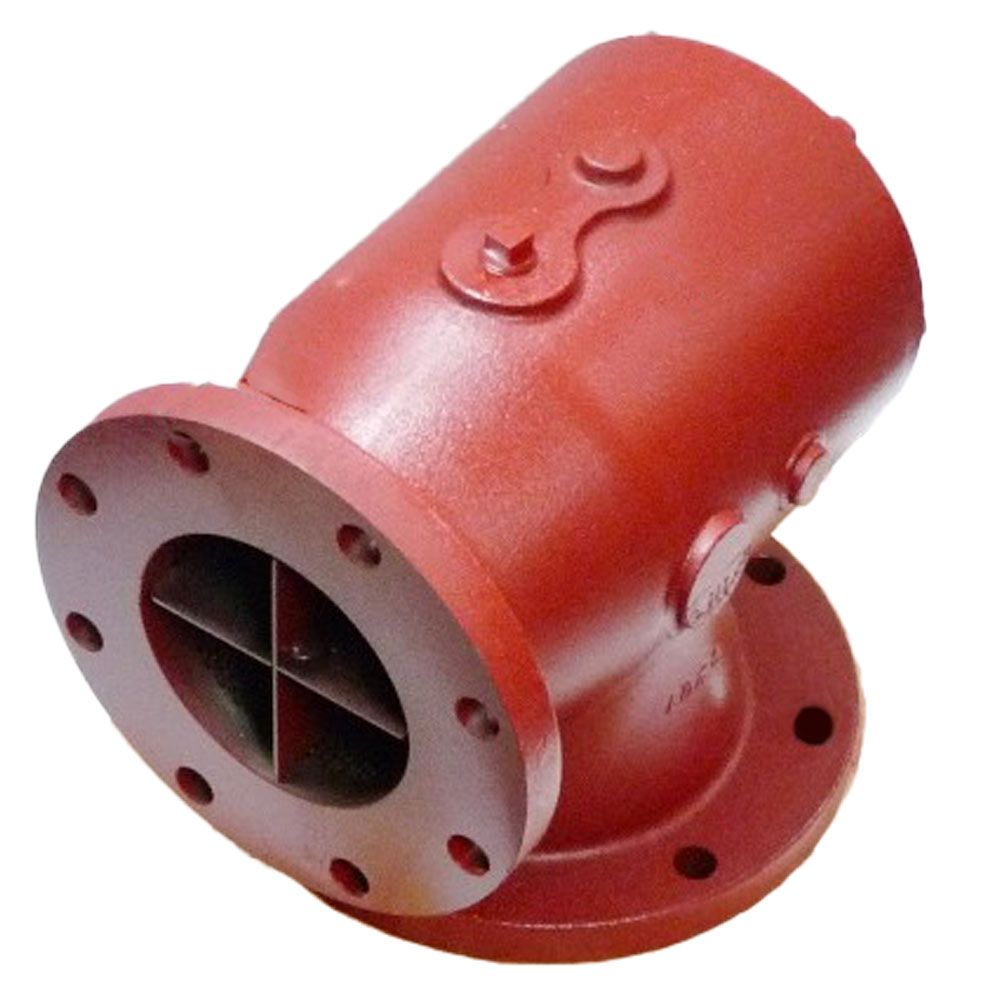

Bell & Gossett 115126 HG-3X Suction Diffuser Plus 8 Inch Flg x 6 Inch Flg Replacement 115032

Product Description

The Bell & Gossett HG-3X Suction Diffuser Plus, model 115126, offers a robust solution for optimizing pump efficiency. Designed to facilitate a smooth transition from return piping to the pump, this cast iron suction diffuser features a 8 inch flanged system side and a 6 inch flanged pump side configuration. With a maximum working pressure of 175 psi and an operating temperature up to 250 degrees Fahrenheit, it is ideal for both industrial and HVAC applications.

• Cast iron body ensures durability under rigorous conditions.
• Efficient flow conditioning to maximize pump efficiency.
• Removable internals for easy field service and maintenance.

Product Highlights

This suction diffuser integrates a 16 mesh bronze strainer and an EPDM o-ring, enhancing its operational reliability and lifespan. Its design includes an angle connection, which saves space and reduces installation complexity.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 115126

Technical Specifications

• Body Material: Cast Iron
• Connection Size: 8 inch x 6 inch
• Connection Type: Flanged
• Max Pressure: 175 psi
• Max Temperature: 250 degrees Fahrenheit
• Valve Type: Suction Diffuser
