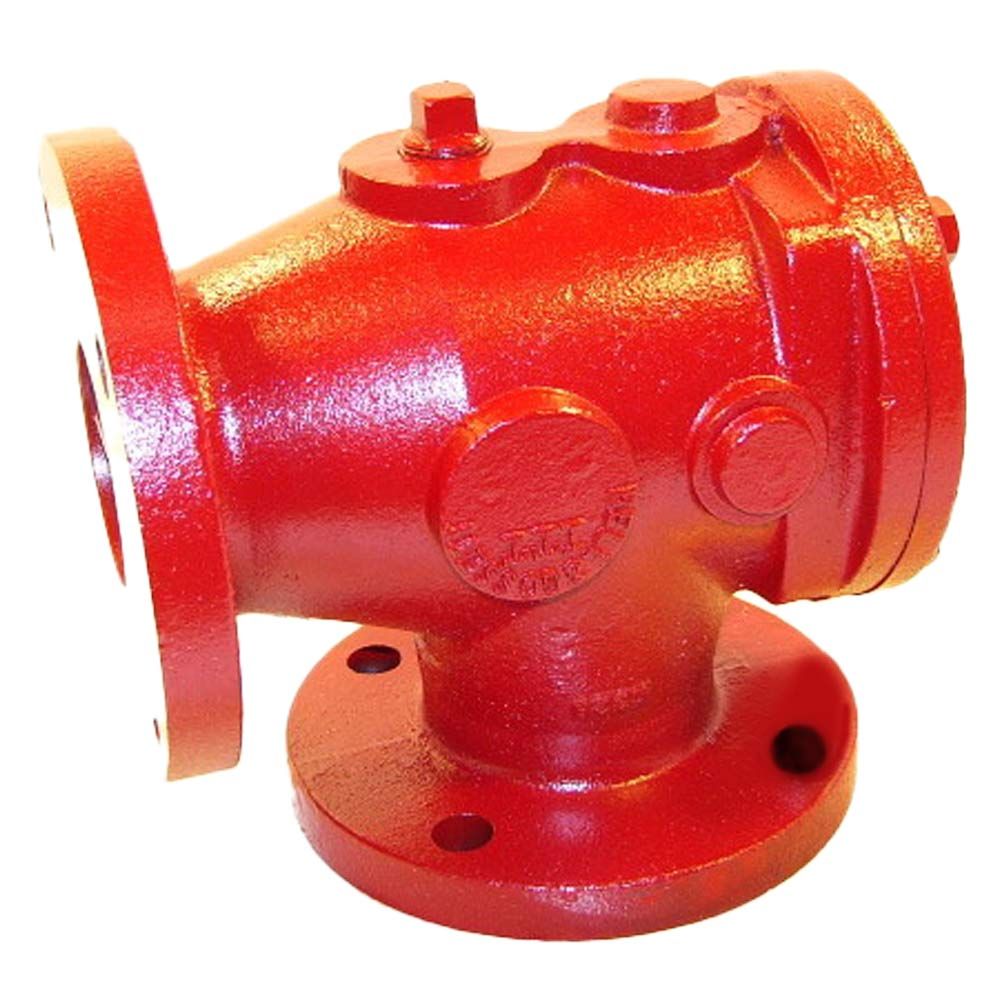

BELL & GOSSETT 115120 DD-3X Suction Diffuser Plus 3 Inch Flanged x 3 Inch Flanged Connection

Product Description

Explore the efficiency of the BELL & GOSSETT 115120 DD-3X Suction Diffuser Plus, designed for optimal operation in HVAC systems. This robust suction diffuser features a 3 inch flanged connection on both the system and pump sides, housed within a durable cast iron body.

• Designed for a maximum working pressure of 175 psi.
• Supports temperatures up to 250 degrees Fahrenheit.
• Incorporates an EPDM o-ring and a 16 mesh bronze strainer for efficient operation.

Product Highlights

Engineered to enhance pump efficiency and extend lifespan by optimizing flow and reducing turbulence. Its compact structure allows for installation in restricted spaces without sacrificing performance.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Model: DD-3X

Technical Specifications

• Connection Type: Flanged
• Body Material: Cast Iron
• Maximum Pressure: 175 psi
• Maximum Temperature: 250 degrees Fahrenheit
