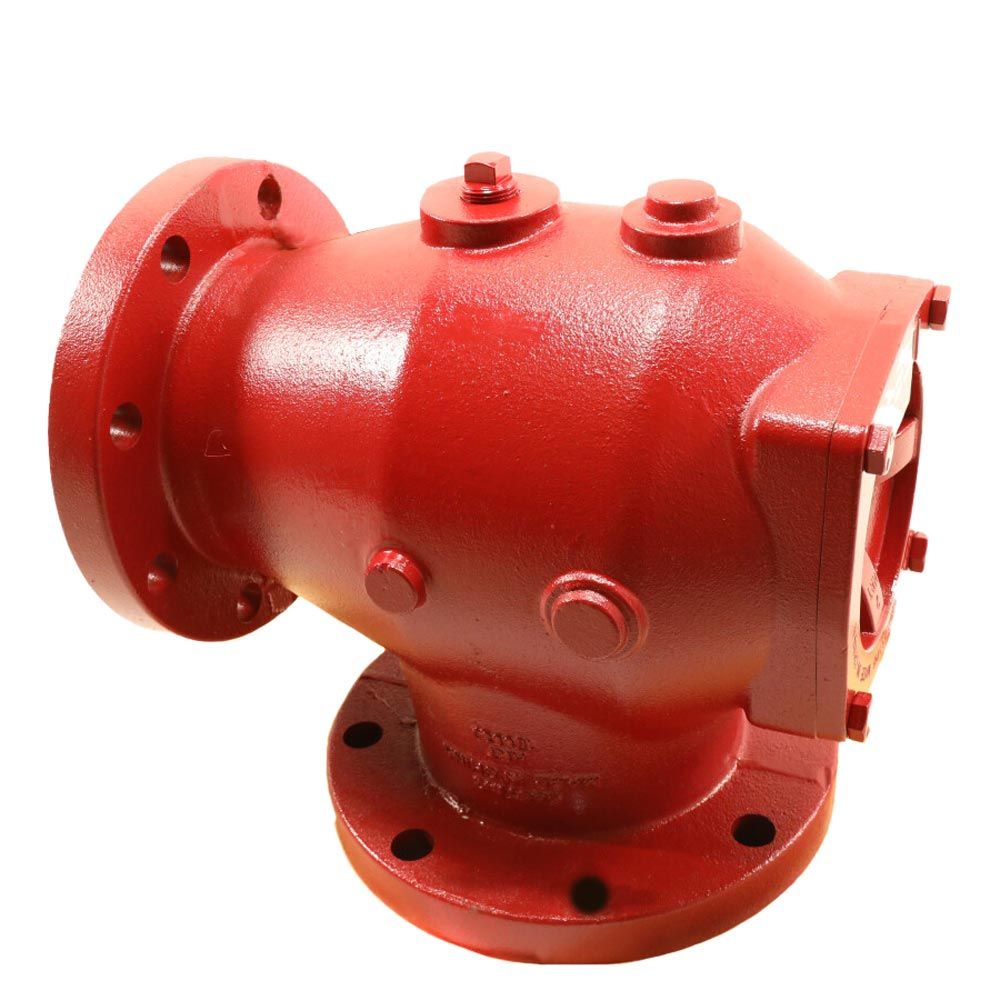

Bell & Gossett 115111 Suction Diffuser Plus 6 inch Flg x 5 inch Flg

Product Description

The Bell & Gossett GF-3X Suction Diffuser Plus model 115111 is engineered for efficient flow management in HVAC and general pumping applications. This robust suction diffuser features a durable cast iron body designed to connect a 6 inch system side flange to a 5 inch pump side flange.

• Maximizes pump efficiency by conditioning flow into the pump suction
• Features a 16 mesh bronze strainer and EPDM o-ring for enhanced durability
• Suitable for environments with pressures up to 175 psi and temperatures up to 250 degrees Fahrenheit

Key Product Highlights

This suction diffuser serves multiple functions including acting as an elbow which connects return piping to pump suction, optimizing space and enhancing efficiency. Its internal components are removable, simplifying maintenance and replacement processes.

Product Specifications

• Brand: Bell & Gossett
• MPN: 115111
• Material: Cast Iron
• Operating Pressure: Up to 175 psi
• Operating Temperature: Up to 250 degrees Fahrenheit
• Connection Type: Flanged (6 inch x 5 inch)
• Key Features: EPDM O-ring, 16 mesh bronze strainer
