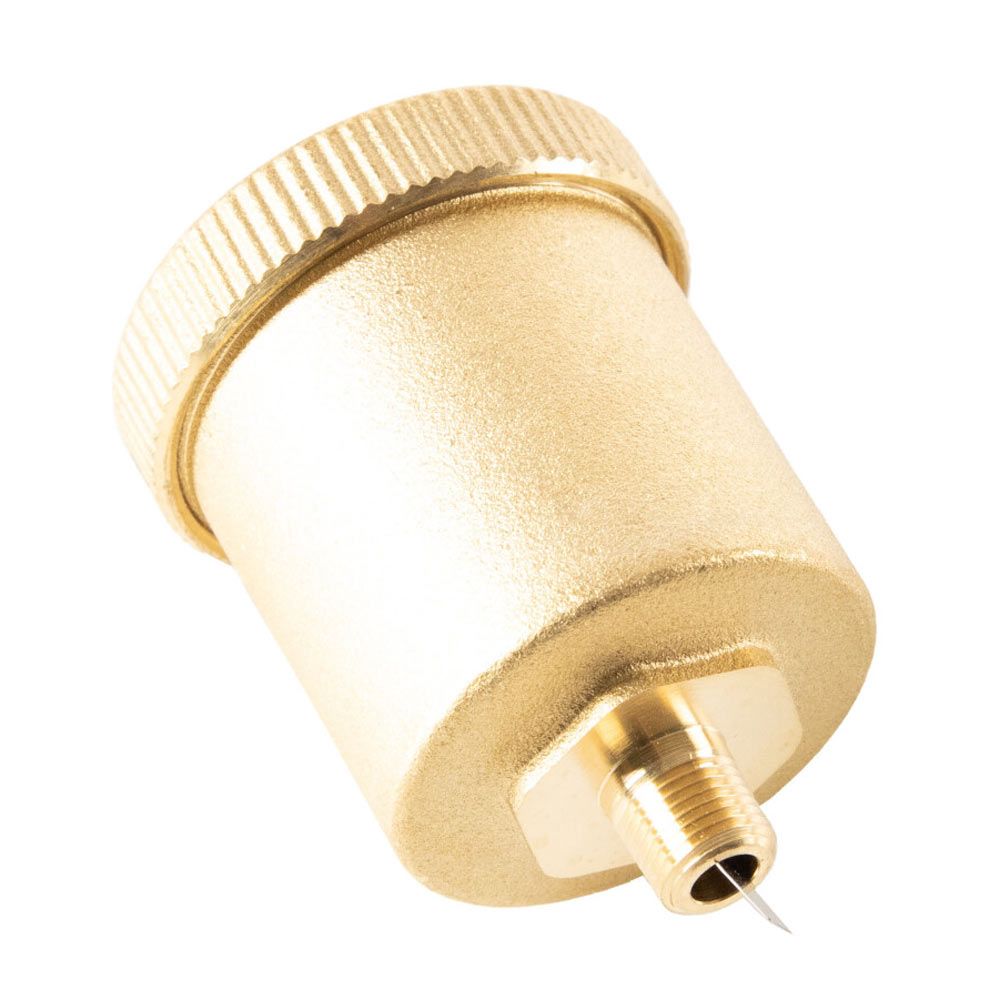

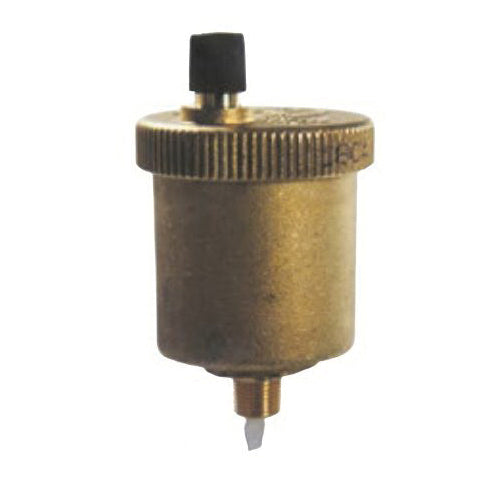

Bell & Gossett 113222 Automatic Air Vent 1/8 in MNPT 150 psig 240 deg F

Product Description

The Bell & Gossett 113222 is an automatic air vent designed for use in hydronic heating systems. It features a nominal size of one-eighth inch and a male NPT connection. This air vent operates at a working pressure of one hundred fifty psig and is rated for a maximum temperature of two hundred forty degrees Fahrenheit. Constructed with a brass body and non-ferrous internals, it provides reliability and longevity.

• Float type design for effective air venting
• Compact dimensions of one and seven-eighths inches wide by three and one-eighth inches high
• Ideal for hydronic system applications

Product Highlights

This air vent effectively releases trapped air to maintain system efficiency.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• Part Number: 113222

Technical Specifications

• Connection Type: MNPT
• Dimensions: 1-7/8 in W x 3-1/8 in H
• Material: Brass
• Nominal Size: 1/8 in
• Temperature Rating: 240 deg F
• Working Pressure: 150 psig
