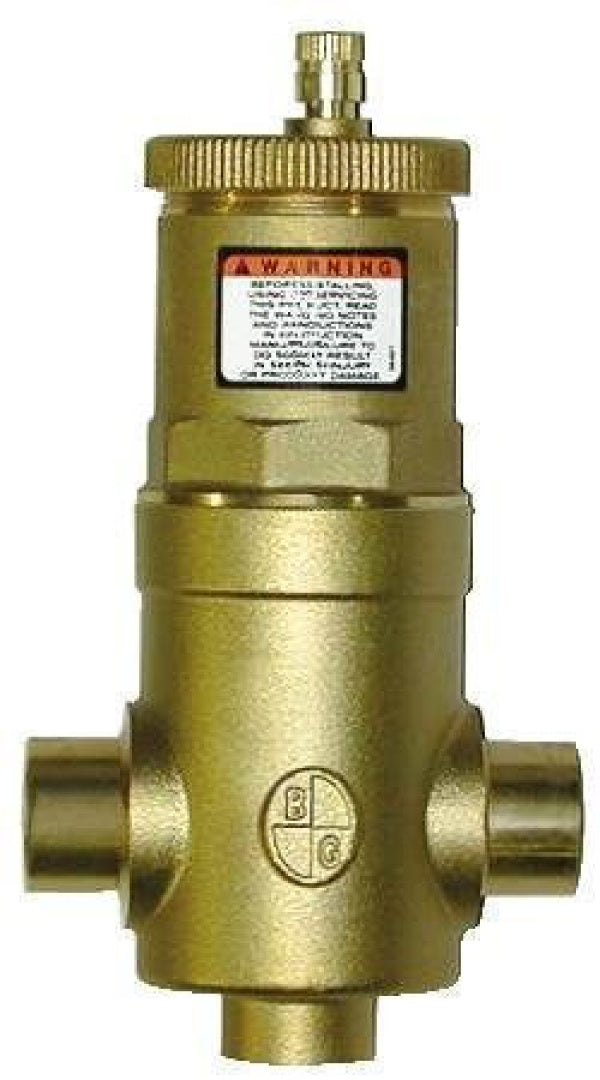

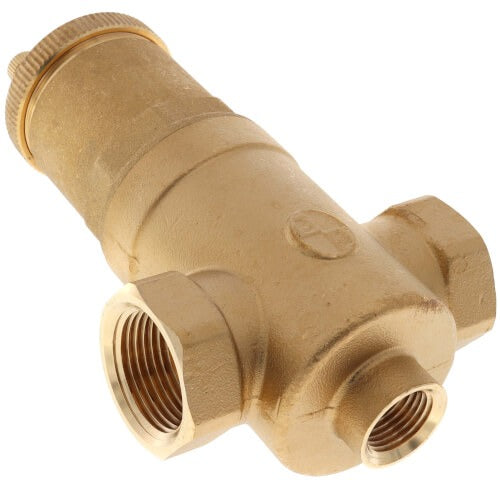

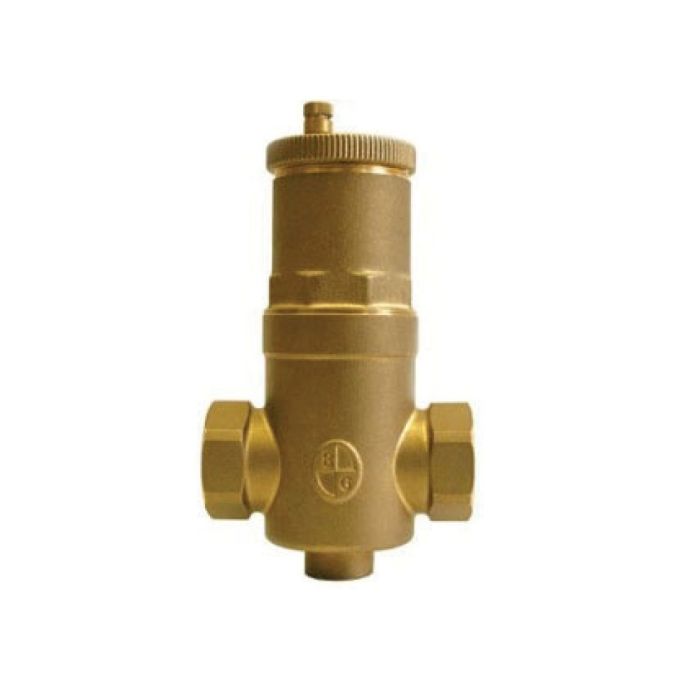

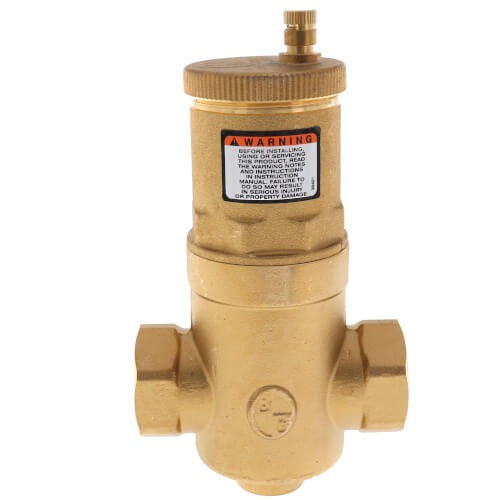

Bell & Gossett 112111 EASB-3/4 JR Air Separator (3/4 Inch) EASB-3/4-JR

Product Description

Bell & Gossett 112111 is an EASB-JR enhanced micro-bubble air separator for residential and commercial hydronic heating systems. The brass inline unit uses a stainless steel coalescing medium and a built-in automatic air vent to collect and expel entrained micro-bubbles while deaerated fluid continues through the system. Nominal 3/4 in female-threaded connections, bottom 1/2 in tank connection, recommended flow 6 GPM, 150 PSI max, 250°F max, end-to-end 3-5/8 in.

• Brass body with stainless steel coalescing medium and non-ferrous automatic venting mechanism.
• Nominal 3/4 in female-threaded connections (FNPT x FNPT) and 1/2 in female bottom tank connection; end-to-end 3-5/8 in.
• Rated to 150 PSI and 250°F with recommended maximum flow 6 GPM; compact design with no minimum straight-pipe requirement.

Product Highlights

Enhanced micro-bubble air separator for hydronic systems — 3/4 in FNPT, 6 GPM, 150 PSI, 250°F.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Manufacturer Part Number: 112111
