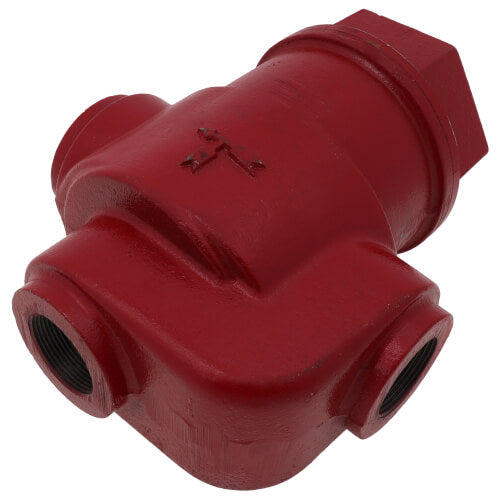

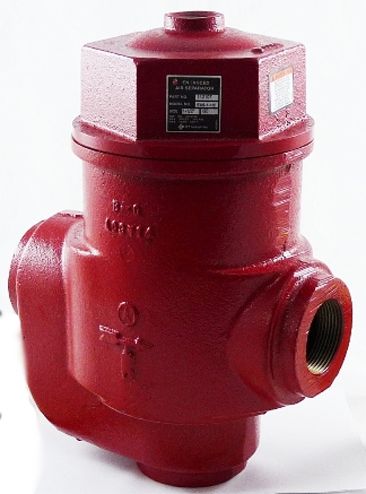

Bell & Gossett 112107 Air Separator EAS 1-1/2 Inch Cast Iron Threaded 150 Pounds per Square Inch Gauge

Product Description

The Bell & Gossett 112107 Air Separator is designed to efficiently remove air from hydronic heating and cooling systems. This air separator features a nominal size of one and one-half inches and a threaded connection. It operates under a maximum pressure of one hundred fifty pounds per square inch and can withstand temperatures up to two hundred fifty degrees Fahrenheit.

• Eliminates air from hydronic systems
• Compact and durable cast iron construction
• Easy installation in straight or angle patterns

Product Highlights

The air separator improves heat transfer by eliminating air pockets. It is compatible with both diaphragm and compression tanks. The stainless steel internal components ensure long-lasting performance.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 112107

Technical Specifications

• Material: Cast Iron
• Nominal Size: 1-1/2 inches
• Connection Type: Threaded
• Max Pressure: 150 psi
• Max Temperature: 250 degrees Fahrenheit
• Flow Rate: 45 gpm
• Dimensions: 15-3/4 inches L x 5-3/4 inches W x 8-5/8 inches H
