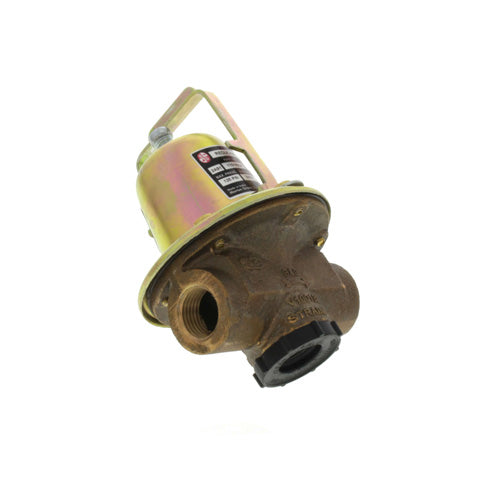

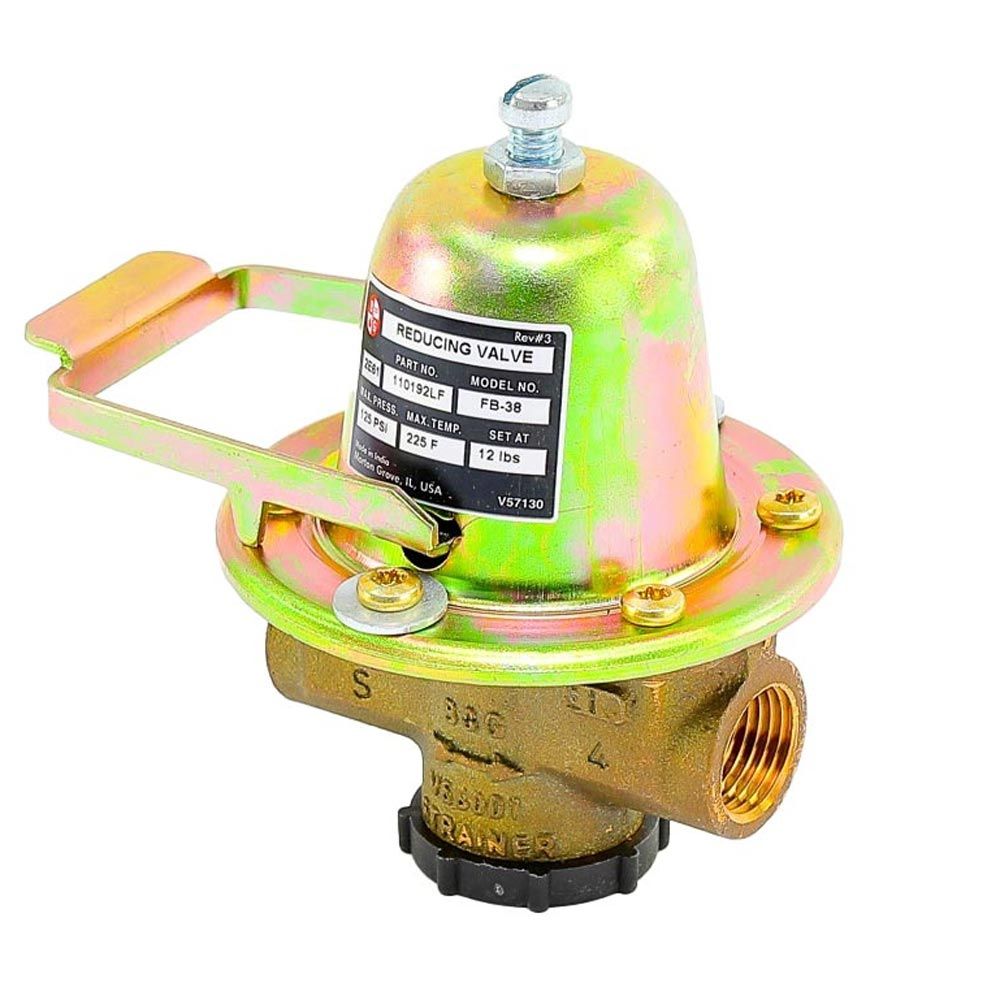

Bell & Gossett 110192LF - FB38 Pressure Reducing Valve - Lead Free

Product Description

The Bell & Gossett 110192LF is a reliable pressure reducing valve designed for low-pressure hydronic systems. This valve features a one-half inch female NPT connection and is factory set to twelve psi, with an adjustable range of ten to twenty-five psi. Made from lead-free brass, it meets safety standards for potable water systems.

• Lead-free construction for safe use in potable water
• Fast-fill feature minimizes start-up time
• Built-in strainer prevents dirt and sediment from entering the system

Product Highlights

The Bell & Gossett 110192LF valve protects heating and plumbing systems from excessive line pressures. It is equipped with a low inlet pressure check valve to maintain system pressure during operation.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 110192LF

Technical Specifications

• Connection Size: 1/2 inch
• Material: Brass
• Pressure Setting: 12 psi factory setting, adjustable from 10 to 25 psi
• Maximum Pressure: 125 psi
• Flow Rate: 5.5 to 6 gallons per minute at 125 psi
• Temperature Rating: 225 degrees Fahrenheit
• Dimensions: 3-1/16 inches wide x 4-7/8 inches high
