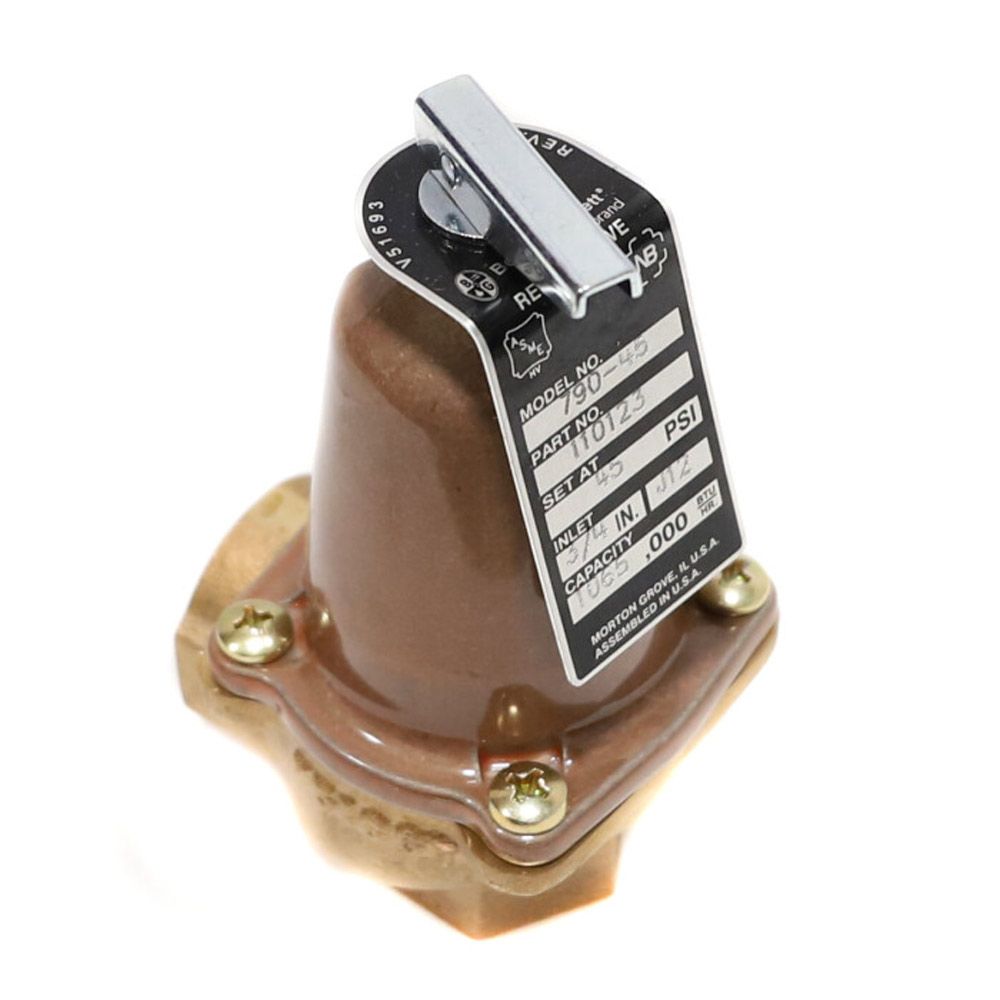

Bell & Gossett 110123 790 45 ASME Relief Valve

Product Description

Bell & Gossett 110123 is a 790 45 ASME relief valve designed for hot water systems. This valve is engineered to handle pressures up to 125 PSIG and has a temperature rating of 250 degrees Fahrenheit. It features a brass body and is suitable for both fired and unfired hot water vessels, ensuring safety against overpressure conditions.

• Max pressure rating of 125 PSIG
• Temperature resistance up to 250 degrees Fahrenheit
• Brass body for corrosion resistance

Product Highlights

This relief valve is critical for maintaining the pressure within safe limits in HVAC systems. Its compact design allows for easy installation in various configurations.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Bell & Gossett

Technical Specifications

• MPN: 110123
• Nominal Size: 3/4 inches
• End Style: NPT
• Nominal Capacity: 1,065,000 BTU/hr
• Body Material: Brass
• Trim Material: EPDM
• Dimensions: 2-9/16 inches by 4-9/16 inches
• Pressure Rating: 125 PSIG
• Temperature Rating: 250 degrees Fahrenheit
