Bell & Gossett 107037 B&G 107037 - HT 1 NPT Iron Body Flow-Control Valve

Product Description

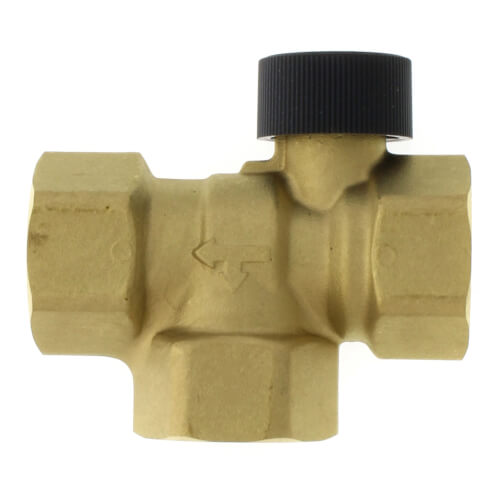

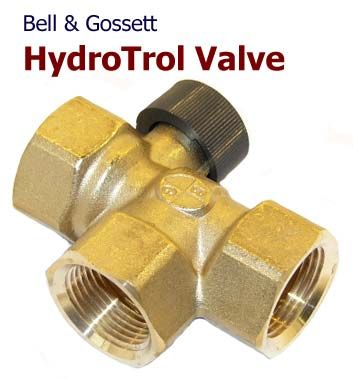

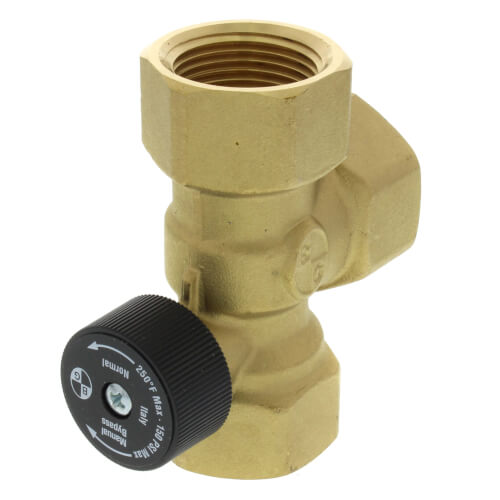

Bell & Gossett model 107037 is a hydrotrol flow-control valve. It features a combination straight and angle-pattern design. This valve can be installed either vertically or horizontally. Its ductile iron body can function under a maximum pressure of 150 psi and a temperature of 250°F.

• Combines straight and angle-pattern flow control.
• Can be used for both horizontal and vertical installations.
• Constructed with a ductile iron body.

Product Highlights

The hydrotrol valve is designed to manage fluid movement effectively in hydronic heating systems. It prevents overheating in specific zones and allows for independent operation of indirect water heaters throughout different seasons.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 107037

Technical Specifications

• Model: HT-1
• Valve Size: 1 inch
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Iron
• Valve Application: Water
• Max Pressure: 125 psi WOG
• Weight: 1.20 pounds
