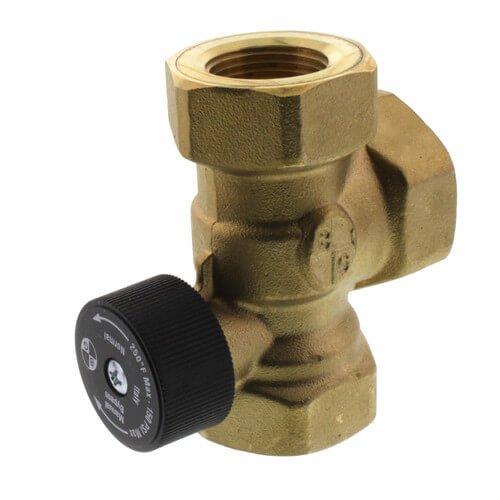

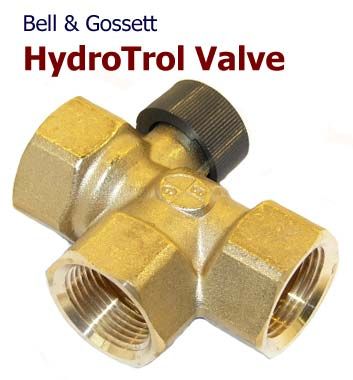

Bell & Gossett 107035 3/4 NPT Bronze HydroTrol Flow Control Valve

Product Description

The Bell & Gossett 107035 is a 3/4 NPT Bronze HydroTrol flow control valve designed for use in hydronic heating systems. This valve is for non-potable applications only and does not meet the Safe Drinking Water Act standards for low-lead products. It is suitable for preventing overheating in heating systems due to gravity flow.

• Maximum working pressure of 150 psi
• Maximum operating temperature of 250°F
• Compact design allows for vertical or horizontal installation

Product Highlights

The HydroTrol valve features an elastomer seal that ensures a positive shutoff, eliminating the need for an additional isolation valve. Its brass body with non-ferrous internals guarantees durability and longevity in heating applications.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 107035

Technical Specifications

• Valve Type: Flow Control Valve
• Connection Type: FNPT x FNPT
• Body Material: Bronze
• Position: Vertical/Horizontal
• Max Pressure: 150 psi
• Operating Temperature: 250°F
• Application: Heating Systems
• Size: 3/4 NPT
