Bell & Gossett 106514LF LR-15B Bronze Circulator Pump 1/12 HP 115V

Product Description

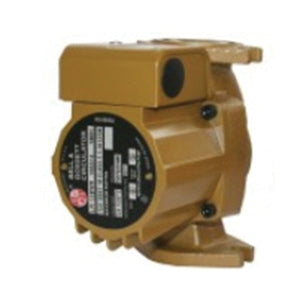

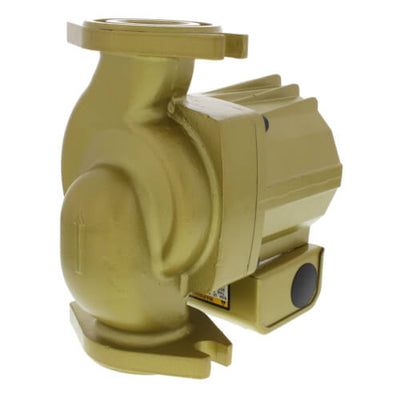

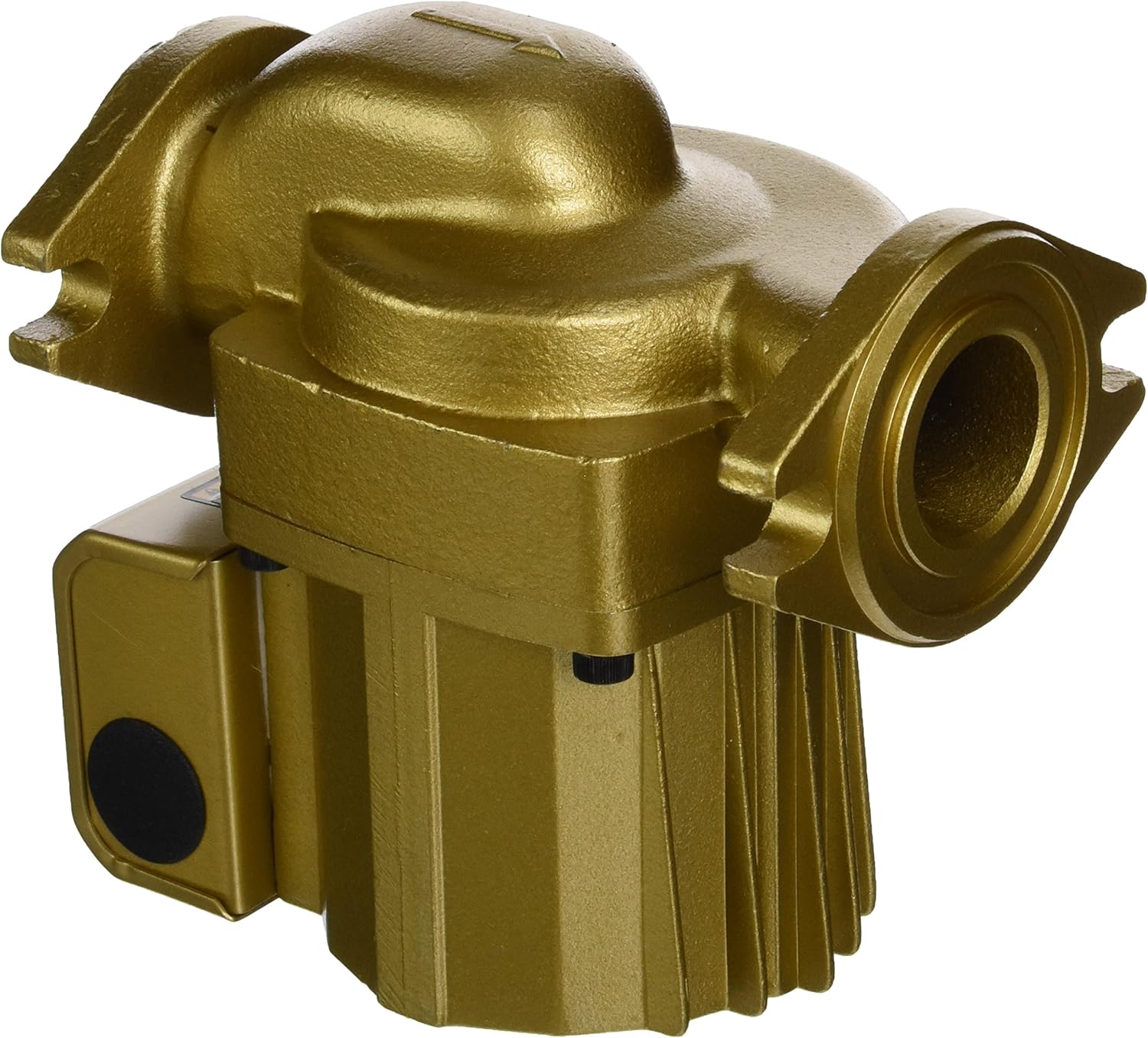

The Bell & Gossett 106514LF is a one-twelfths horsepower bronze circulator pump designed for a wide range of applications. This circulator pump is specifically engineered for hydronic heating systems and provides reliable performance for both residential and light commercial use. The pump operates on 115 volts and is suited for use in closed loop systems.

• Designed for quiet operation in hydronic heating systems.
• Features a lead-free bronze construction for potable water applications.
• Maximum flow rate of thirty-seven gallons per minute with a maximum head of twelve feet.

Product Highlights

This circulator pump is built for durability and efficiency.

Product Information

Standard Information

• Brand: Bell & Gossett
• Type: Circulator Pump

Technical Specifications

• Model: LR-15BWR
• Horsepower: 1/12 hp
• Voltage: 115 VAC
• Amperage: 1.1 A
• Flow Rate: 37 gpm
• Maximum Head: 12 ft
• Pressure Rating: 150 psig
• Dimensions: 6 in W x 6-3/8 in H x 3-7/8 in D
• Temperature Rating: 225 deg F
• Impeller Material: Noryl
• Motor Speed: 2950 rpm
• Connection Size: 3/4, 1, 1-1/4, and 1-1/2 in NPT Flange
