Bell & Gossett 106190 Series 100 BI Iron Body Bronze Impeller Pump 1/12 HP

Product Description

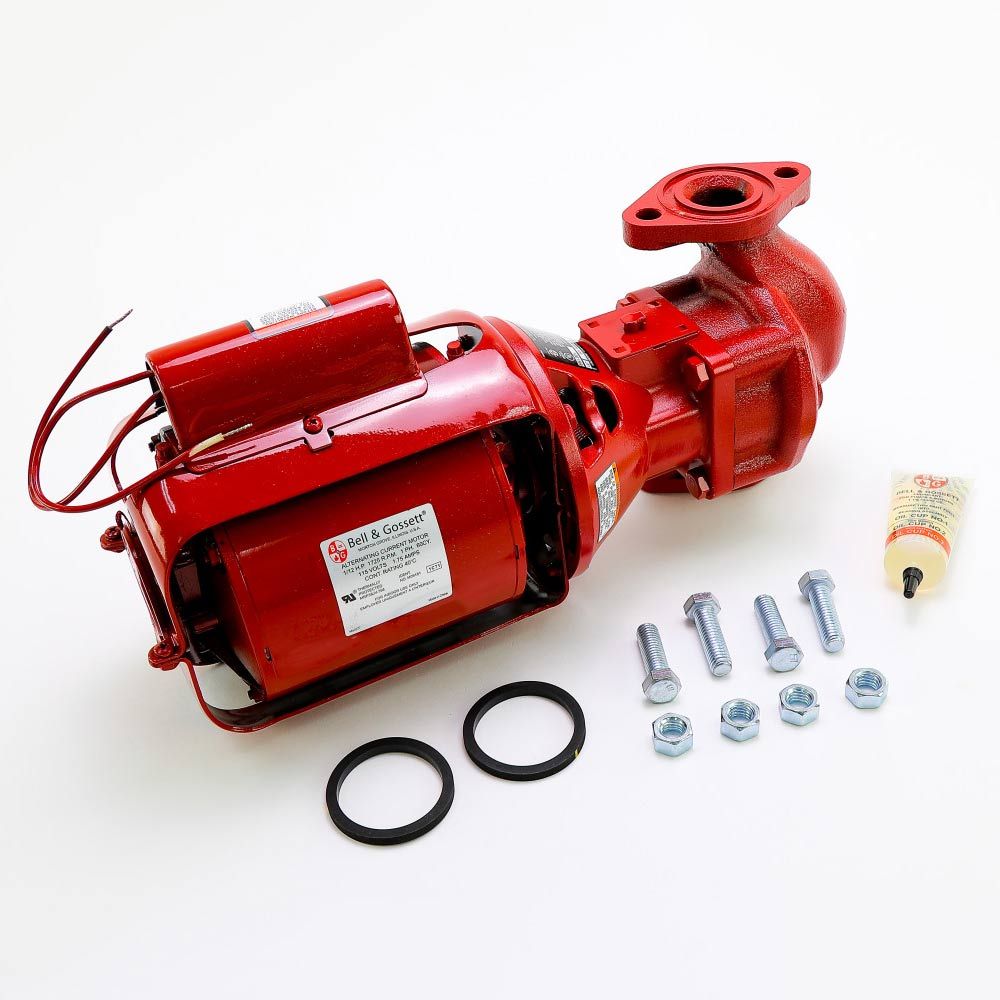

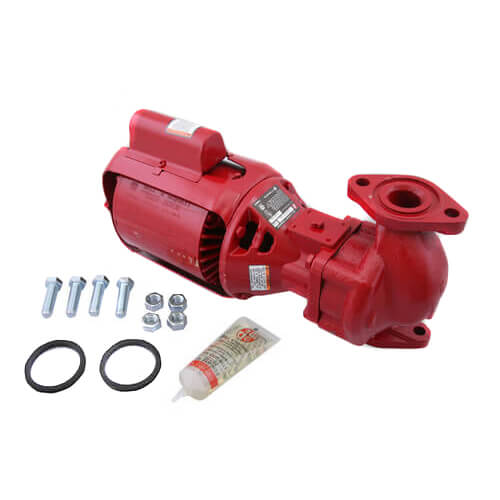

The Bell & Gossett Series 100 BI Circulator Pump, model 106190, is engineered for reliable operation in residential and light commercial hydronic heating applications. With its iron body and bronze impeller, the pump provides durability and corrosion resistance, operating at a power of 1/12 horsepower and 115 volts.

• Engineered for optimal hydraulic performance.
• Easy maintenance with oil-lubricated motor and replaceable parts.
• Quiet operation suitable for heating and water circulation systems.

Product Highlights

This high-efficiency circulator offers easy field serviceability. Its precision-ground pump shaft and oversized bearings ensure long life and reliability. The design minimizes system noise and vibration, making it a preferred choice in the industry.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 106190

Technical Specifications

• Power Rating: 1/12 HP
• Motor Speed: 1725 RPM
• Voltage: 115V
• Frequency: 60 Hz
• Phase: 1 ph
• Impeller Size: 2-3/4 inches
• Max Pressure: 125 psi
• Max Temperature: 225°F
