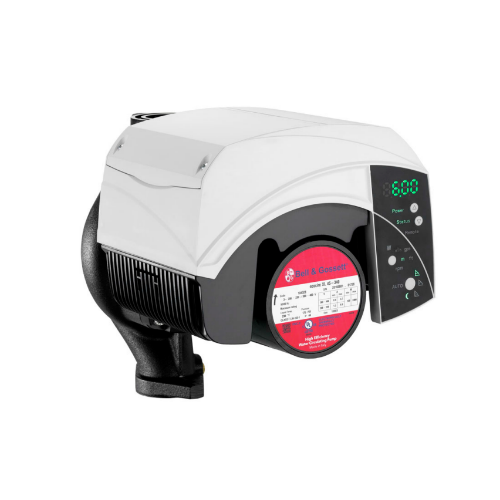

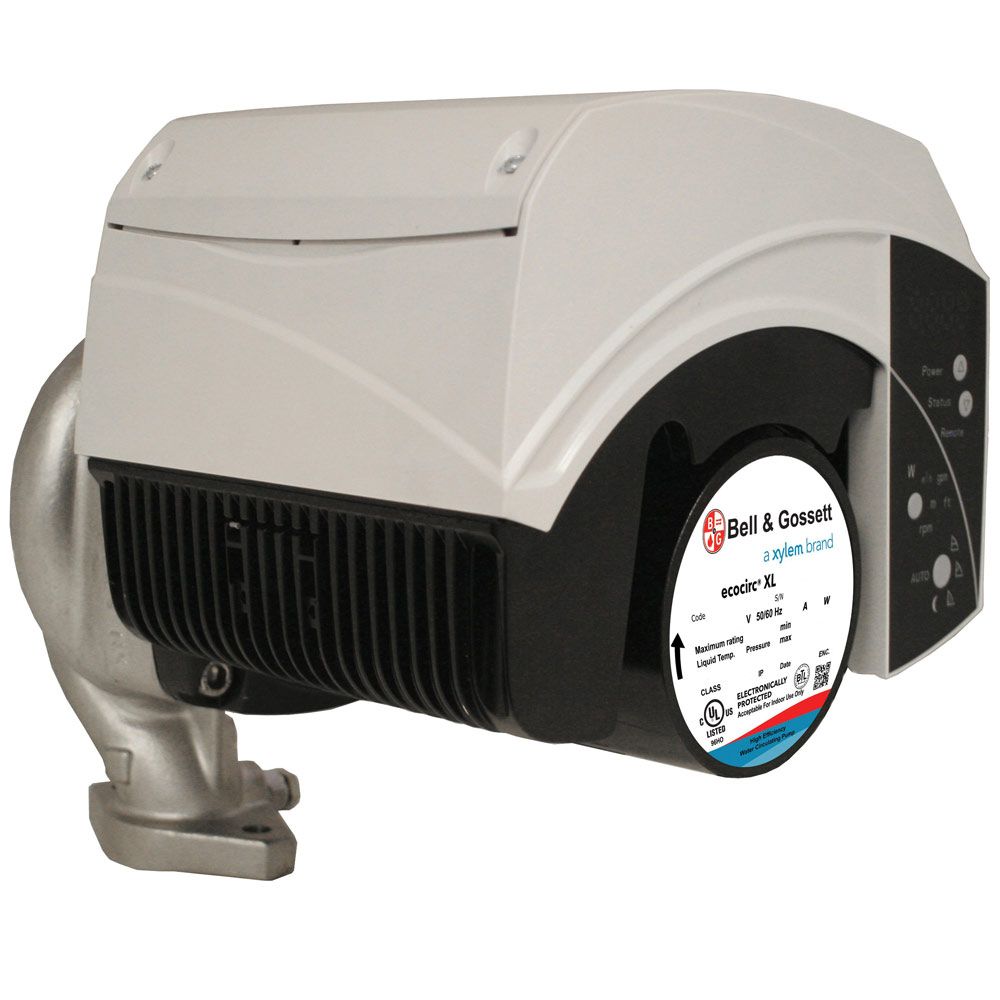

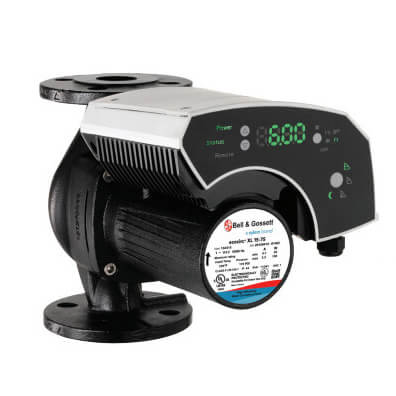

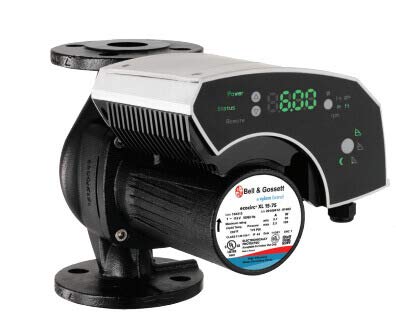

Bell & Gossett 104459LF Ecocirc XL 65-130 Stainless Steel Circulator 1 HP 208-230V REPLACES 104409LF

Product Description

The BELL & GOSSETT 104459LF Ecocirc XL line enhances commercial hydronic systems with quality and dependability. This high-efficiency large wet rotor circulator features state-of-the-art hydraulics, advanced motor design, intelligent controls, and smart communication. Ideal for HVAC and plumbing applications, it has a maximum operating temperature of 230°F and a maximum working pressure of 175 psi.

• Economical operation with efficient ECM motor and optimized hydraulics
• Suitable for chilled water applications with electronics separated to prevent condensation
• User-friendly interface with four logically placed buttons for easy operation

Product Highlights

High-efficiency circulator with ECM motor, ideal for HVAC and plumbing, offering multiple control options and pump protection.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Manufacturer Part Number: 104459LF

Technical Specifications

• Manufacturer: Bell & Gossett
• Brand: Bell & Gossett
• MPN: 104459LF
• Pump Type: Circulator
• B&G Series: Series ecocirc XL
• Model: XL N 65-130
• Pump Construction: Stainless Steel-SS
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: 1", 1-1/4", 1-1/2"
• Pump Connection: Flanged
• Flanges Included: No
• Motor HP: 1 HP
• Motor RPM: 1100-3550 RPM
• Motor Voltage: 208-230V
• Motor Phase: 1 Ph
• Motor Hertz: 50/60 Hz
• Max Temp: 230°F
• Potable Water: No
• Replaces: 104409LF
• Alias: XLN65-130
• Amperage Rating: 0.5 to 3.5 A
• Bearing Type: Sleeve
• Enclosure Type: Class 2 IP44/NEMA Type 2
• Flow Rate: 130 gpm
• Frequency Rating: 50/60 Hz
• Impeller Type: Poly-Phenylene Sulfide/Stainless Steel
• Maximum Head: 65 ft
• Maximum Pressure: 175 psi
• Power Rating: 45 to 825 W
• Temperature Rating: 14 to 230 deg F
• Type: High Efficiency Large
• Voltage Rating: 208 to 230 V
• Material: Stainless Steel
• Horse Power: 1
• Watts Range: 45 - 825
• Amp Range: 0.5 - 3.5
• Connection Size: 1 in, 1-1/4 in, 1-1/2 in
• Connection Type: NPT
• Application: Chilled Water, Domestic Hot Water
• Lead Free: Yes
