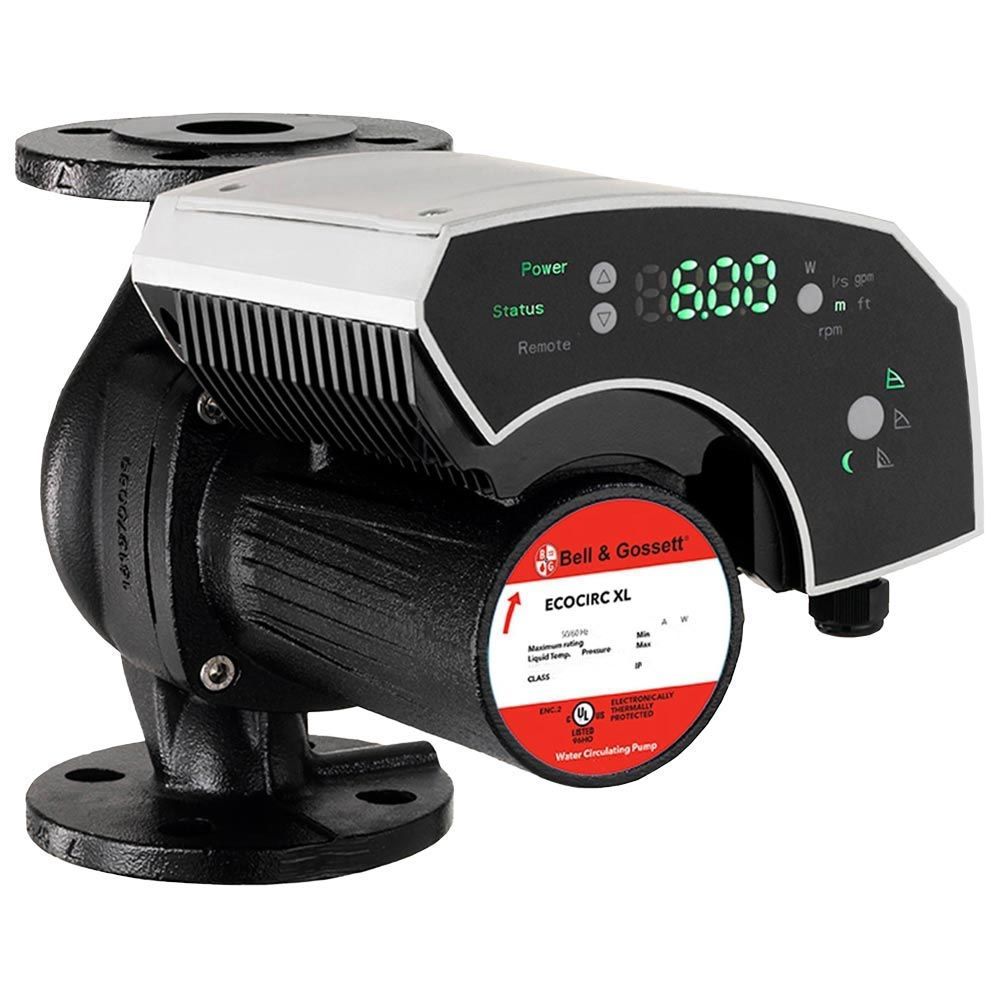

Bell & Gossett 104308 Ecocirc XL 20-140 1/2HP 208-230V 1Ph

Product Description

The Bell & Gossett 104308 Ecocirc XL 20-140 circulator pump is engineered for optimal performance in commercial HVAC and plumbing applications. Featuring an electronically commutated motor and advanced hydraulics, this pump offers efficient operation and superior quality.

• Low energy consumption with ECM technology
• Optimal hydraulic performance for diverse applications
• Easy integration and operation with intuitive controls

Product Highlights

This high-efficiency pump is designed to handle a maximum flow of 140 gallons per minute and achieves up to 175 psi of pressure, suitable for both single and three-phase motor configurations. With a maximum operating temperature of 230 degrees Fahrenheit, it ensures reliable performance under various system conditions.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 104308

Technical Specifications

• Power Rating: 1/2 HP
• Voltage Rating: 208 to 230 V
• Phase: 1 Ph
• Frequency Rating: 50/60 Hz
• Flow Rate: 140 gpm
• Max Head: 20 ft
• Max Pressure: 175 psi
• Temperature Rating: 230 deg F
