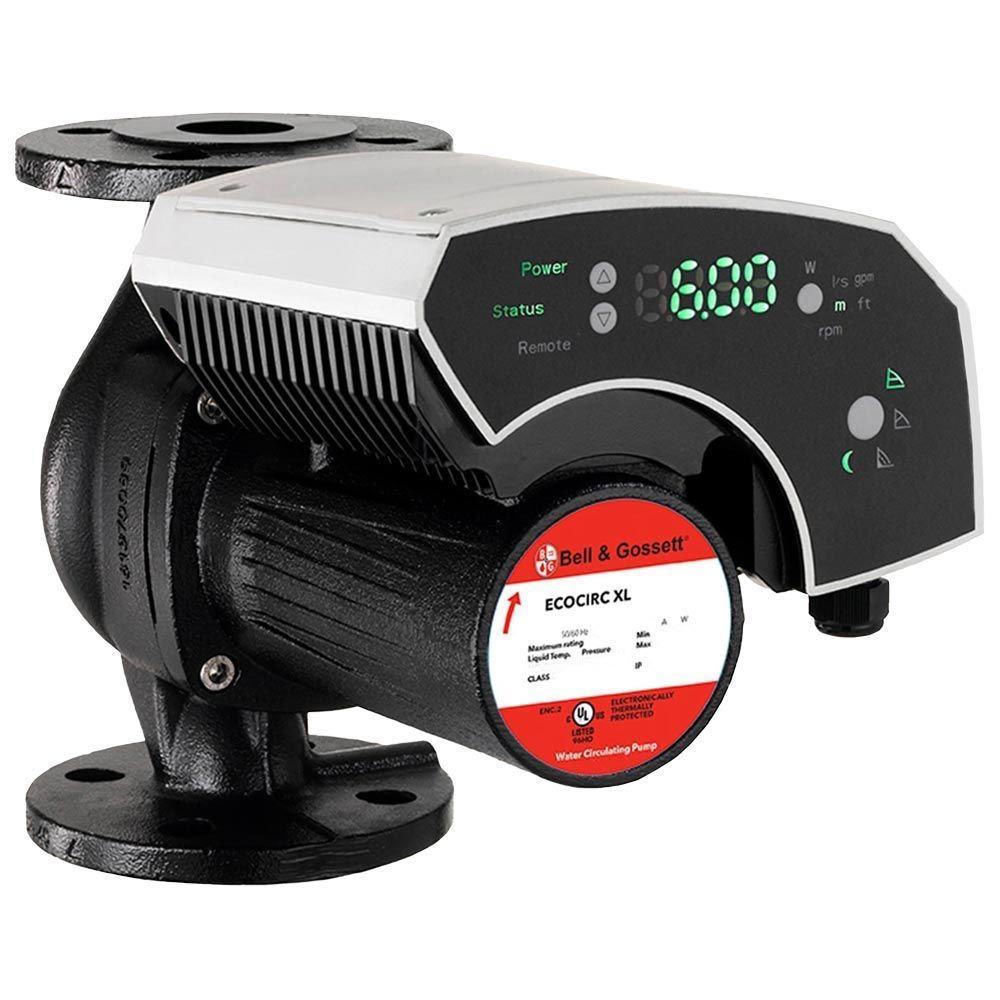

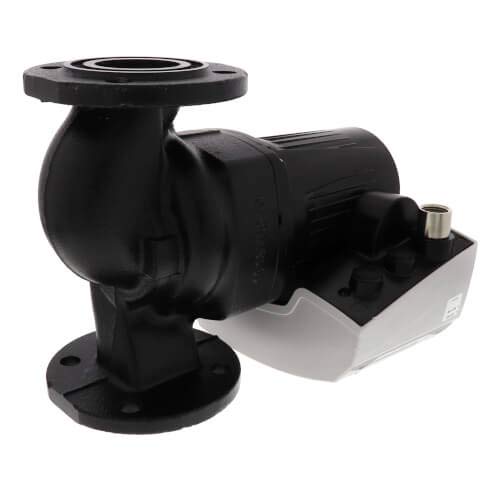

Bell & Gossett 104303 Ecocirc XL 15-75 Cast Iron Circulator, Flanged (1/6 HP, 115V)

Product Description

The Bell & Gossett 104303 Ecocirc XL is a cast iron circulator designed for HVAC systems. This unit features a 1/6 horsepower motor and operates at a voltage of 115V. Its efficient design makes it suitable for use in chilled water applications and closed loop hydronic systems.

• High efficiency ECM motor
• Flow rate of seventy-five gallons per minute
• Compact size for easy installation

Product Highlights

The circulator is designed with advanced hydraulics and intelligent controls, making it reliable for various plumbing applications.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• MPN: 104303

Technical Specifications

• Power Rating: 1/6 hp
• Voltage Rating: 115V
• Flow Rate: 75 gpm
• Maximum Head: 15 ft
• Maximum Pressure: 175 psi
• Temperature Rating: 230 deg F

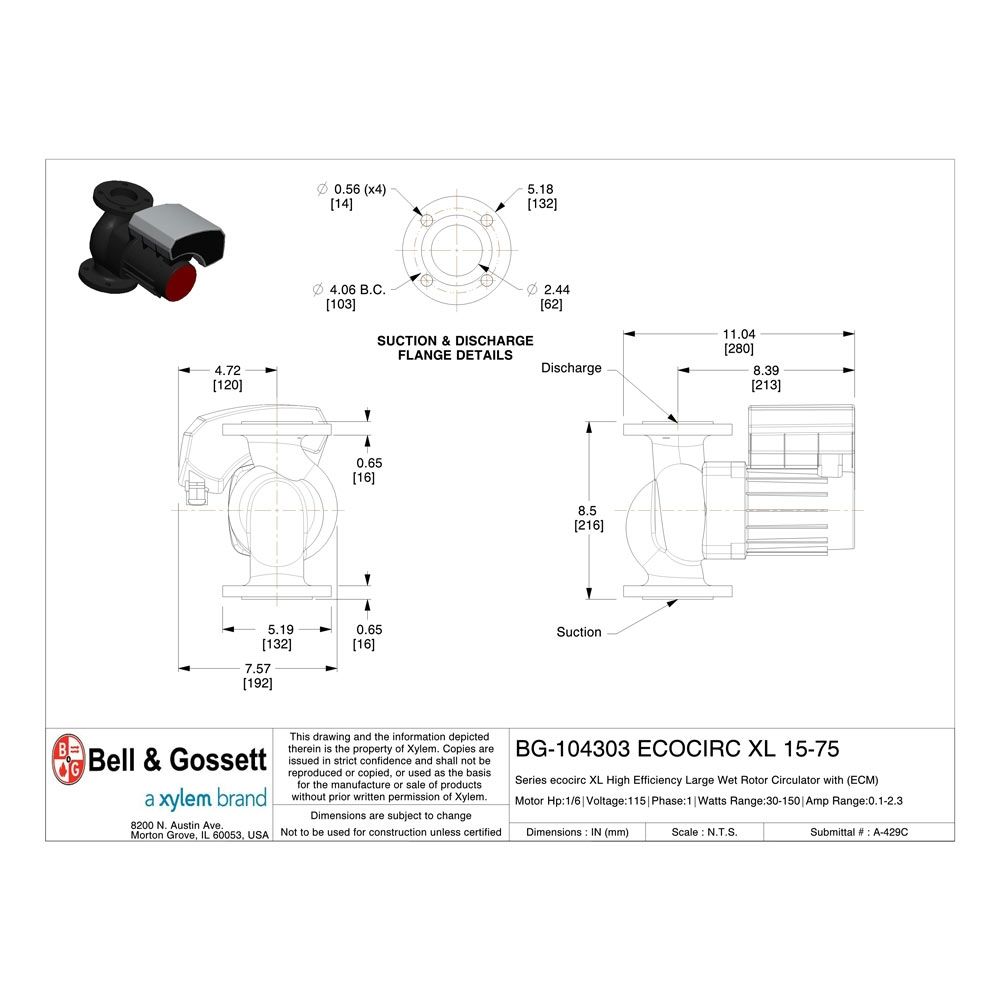

• Dimensions: 7.57 in L x 11.04 in W x 8.5 in H
• Bearing Type: Sleeve
• Phase: 1 ph
• Amperage Rating: 0.1 to 2.3 A
• Frequency Rating: 50/60 Hz
• Impeller Type: Poly-Phenylene Sulfide/Stainless Steel
• Enclosure Type: Class 2 IP44/NEMA Type 2
