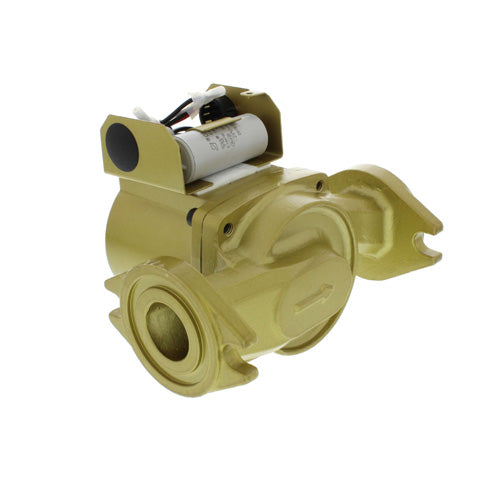

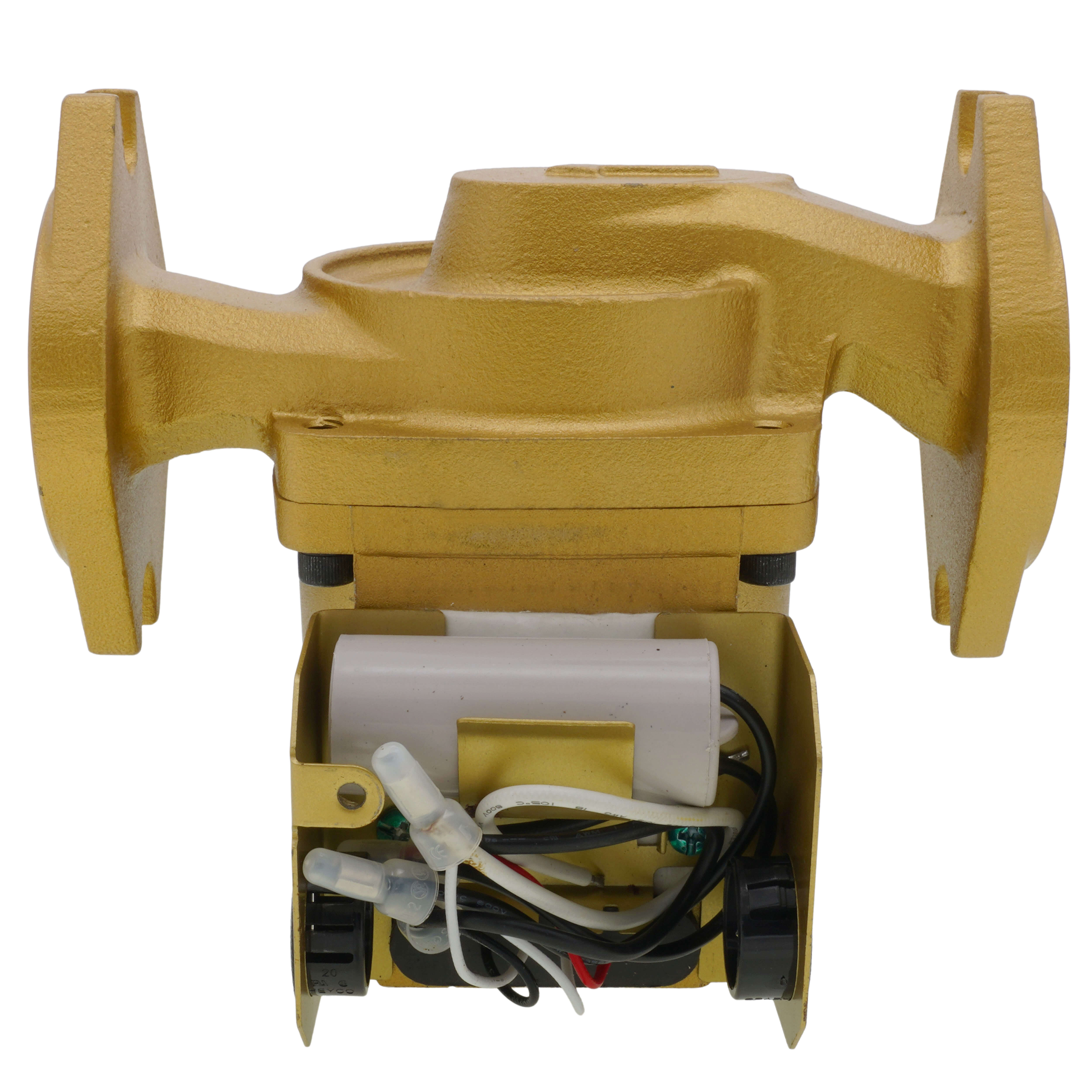

Bell & Gossett 103260LF NBF-12F/LW Bronze Circulator Pump 1/40 hp

Product Description

The Bell & Gossett 103260LF, also known as the NBF-12F/LW, is a bronze circulator pump with a power rating of 1/40 horsepower. This pump is designed for efficient operation in heating systems and other applications requiring water circulation. Key features include a maximum flow rate of seventeen gallons per minute and a maximum head of twelve feet. The pump operates at a voltage of one hundred fifteen VAC with a frequency of sixty Hertz, making it suitable for most standard setups. It is compactly designed with dimensions of four point eight inches in width, five point six inches in depth, and six point three inches in height.

• Flow Rate: 17 gpm
• Maximum Head: 12 ft
• Material: Lead-free bronze

Product Highlights

This pump features a low-watt, energy-saving design, ensuring quiet and efficient operation. It incorporates a Dura-Glide bearing system for maintenance-free use and is entirely lead-free, making it safe for drinking water applications.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Xylem

Technical Specifications

• HP Rating: 1/40 hp
• Voltage Rating: 115 VAC
• Amperage Rating: 0.48 A
• Motor Speed: 2800 rpm
• Maximum Pressure: 150 psi
• Connection Size: 3/4, 1, 1-1/4, 1-1/2 in Flanged
• Temperature Rating: 40 - 230 deg F
• Flow Rate: 17 gpm
• Maximum Head: 12 ft
