Bell & Gossett 103252 NBF-22 92W (1 Each) 103357

BELL & GOSSETT
Brand: BELL & GOSSETT
SKU: 103252
Availability: In Stock

Ships same day if ordered by 12 pm
$287.47
$287.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

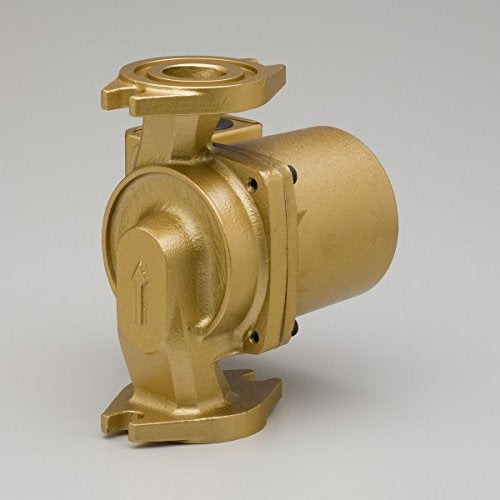

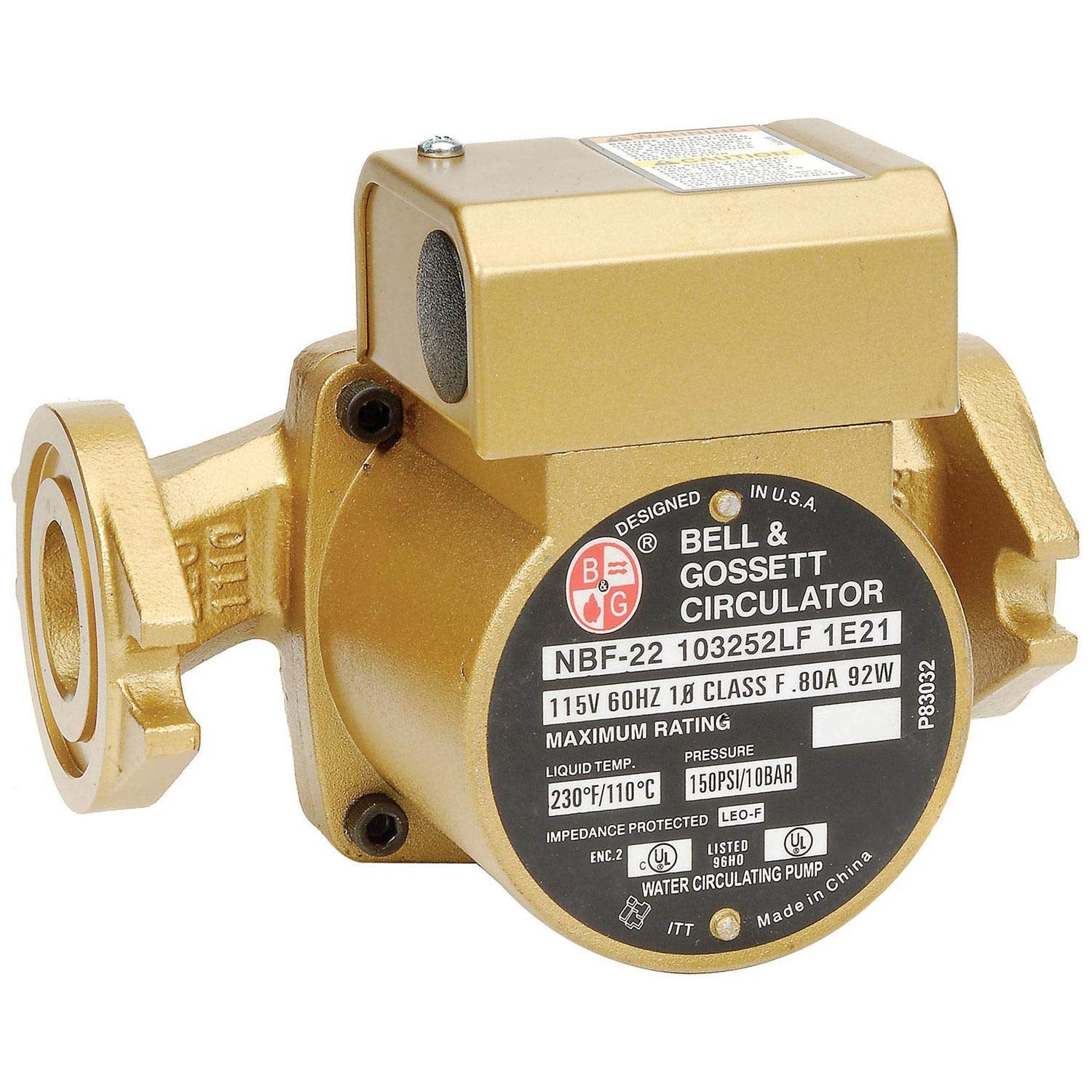

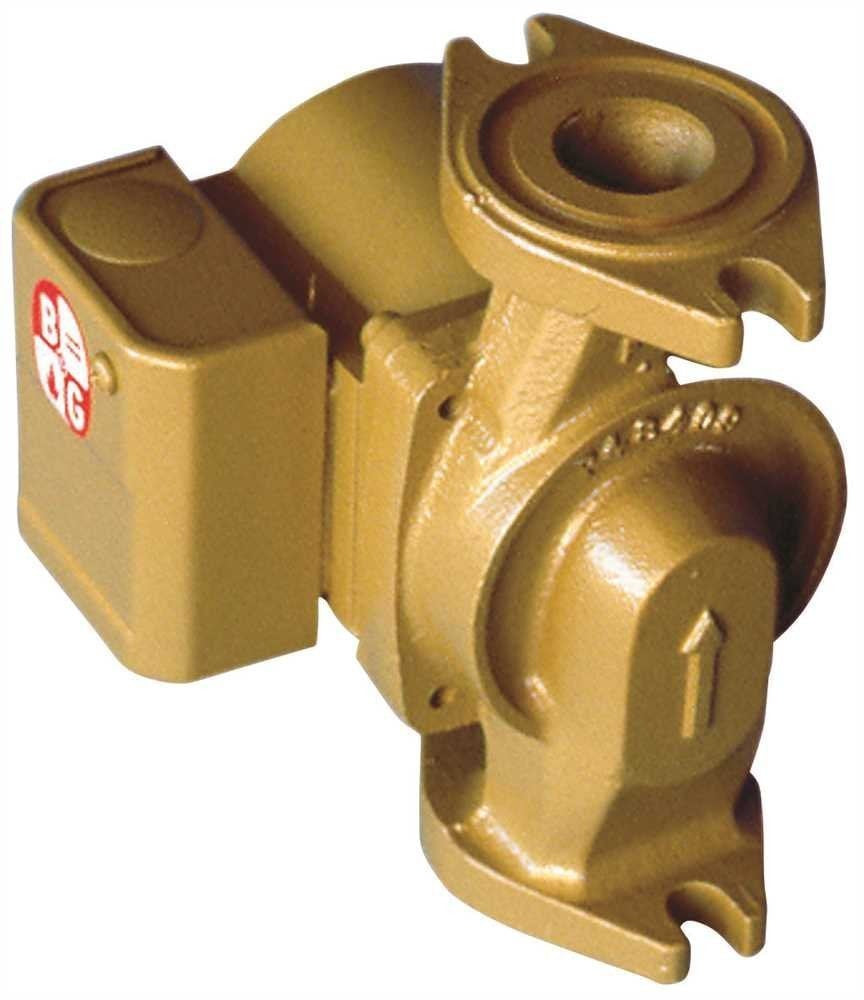

Bell & Gossett 103252 is an NBF-22 wet rotor circulator intended for potable water and light commercial or residential in-line circulation. The pump operates at 115 VAC, 92 W, 0.8 A, 60 Hz with a 2940 rpm motor and a maintenance-free DuraGlide bearing system. It features a 100% lead-free bronze wet rotor construction, maximum working pressure of 150 psi and maximum temperature of 230 F.

  • 115 VAC, 92 W motor; 0.8 A, 60 Hz, 2940 rpm; single-phase in-line wet rotor design
  • 100% lead-free bronze construction suitable for potable water; DuraGlide bearing system for maintenance-free operation
  • Maximum working pressure 150 psi; maximum temperature 230 F; UL and cUL listed; CSA certified to NSF/ANSI 372

Product Highlights

In-line wet rotor circulator for potable water, 115 VAC 92 W single-phase motor, 150 psi/230 F ratings, replacement part 103357

Product Information

Standard Information

  • Brand: BELL & GOSSETT
  • Manufacturer Part Number: 103252
  • Country of Origin: United States
Technical Specifications
Brand
Bell & Gossett
Manufacturer
Bell & Gossett
MPN
103252
Model
NBF-22
Type
Wet rotor circulator (in-line)
Application
Potable water systems; residential or light commercial
Material
100% lead-free bronze (lead-free) — wet rotor
Connection
Flange (flanged models available); union or sweat models also available
Voltage
115 VAC
Power
92 W
Output Current
0.8 A
Frequency
60 Hz
Phase
Single phase
Motor Speed
2940 rpm
Mounting Type
In-line
Rotor
Wet rotor
Bearing System
DuraGlide
Maximum Working Pressure
150 psi
Maximum Temperature
230 F
Certifications
UL and cUL listed; CSA certified to NSF/ANSI 372 (<0.25% lead content by weight on wetted surfaces)
Country of Origin
United States
Replacement MPN
103357
Package Weight (lbs)
7.94
Package Dimensions (inches)
5.63 x 6.65 x 6.97
Additional Features
Ceramic shaft with carbon bearings; bearings lubricated by circulating fluid; rotor sheathed in stainless steel; motor stator isolated from circulating fluid; motors have built-in impedance protection
