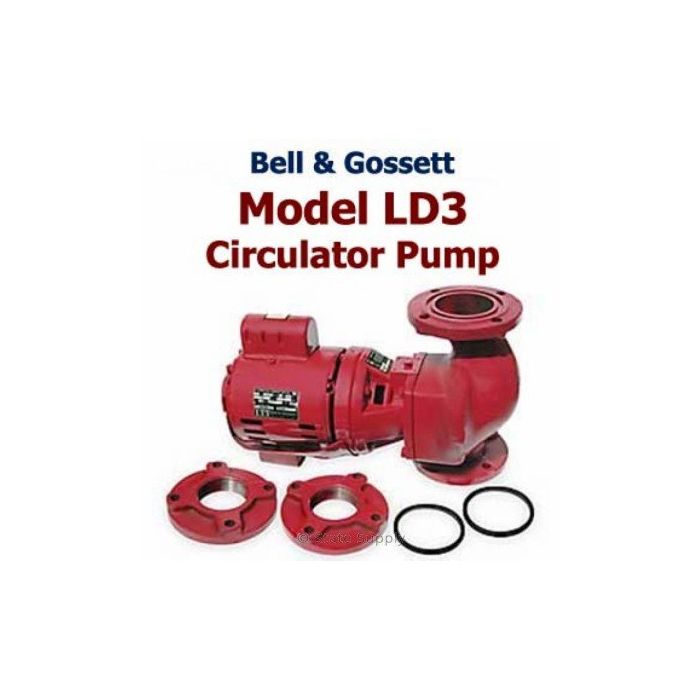

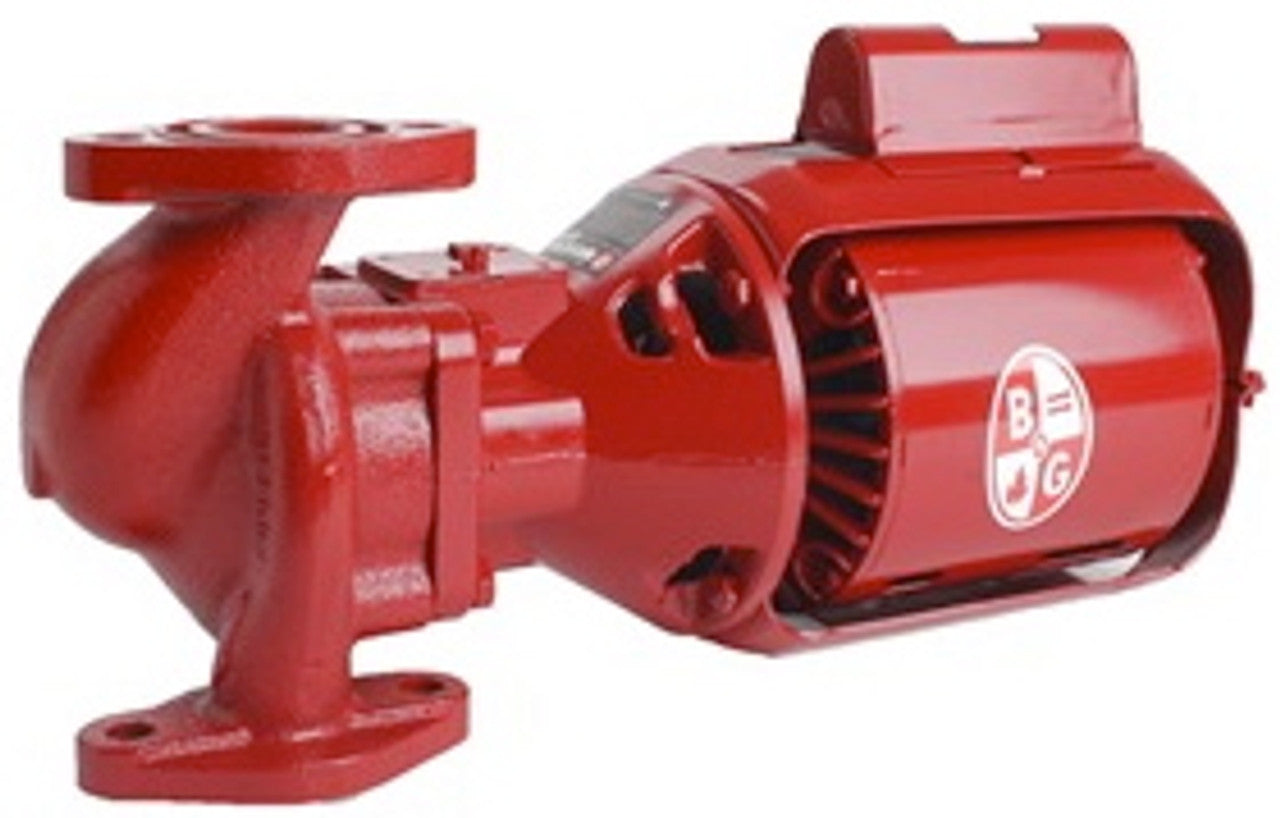

BELL & GOSSETT 102222 LD3 Circulator Pump

Product Description

The BELL & GOSSETT 102222-CL is a reliable circulator pump for hydronic heating and domestic hot water systems. This pump is part of the Series 100 which has over 10 million units installed. Its design allows for easy field service, making maintenance simple. The oil-lubricated motor is tailored for this pump, featuring a sturdy mounting to ensure quiet operation with reduced lubrication needs.

• 1/4 HP motor for heating and hot water circulation.
• Designed for easy repair with a three-piece, oil-lubricated structure.
• Quiet operation due to resilient motor mounting.

Product Highlights

This circulator pump is ideal for closed loop systems, providing efficient hot water circulation with minimal noise.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• MPN: 102222-CL

Technical Specifications

• Horse Power: 1/4 HP
• Voltage: 115V
• Phase: 1
• RPM: 1725
• Maximum Pressure: 125 psi
• Maximum Temperature: 225°F
• Connection Type: Flanged
• Series: LD3
• Material: Cast Iron
• Amperage: 3
• Frequency: 60 Hz
• Flow Rate: 109 gpm
