Bell & Gossett 101502 Flange Set 1 inches Stainless Steel (Pair) 101502LF

Product Description

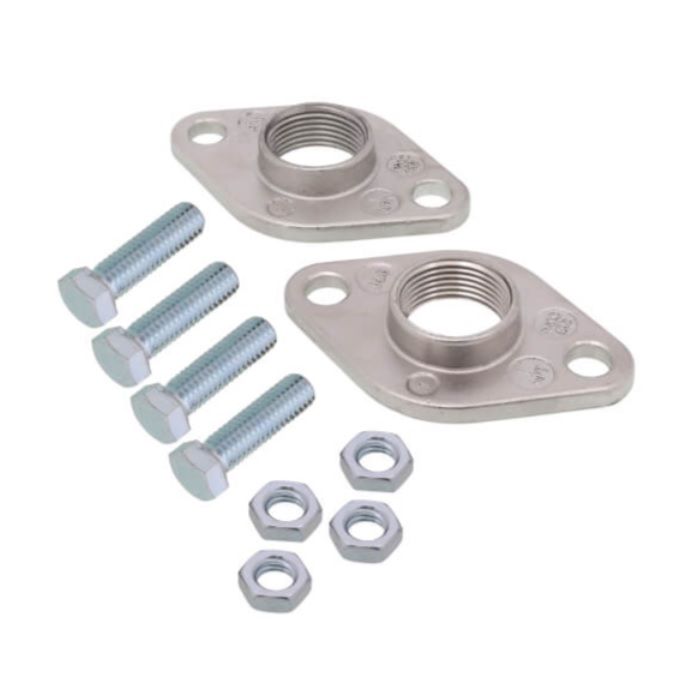

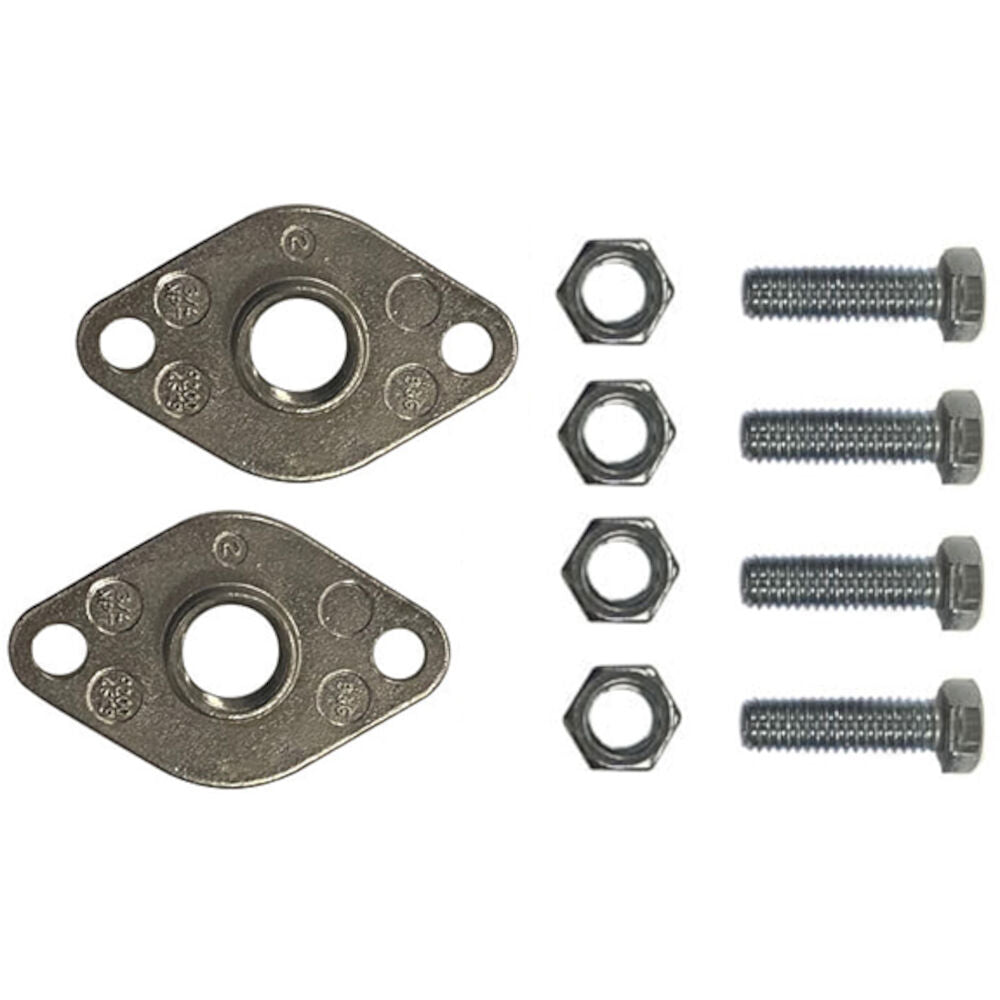

The BELL & GOSSETT 101502 is a flange set designed to connect pumps to piping systems, facilitating easy removal for maintenance or replacement. These standard flanges can be paired with isolation valves to eliminate the need to shut down media flow during service. Constructed from stainless steel, the set includes two flanges along with cap screws and nuts.

• Connects pumps to piping systems
• Facilitates pump removal for maintenance
• Can be paired with isolation valves

Product Highlights

Stainless steel flange set connects pumps to piping systems for easy maintenance. Includes two flanges, cap screws, and nuts.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Manufacturer Part Number: 101502
• Country of Origin: India

Technical Specifications

• Material: Stainless Steel
• MPN: 101502LF
• Manufacturer: Bell & Gossett
• Connection Type: FPT
• Fitting Size: 1 in
• Pressure Rating: 150 psi
• Suitable For Use With: 100, LR, SSF, NBF, PR, PL-30B, PL-36B, PL-55B, Ecocirc XL N 20-35, 36-45 and 55-45 Pump
• Temperature Rating: 250 deg F
• Product Type: Flange
• Brand: BELL & GOSSETT
• Manufacturer Part Number: 101502LF
• Compatible with Brand: Bell & Gossett
• Compatible with Series: 100B; Ecocirc XLB; NBF-12F/LW; NBF-22; NBF-33; NBF-36; PL-100; PL-30B; PL-36B; PRAB
• Compatible with Manufacturer Model Number: 102208LF 103252LF 103255LF 103260LF 103261LF 103357LF 103401LF 103418LF 106197LF 1BL003LF 1BL013LF 1BL068LF
• Flange Type: Standard
• Pipe Connection: 1 in
• Mounting Holes: 2
• Body Material: Stainless Steel
• Max. Operating Pressure: 150 psi
• Number of Flanges Included: 2
• Includes: Cap Screw Nut
• End Style: Thread
• Nominal Size: 1 in
