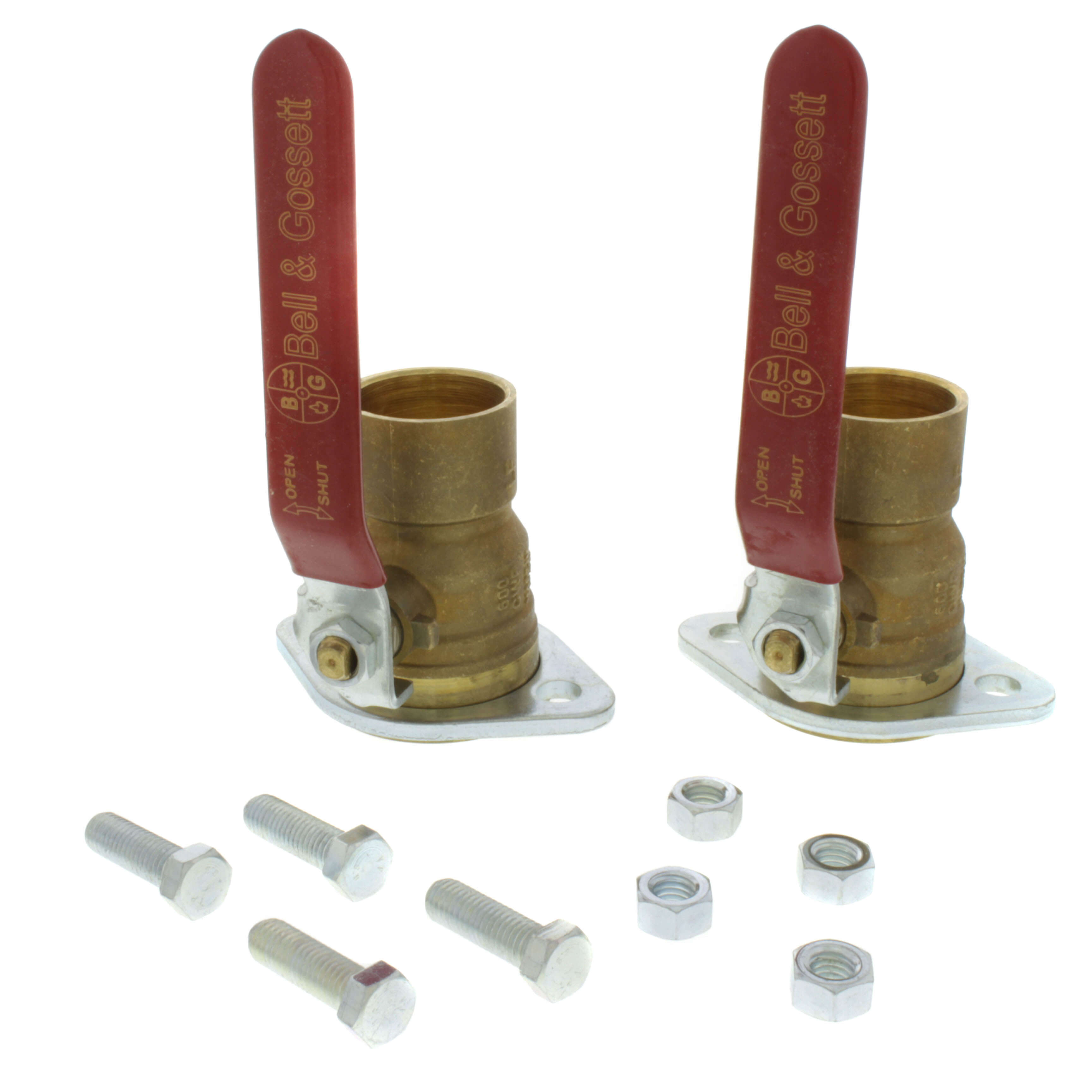

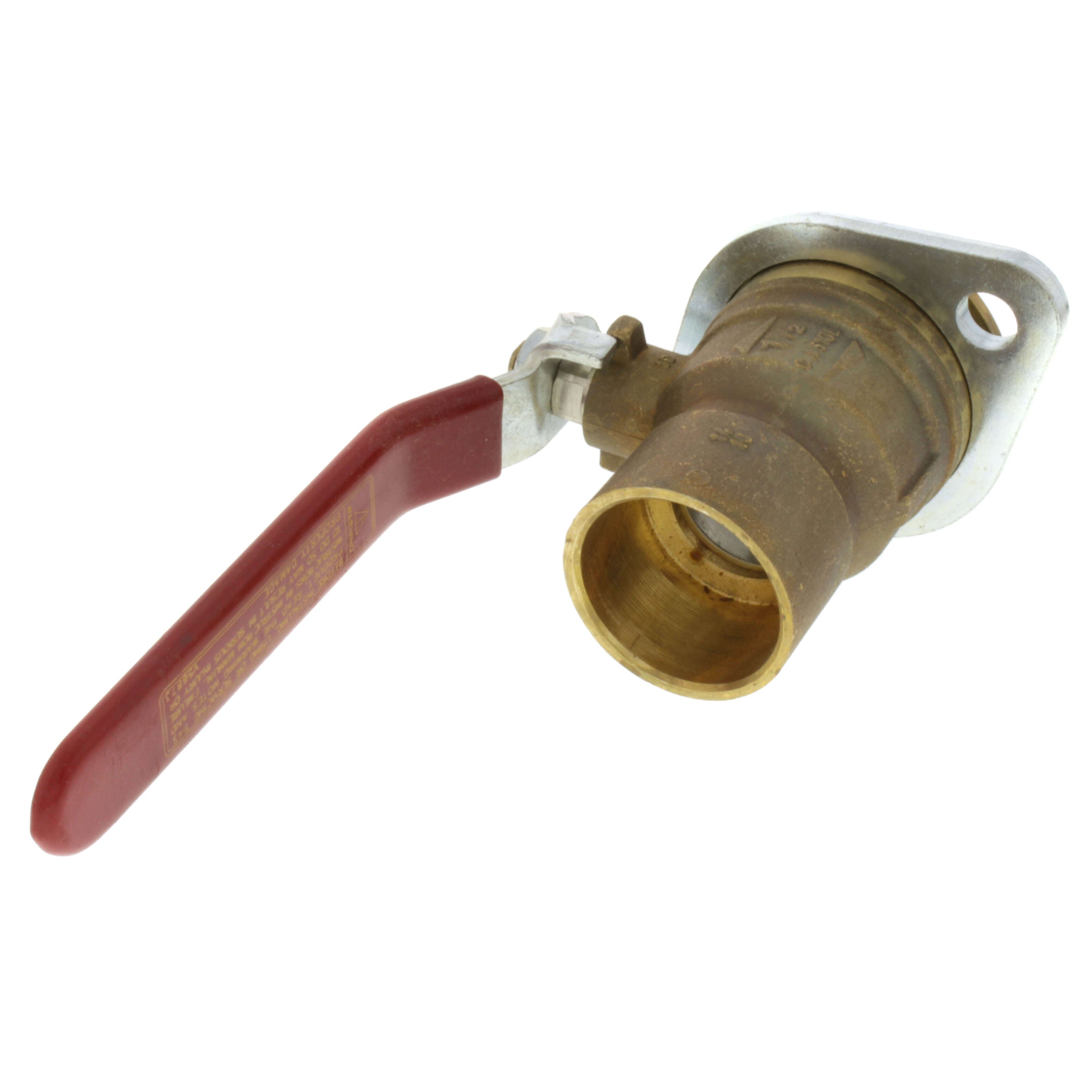

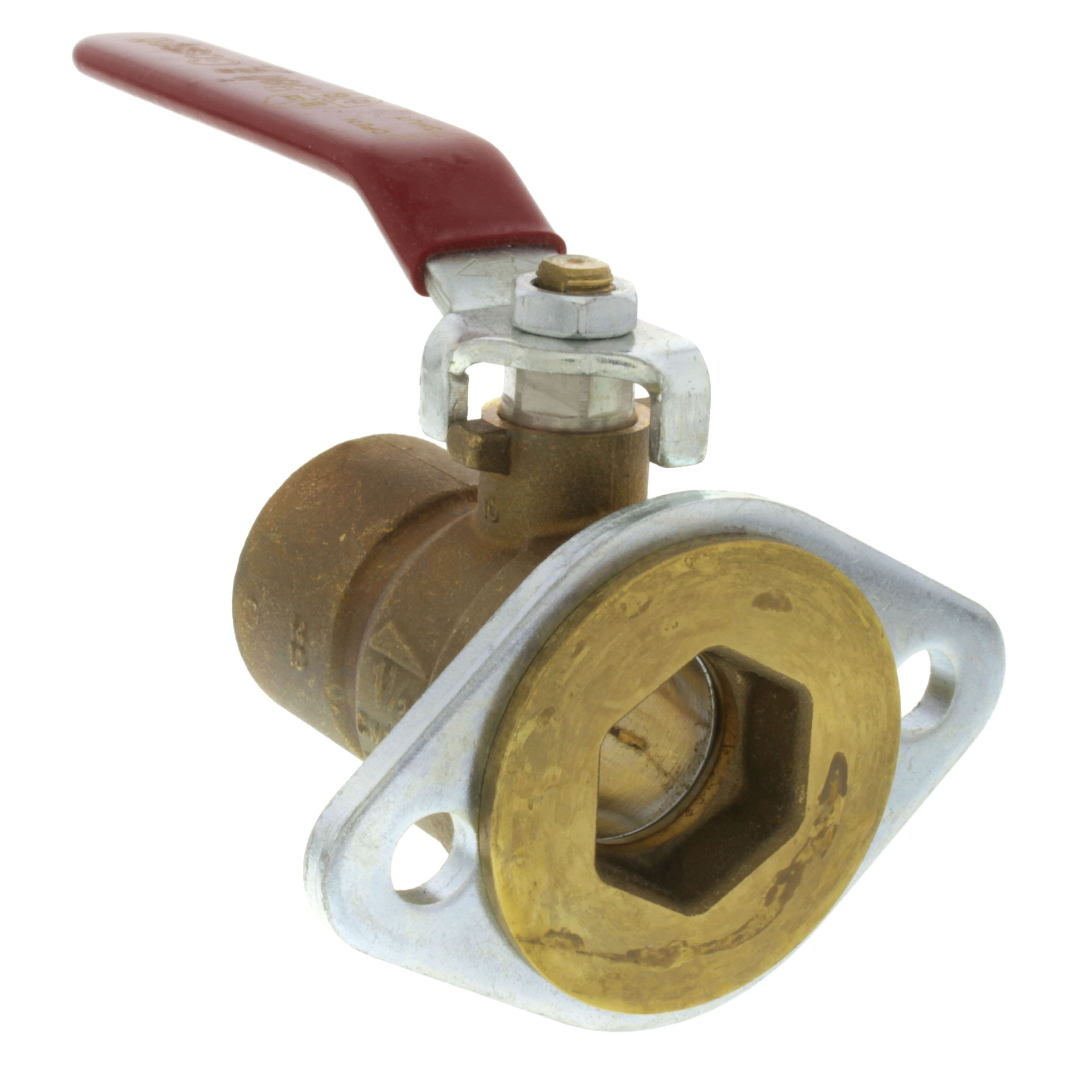

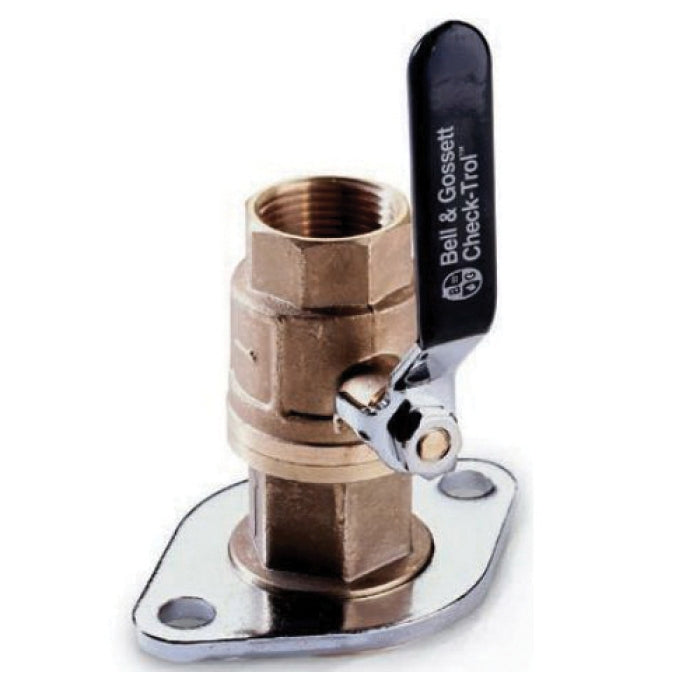

Bell & Gossett 101247LF Check-Trol CTFS-1 LEAD-FREE

Product Description

The Bell & Gossett 101247LF is a Check-Trol CTFS-1 LEAD-FREE isolation flow control flange. It integrates three functionalities in one device: an isolation valve, a flow control valve, and a companion flange. This versatility allows for easier installation in circulator systems.

• Combination of isolation and flow control features
• Minimized pressure drop during operation
• Lead-free construction for safe use

Product Highlights

The Check-Trol design prevents gravity circulation and allows for service without system drainage.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• MPN: 101247LF

Technical Specifications

• Nominal Size: 1-1/2 inches
• Pressure Rating: 150 psig
• Temperature Rating: 200 degrees F
• Body Material: Brass
• Actuator Type: Handle
• End Style: C
• Dimensions: 4-7/16 inches Flange, 3-35/64 inches Inlet to Outlet Length x 3 inches Top to Inlet Center Valve
• Softgoods Material: PTFE Packing Seat Ring
• Trim Material: Brass
