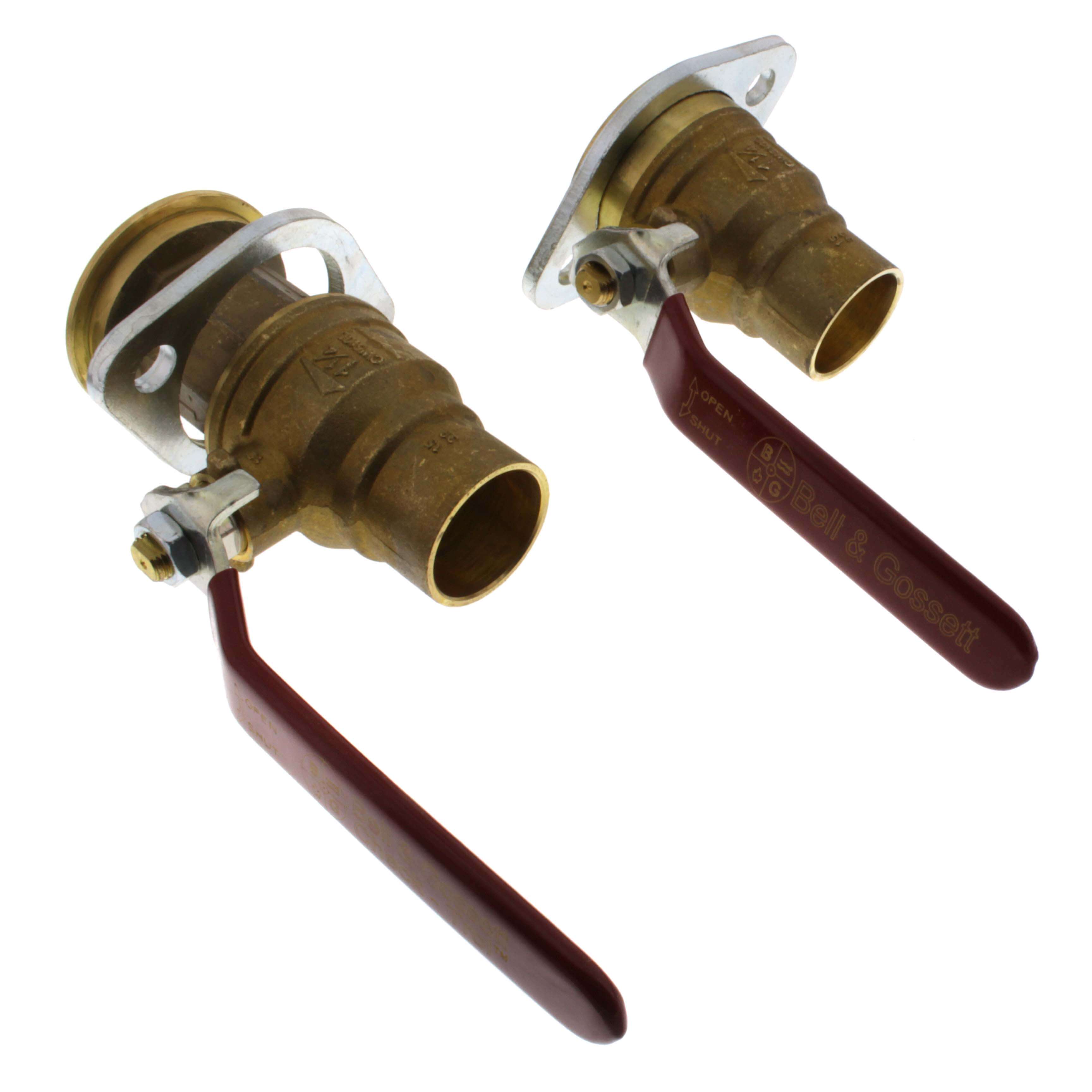

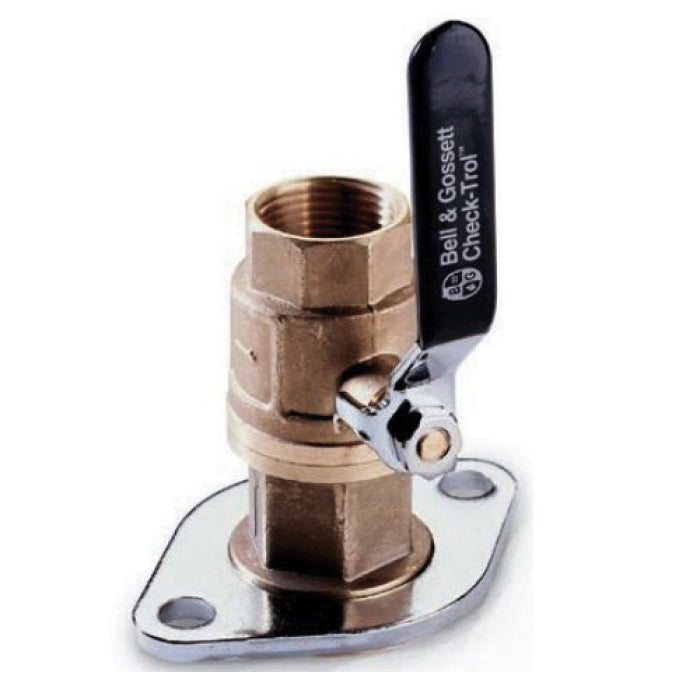

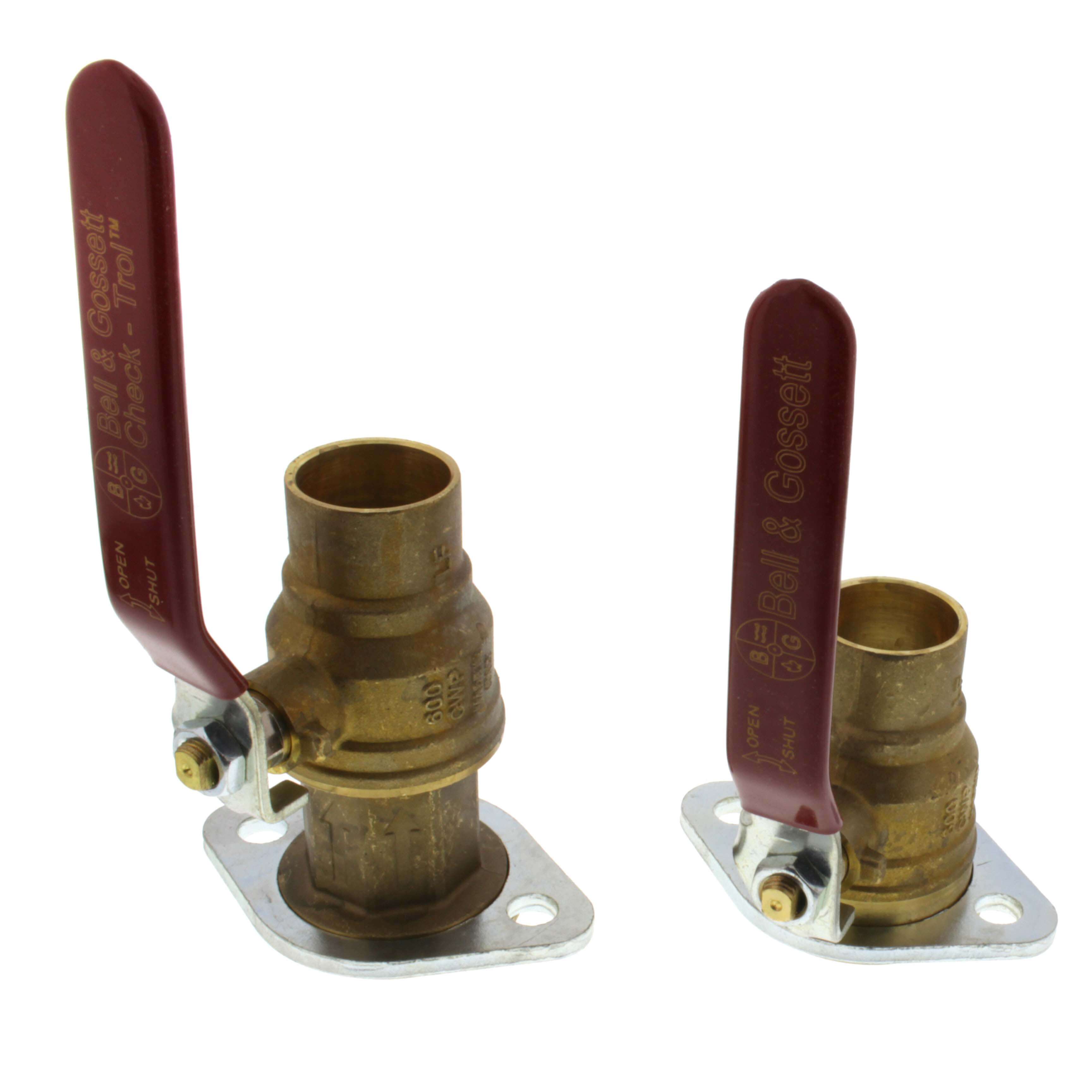

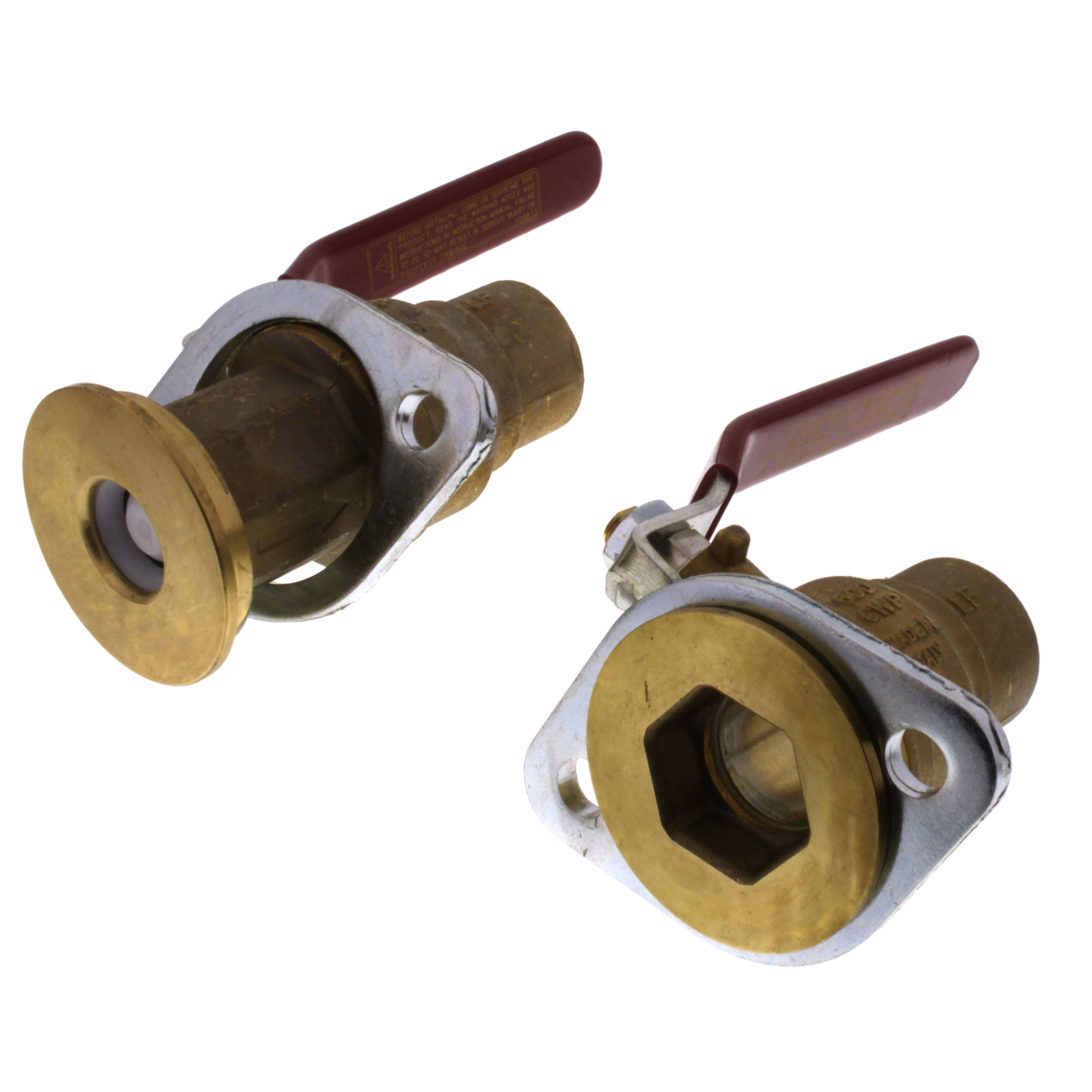

Bell & Gossett 101238LF Check-Trol 1-1/4in SWT x Flange LEAD-FREE

Product Description

The Bell & Gossett 101238LF is a Check-Trol isolation flow control flange designed for circulator installations. It combines a flow control valve, an isolation valve, and a companion flange in one unit. When installed on the discharge of the circulator, it minimizes pressure drop and prevents gravity circulation, addressing common issues found with internal check valves.

• Combines three functions in one unit: flow control, isolation, and companion flange.
• Prevents gravity circulation and allows for easy pump installation.
• Lead-free construction ensures compliance with safety standards.

Product Highlights

This flange is essential for maintaining the efficiency and integrity of hydronic systems, allowing for easy maintenance without draining the entire system.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• MPN: 101238LF

Technical Specifications

• Body Material: Brass
• Nominal Size: 1-1/4 inches
• End Style: C
• Pressure Rating: 150 psig
• Temperature Rating: 200 degrees Fahrenheit
• Actuator Type: Handle
• Soft Goods Material: PTFE Packing Seat Ring
• Finish: Polished Chrome
• Dimensions: 4-7/16 inches Flange, 3-25/64 inches Inlet to Outlet Length x 3 inches Top to Inlet Center Valve
