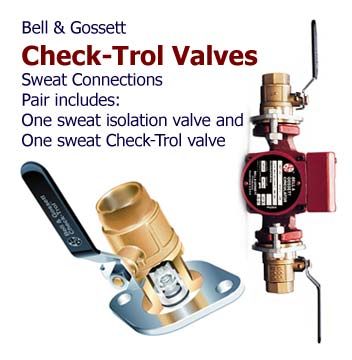

Bell & Gossett 101236 B&G 101236 - CTFS 3/4 Sweat Bronze Isolation & Check-Trol Valve

Product Description

Bell & Gossett 101236 is a combination of one isolation flange valve and one check-trol valve. It features a sweat connection and is designed to be mounted on pump flanges using capscrews and nuts. This isolation and check-trol valve assembly is suitable for use with several B&G circulators, including NRF, NBF, and SSF wet rotors, as well as Series PL-30, PL-36, and PL-55 pumps. It helps isolate the circulator from the system for easy maintenance and includes an internal spring check to prevent backflow due to gravity.

• Isolation valve allows quick removal of circulator.
• Prevents gravity circulation with internal check.
• Suitable for various B&G pump models.

Product Highlights

This valve assembly combines functionality and efficiency, making it an essential component for effective fluid control in HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 101236

Technical Specifications

• Model: CTFS-3/4
• Valve Size: 3/4
• Valve Connection: Sweat
• Piping Configuration: Straight
• Body Material: Bronze
• Valve Application: Water
• Max Pressure: 125 psi WOG
• Weight: 3.60
