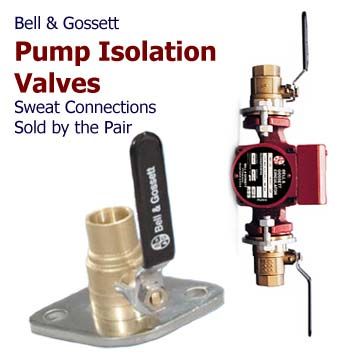

Bell & Gossett 101227LF Sweat Pump Isolation Flange (Pair) LEAD-FREE

Product Description

Bell & Gossett 101227LF is a sweat pump isolation flange designed for hydraulic systems. This product features a lead-free construction for safer water systems and is used to isolate pumps for maintenance without disturbing the entire system. It fits various Bell & Gossett circulators including the NRF and NBF wet rotors.

• Constructed with a lead-free brass body for safety.
• Allows easy maintenance by isolating the circulator.
• Suitable for high-pressure applications up to one hundred fifty psig.

Product Highlights

Isolation flanges combine a ball valve and a companion flange, facilitating quick service without draining the system.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• Material: Brass

Technical Specifications

• Nominal Size: 1 inch
• Pressure Rating: 150 psig
• Temperature Rating: 200 degrees F
• Dimensions: 4-7/16 inches flange, 3 inches inlet to outlet length, 2-5/32 inches top to inlet center valve
• Softgoods Material: PTFE packing seat ring
• End Style: C
• Finish: Polished chrome
