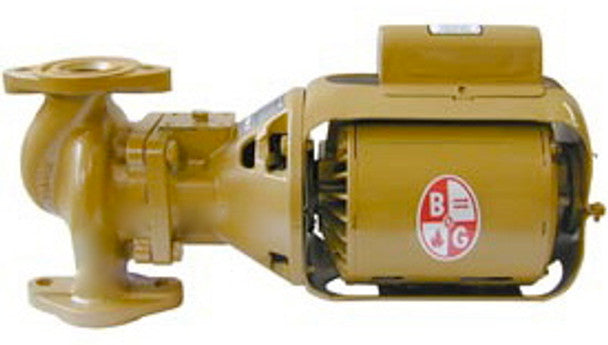

BELL & GOSSETT 100-BNFI(106197LF) Series 100 Circulator, Oil Lubricated, 115 Volts, 1/12 HP, Replacement MPN

Product Description

The Bell & Gossett 100-BNFI(106197LF) is a series 100 circulator designed for efficient operation in various plumbing applications. This oil-lubricated circulator operates at 115 volts and provides 1/12 horsepower, making it suitable for residential and commercial use where reliable circulation is required.

• Bronze construction for durability.
• Operates at 1725 RPM with a maximum working pressure of 125 psig.
• Compatible with flange sizes of three-quarters, one, one and a-quarter, and one and a-half inches.

Product Highlights

This circulator features built-in overload protection and operates at a frequency of 60 Hertz. The carbon steel shaft ensures longevity and resistance to wear.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• Part Number: 574956

Technical Specifications

• Motor Power: 1/12 HP
• Voltage: 115 volts
• RPM: 1725
• Flange Sizes Compatible: 3/4, 1, 1-1/4, 1-1/2 inches
• Max Working Pressure: 125 psig
• Max Operating Temperature (Special Seal): 250 degrees Fahrenheit
• Max Operating Temperature (Standard Seal): 225 degrees Fahrenheit
• Approximate Shipping Weight: 21 pounds
