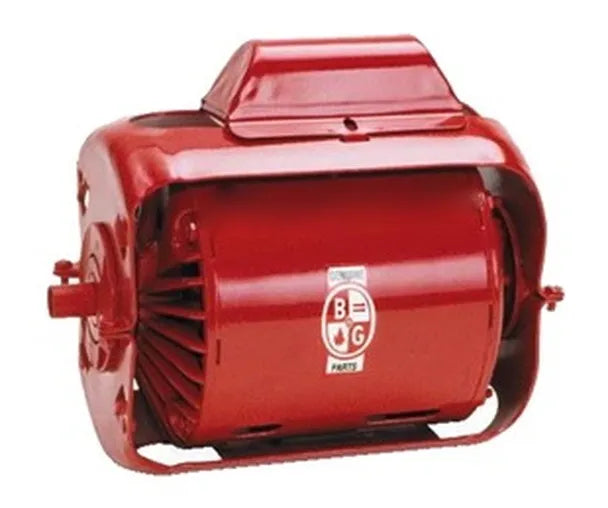

Bell and Gossett BG 111061 AC motor 1/6 HP (115 V single phase) BG-111061

Product Description

Bell and Gossett BG 111061 is a 1/6 HP AC motor (model M10711) rated 115 V single phase with a nominal speed of 1725 RPM. The unit includes a 5 in bracket and is compatible with bearing assemblies 189120, 189122, and 189165. It is designed for use with Bell and Gossett 2 in and HV series booster pumps, including Series HV 1-1/2 in and 2 in pumps, as a replacement motor.

• 1/6 HP (model M10711) with 115 V single-phase input and 1725 RPM speed
• Includes 5 in bracket; compatible with bearing assemblies 189120, 189122, 189165
• Designed for Bell and Gossett 2 in and HV series booster pumps (Series HV 1-1/2 in and 2 in)

Product Highlights

1/6 HP 115 V single-phase AC motor, 1725 RPM; includes 5 in bracket; fits Bell and Gossett 2 in and HV series booster pumps.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Manufacturer Part Number: BG 111061

Technical Specifications

• Brand: Bell and Gossett
• Manufacturer Part Number: BG 111061
• Alternate Part Number: BG-111061
• SKU: CS46270
• UPC/EAN: 683328110615
• Model: M10711
• Horsepower: 1/6 HP
• Input Voltage: 115 V
• Phase: Single phase
• Speed: 1725 RPM
• Bracket Included: 5 in bracket (included)
• Compatible Bearing Assemblies: 189120, 189122, 189165
• Application: Bell and Gossett 2 in and HV series booster pumps (Series HV 1-1/2 in and 2 in)
