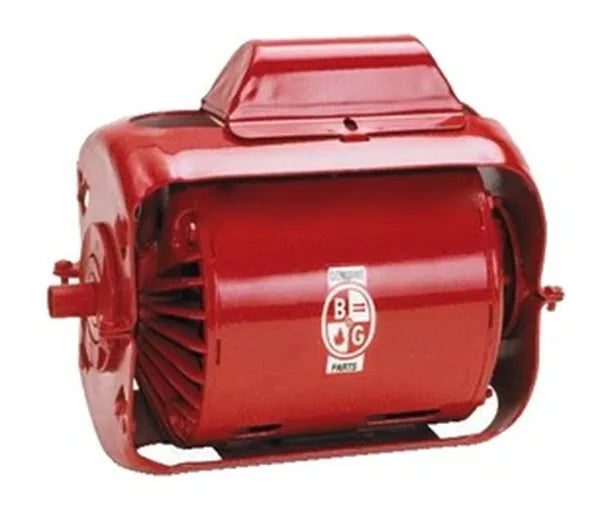

Bell and Gossett BG 111034 AC motor 1/12 HP (Series 100) BG-111034

Product Description

The Bell and Gossett BG 111034 is an AC motor rated 1/12 HP designed for Series 100 booster pumps. It operates at 115 volts, single phase (60 Hz) with a nominal speed of 1725 RPM. The Series 100 three-piece oil-lubricated design houses bearings, shaft, and seal in a single serviceable assembly to facilitate field repair. Resilient mounting reduces vibration during pump operation and supports maintenance in industrial and commercial pump systems.

• 1/12 HP AC motor; 115 V, single phase, 60 Hz; nominal speed 1725 RPM
• Series 100 three-piece oil-lubricated design with bearings, shaft, and seal in a serviceable assembly
• Resilient mounting to reduce vibration; designed for Series 100 booster pump replacement

Product Highlights

Field-serviceable 1/12 HP 115 V AC motor for Series 100 booster pumps with a three-piece oil-lubricated design and 1725 RPM.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Manufacturer Part Number: BG 111034

Technical Specifications

• Brand: Bell and Gossett
• Manufacturer Part Number: BG 111034
• Alternate Part Number: BG-111034
• SKU: CS150638
• UPC/EAN: 683328110349
• Motor Type: AC motor
• Power: 1/12 HP
• Input Voltage: 115 V
• Phase: Single phase
• Frequency: 60 Hz
• Speed: 1725 RPM
• Series: Series 100
• Design: Three-piece oil-lubricated
• Serviceable Assembly: Bearings, shaft and seal housed in single serviceable assembly
• Mounting Type: Resilient mounting
• Application: Designed for Series 100 booster pumps
