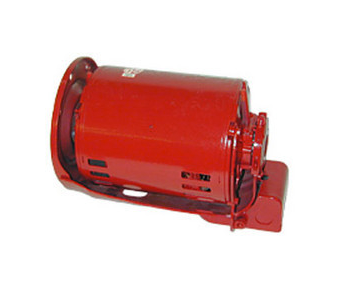

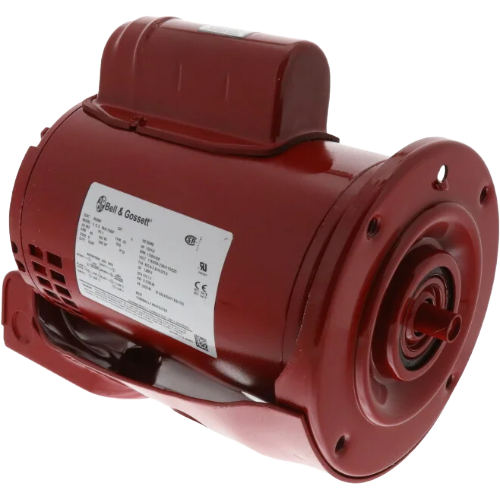

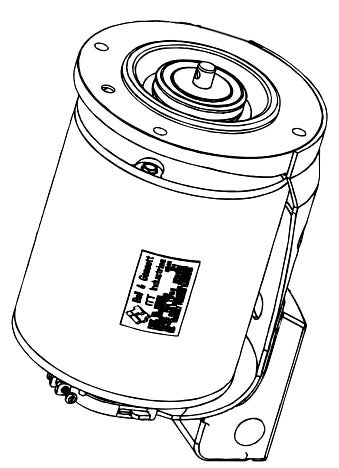

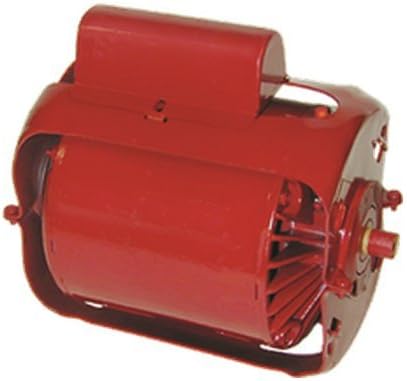

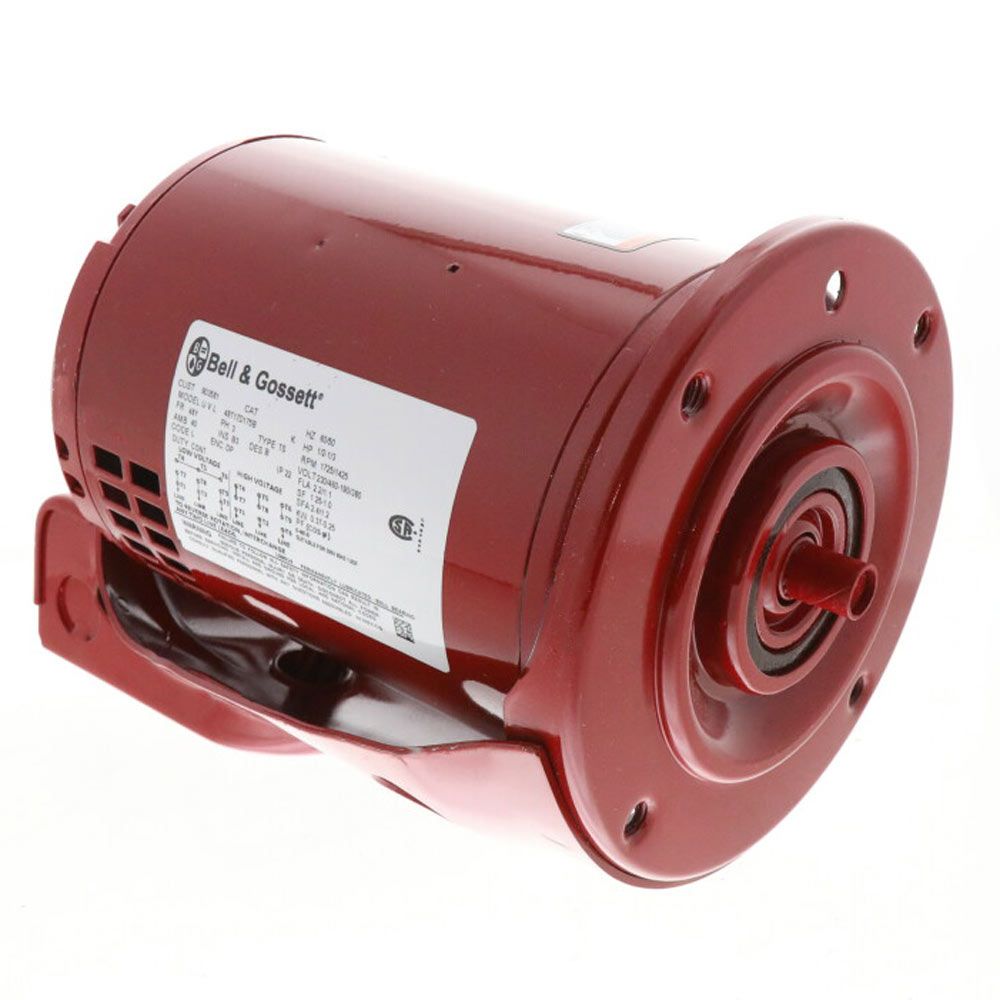

Bell and Gossett 169229 Circulator Pump Power Pack 1/2 HP (Power Pack) BG1105

Product Description

Bell and Gossett 169229 is a circulator pump power pack motor rated 1/2 HP for use on circulator or centrifugal pumps. It operates on 208-230/460 V AC three-phase power at 1725 RPM and is configured for 60 Hz operation. The motor is compatible with multiple Series 60 pump models and serves as a replacement motor for pump and circulator assemblies used in hydronic and pumping systems.

• Voltage: 208-230/460 V AC, three-phase; Frequency: 60 Hz
• Power: 1/2 HP; Speed: 1725 RPM; ball bearing motor design
• Used on circulator or centrifugal pumps; compatible with B603S/T, 603S/T, 606S/T, 608S/T, 610S/T, 621S/T, MF 60, HS-300G-PL

Product Highlights

1/2 HP, 1725 RPM circulator pump power pack motor for 208-230/460 V AC three-phase systems

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Manufacturer Part Number: 169229
• Country of Origin: United States

Technical Specifications

• Brand: Bell and Gossett
• Manufacturer Part Number: 169229
• Alternate Part Number: BG1105
• Part Number DP: 903581
• Product Name: Circulator Pump Power Pack (Ball Bearing Motor)
• Item: Power Pack
• Category: Pumps & Pump Controls
• Voltage: 208-230/460 V AC
• Phase: 3-phase
• Frequency: 60 Hz
• Horsepower: 1/2 HP
• Speed: 1725 RPM
• Used On Item: Circulator or centrifugal pump
• Compatible Models: B603S, B603T, 603S, 603T, 606S, 606T, B606S, B606T, 608S, 608T, B608S, B608T, 610S, 610T, B610S, B610T, 621S, 621T, B621S, B621T, MF 60, HS-300G-PL
• UPC: 683328692295
• Enclosure: ODP (Open drip proof)
• Frame Size: 48Y
• Casting Number: P58586
• Manufacturer: Bell and Gossett
• Weight: 19.99 lb
• Dimensions: 12.45" x 15.1" x 11.3"
