Bell And Gossett 117415LF CB-3/4 Circuit Setter 3/4 in

Product Description

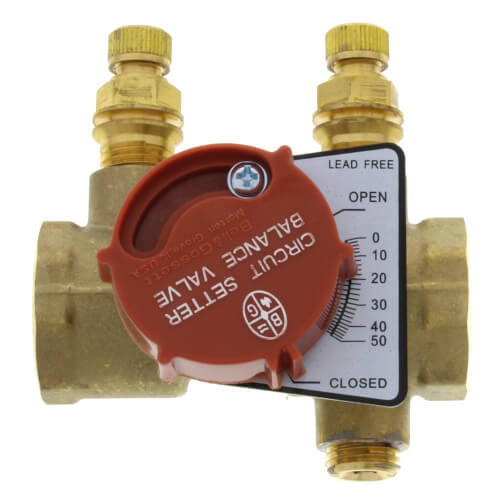

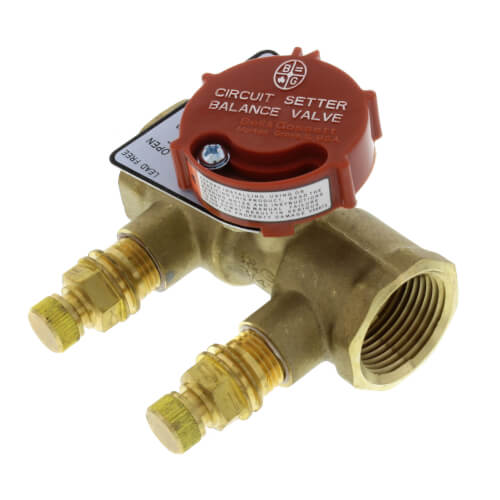

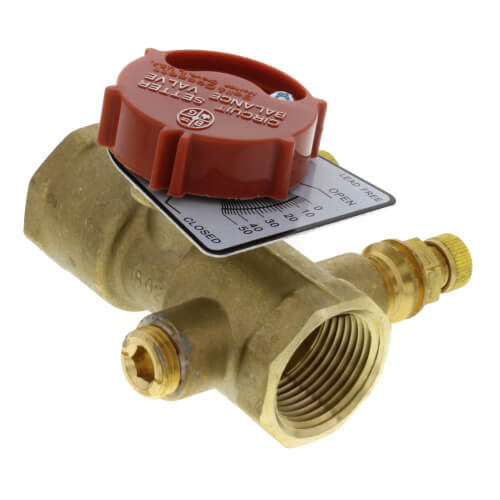

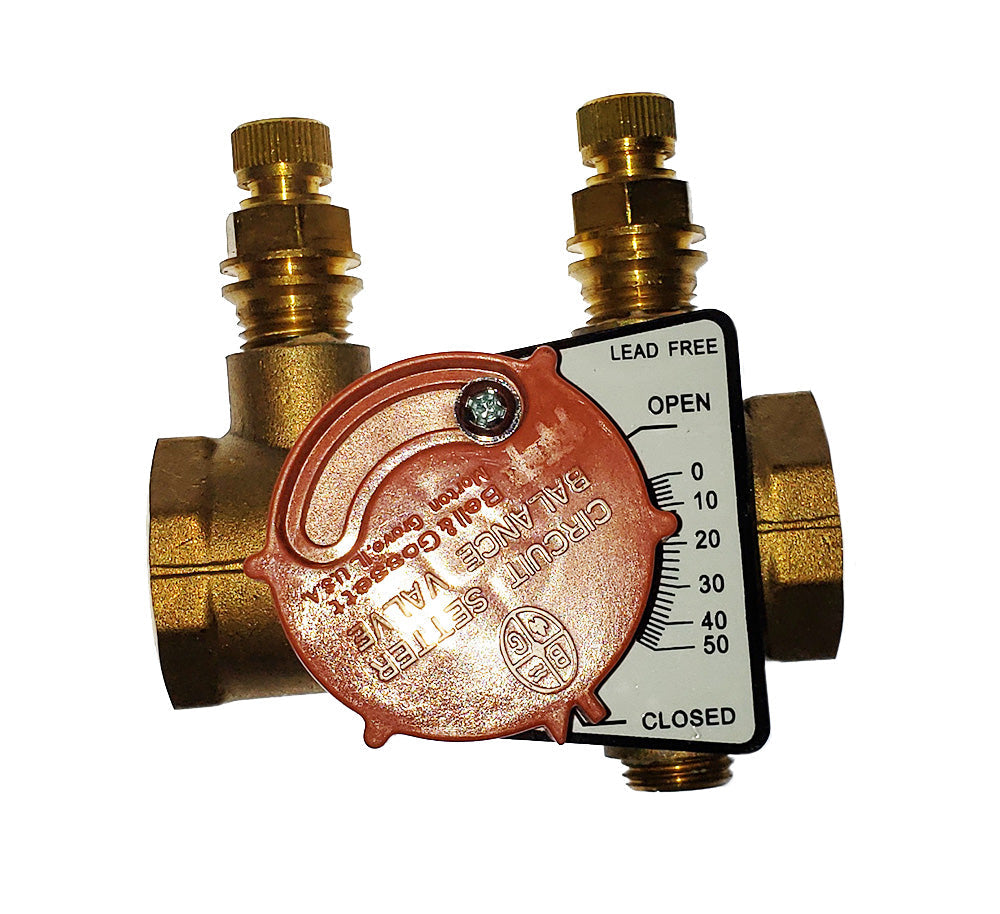

The BELL AND GOSSETT 117415LF CB-3/4 Circuit Setter is a calibrated balance valve with a nominal size of 3/4 IN and NPT connection. Designed as a flow meter and shut-off valve, it ensures optimal system flow balance. It has a pressure rating of 400 PSIG at 250 DEG F and a bronze body material.

• Calibrated Balance Valve
• Lead Free
• Accurate fluid flow control

Product Highlights

This valve provides flow balance, flow metering, and shut-off capabilities, optimizing HVAC system performance while saving energy and increasing comfort.

Product Information

Standard Information

• Brand: BELL AND GOSSETT
• Manufacturer Part Number: 117415LF
• Country of Origin: USA

Technical Specifications

• Series/Model: Model CB-3/4LF
• Nominal Size: 3/4 IN
• Connection Type: NPT
• Pressure Rating: 400 PSIG At 250 DEG F
• Body Material: Bronze
• Trim Material: Brass Ball
• Seat Material: Glass And Carbon Filled TFE Ring
• Industry Standards: CSA Certified, Vermont S152 , Maryland House Bill 372 [statute 12-605] Certified, ANSI/NSF-61/372 Annex G Compliant
• Width: 3.06 IN
• Height: 3.12 IN
• Lead Free: Yes
• Flow Co-Efficient (Cv): 1.6
• Temperature Rating: -4 to 250 deg F
• Inlet to Outlet Length: 3.06 in
• Softgoods Material: Glass/Carbon Filled TFE Seat Ring
• ASTM: ASTM B-283
• End Connection 1: NPT
• End Connection 2: NPT
• End Connections: NPT x NPT
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 3.06 in
• Maximum Temperature: 250
• Valve Size: 3/4 in
