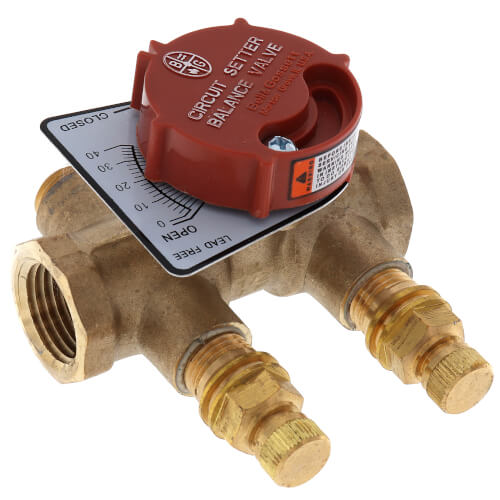

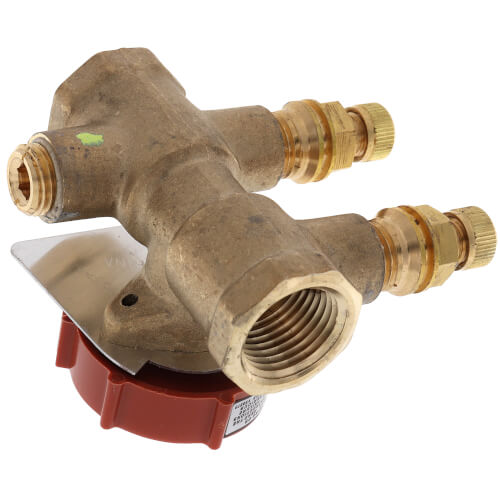

Bell And Gossett 117414LF CB-1/2 Scrd Circuit Setter 1/2 in

Product Description

The BELL AND GOSSETT 117414LF CB-1/2 Scrd Circuit Setter is a calibrated balance valve with a nominal size of 1/2 IN and NPT connection. Designed as a flow meter and shut-off valve, it provides pre-set proportional balance for optimal system flow. It is suitable for potable water and HVAC systems.

• Calibrated Balance Valve
• Lead Free
• Accurate fluid flow control

Product Highlights

This valve provides flow balance, flow metering, and shut-off capabilities, ensuring efficient operation and water conservation in various systems.

Product Information

Standard Information

• Brand: BELL AND GOSSETT
• Manufacturer Part Number: 117414LF

Technical Specifications

• Series/Model: Model CB-1/2LF
• Nominal Size: 1/2 IN
• Connection Type: NPT
• Pressure Rating: 400 PSIG At 250 DEG F
• Body Material: Bronze
• Trim Material: Brass Ball
• Seat Material: Glass And Carbon Filled TFE Ring
• Industry Standards: CSA Certified, Vermont S152 , Maryland House Bill 372 [statute 12-605] Certified, ANSI/NSF-61/372 Annex G Compliant
• Width: 2.94 IN
• Height: 3.02 IN
• Lead Free: Yes
• Flow Co-Efficient (Cv): 1.6
• End Style: NPT
• Softgoods Material: Glass/Carbon Filled TFE Seat Ring
• Temperature Rating: -4 to 250 deg F
• Inlet to Outlet Length: 2.94 in
