Bell And Gossett 117412 B-G CB-1/2SLF SWT Circuit Setter 1/2 IN

Product Description

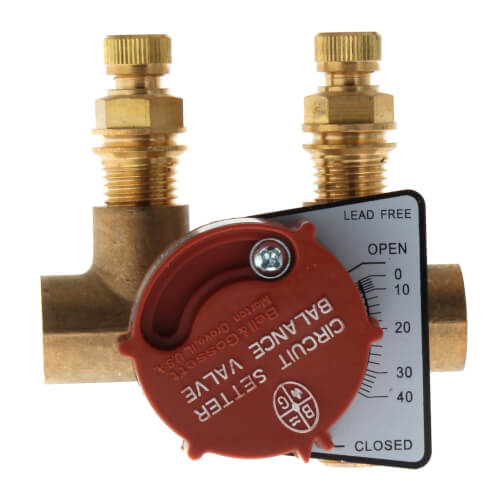

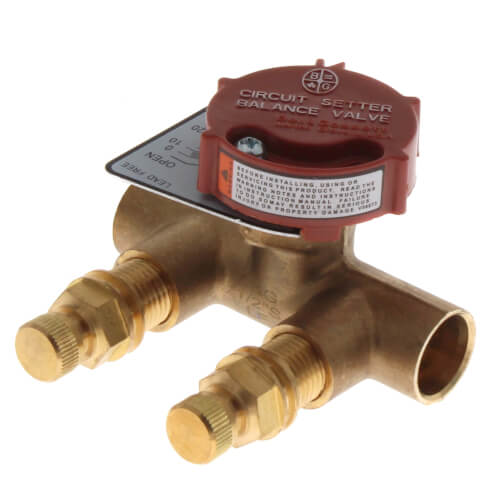

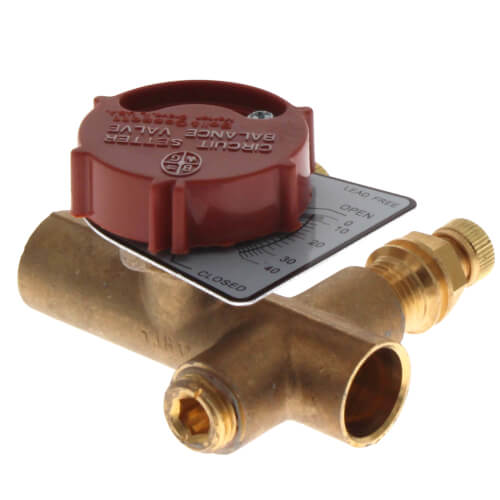

The BELL AND GOSSETT 117412 B-G CB-1/2SLF SWT Circuit Setter is a calibrated balance valve with a nominal size of 1/2 IN and a sweat connection type. Designed as a flow meter and drip-tight service valve, it provides pre-set proportional balance for optimum system flow. It features a bronze body and a brass ball trim material.

• Calibrated Balance Valve
• Lead Free
• Accurate fluid flow control

Product Highlights

This valve is a three-function precision instrument providing flow balance, flow metering, and shut-off. It assures optimum system flow balance at minimum operating horsepower.

Product Information

Standard Information

• Brand: BELL AND GOSSETT
• Manufacturer Part Number: 117412

Technical Specifications

• Series/Model: Model CB-1/2SLF
• Nominal Size: 1/2 IN
• Connection Type: Sweat
• Pressure Rating: 200 PSIG At 250 DEG F
• Body Material: Bronze
• Trim Material: Brass Ball
• Seat Material: Glass And Carbon Filled TFE Ring
• Industry Standards: CSA Certified, Vermont S152 , Maryland House Bill 372 [statute 12-605] Certified, ANSI/NSF-61/372 Annex G Compliant
• Width: 2.91 IN
• Height: 2.85 IN
• Lead Free: YES
• Flow Co-Efficient (Cv): 1.9
• Inlet to Outlet Length: 2.91 in
• Softgoods Material: Glass/Carbon Filled TFE Seat Ring
• Temperature Rating: -4 to 250 deg F
